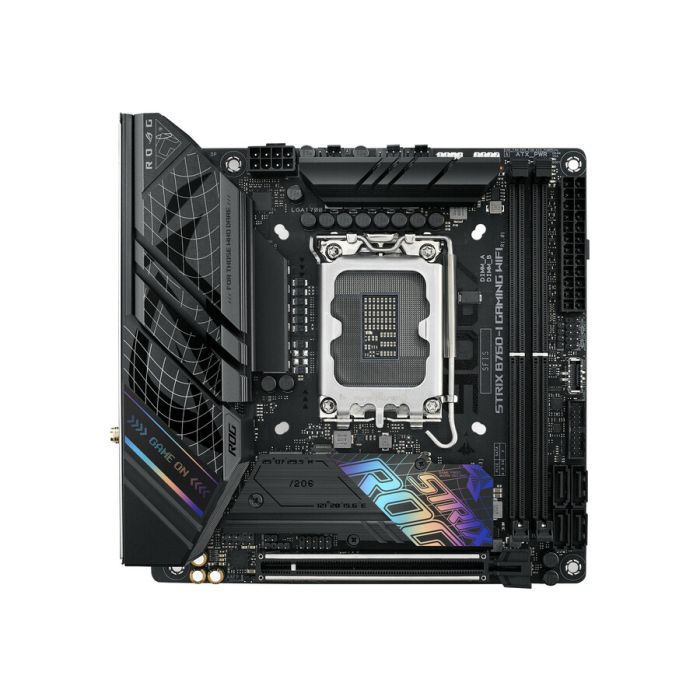

Let your rig run wild with the ROG Strix B760-I, a feisty foundation for your next SFF build. Boasting hyperfast DDR5 memory, low-latency WiFi 6E networking, and a future-ready PCIe 5.0 slot, it sets you up for savage speeds, all while giving you incredible 13th Gen support thanks to its powerful VRM and thermal solution.
M.2 Q-LATCH
The innovative Q-Latch makes it easy to install or remove an SSD from an M.2 slot. The design employs a simple locking mechanism to secure the drive, eliminating the need for a traditional screw.
Q-LED
Four onboard LEDs indicate power status and identify problems with CPU, memory, graphics card, or boot device for quick diagnosis.
PRE-MOUNTED I/O SHIELD
The patented ROG I/O shield is finished in sleek matte black and comes pre-mounted, which further simplifies the process of installing the motherboard.
ALL-ROUND PERFORMANCE
Bulking up where it counts, the ROG Strix B760-I bears an octet of power stages mounted with a hefty cooling array to give you all the fury of Raptor Lake. To pack on the FPS, the PCIe 5.0 slot is primed for the mightiest graphics card you can fit your chassis, and the memory slots can handle dizzying DDR5 speeds.
POWER ARCHITECTURE
8 + 1 power stages each rated to 80A deliver ample current to drive the most powerful Intel 13th Gen processors through any workload with ease.
ALLOY CHOKES AND DURABLE CAPACITORS
High-end chokes and durable capacitors are engineered to resist extreme temperatures, enabling performance that exceeds industry standards.
EIGHT-LAYER PCB
A multi-layered printed circuit board design quickly dissipates heat around the voltage regulators to improve overall system stability.
DDR5 DOMINATION
ROG has a long legacy of flexing the fastest memory performance, and DDR5 is no outlier. Thanks to improved signal routing, now enthusiast-grade kits have been driven far beyond the 7 GT/s mark on the Strix B760-I, and who knows how far future DIMMs can go? Seasoned veterans can test their mettle by tinkering with the extensive array of tuning options in the UEFI.
VRM HEATSINK ARRAY
Covering the power solution are two thick heatsinks with strategic airflow channels for increased heat dissipation while powering high-performance Intel 13th Gen processors.
WIFI 6E
Onboard WiFi 6E technology takes advantage of newly available spectrum in the 6 GHz band to provide up to seven 160 MHz channels for ultrafast throughput and better performance in dense wireless environments.
Intel 2.5G Ethernet
Low-latency gaming, speedy file transfers, and high-resolution video streaming are among the many perks of onboard Intel® 2.5 Gbps Ethernet.
USB
The Strix B760-I comes loaded with multiple high-speed USB options. Five of the rear I/O ports are USB 3.2-compliant, with the fastest being a USB 3.2 Gen 2x2 Type-C® port for data transfers up to 20 Gbps. A chassis port can also receive turbo treatment via the USB Gen 3.2 Gen 2 front-panel connector.
