Model |

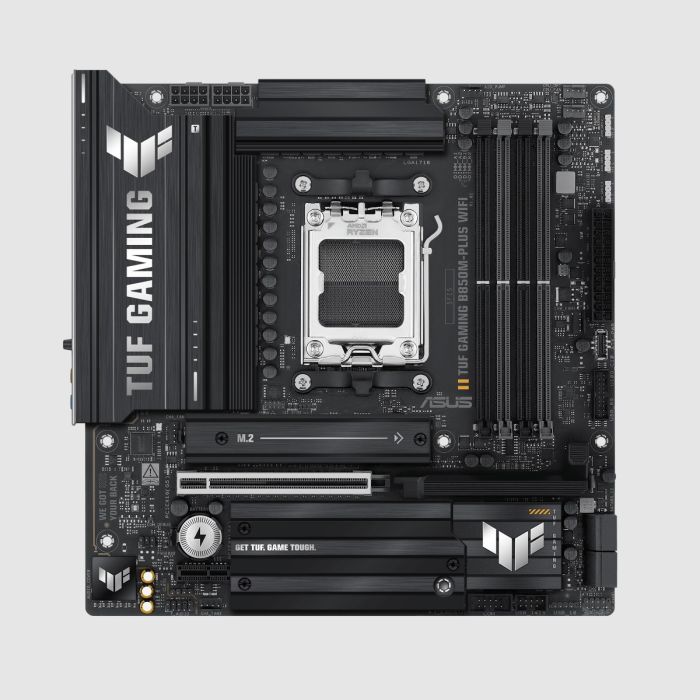

TUF GAMING B850M-PLUS WIFI |
CPU |
AMD Socket AM5 for AMD Ryzenâ„¢ 9000 & 8000 & 7000 Series Desktop Processors |
Chipset |
AMD B850 Chipset |
Memory |
4 x DIMM slots, max. 256GB, DDR5 Supports up to 8000+MT/s (OC) with Ryzenâ„¢ 9000 & 8000 & 7000 Series Processors ECC and Non-ECC Un-buffered DIMM Dual channel memory architecture Supports AMD Extended Profiles for Overclocking (EXPOâ„¢) ASUS Enhanced Memory Profile (AEMP) Supports On-Die ECC function (Non-ECC, un-buffered DDR5) |
Graphics |
1 x DisplayPort (Supports max. 8K@30Hz as specified in DisplayPort 1.4) 1 x HDMIâ„¢ port (Supports 4K@60Hz as specified in HDMI 2.1) |
Expansion Slots |
AMD Ryzenâ„¢ 9000 & 7000 Series: 1 x PCIe 5.0 x16 slot (supports x16 mode) AMD Ryzenâ„¢ 8000 Series: 1 x PCIe 4.0 x16 slot (supports x8/x4 mode) AMD B850 Chipset: 1 x PCIe 4.0 x1 slot |
Storage |
Total: Supports 3 x M.2 slots and 4 x SATA 6Gb/s ports AMD Ryzenâ„¢ 9000 & 7000 Series: M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode), M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) AMD Ryzenâ„¢ 8000 Series: M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode), M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4/x2 mode) AMD B850 Chipset: M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode), 4 x SATA 6Gb/s ports |
Ethernet |
1 x Realtek 2.5Gb Ethernet TUF LANGuard |
Wireless & Bluetooth |
Wi-Fi 6E (802.11ax) 2x2 Supports 2.4/5/6GHz frequency band Bluetooth® v5.3 |
USB |
Rear: 1 x USB 20Gbps (Type-C®), 3 x USB 10Gbps (Type-A), 4 x USB 5Gbps (Type-A), 4 x USB 2.0 (Type-A) Front: 1 x USB 10Gbps (Type-C®), 1 x USB 5Gbps header (2 ports), 2 x USB 2.0 headers (3 ports) USB Type-C® power delivery: max. 5V/3A |
Audio |
Realtek ALC1220P 7.1 Surround Sound HD Audio CODEC Impedance sense for front/rear headphone outputs Internal audio Amplifier Jack-detection, Multi-streaming, Front Panel Jack-retasking 120 dB SNR stereo playback, 113 dB SNR recording (Line-in) Up to 32-Bit/192 kHz playback (not for 7.1 surround) Audio Shielding, Premium capacitors, Dedicated PCB layers, Audio cover, De-pop circuit |
Back Panel I/O Ports |
1 x USB 20Gbps (Type-C®) 3 x USB 10Gbps (Type-A) 4 x USB 5Gbps (Type-A) 4 x USB 2.0 (Type-A) 1 x DisplayPort 1 x HDMI™ port 1 x Wi-Fi module 1 x Realtek 2.5Gb Ethernet 5 x Audio jacks 1 x BIOS FlashBack™ button |
Internal I/O Connectors |
Fan & Cooling: 1 x 4-pin CPU Fan, 1 x 4-pin CPU OPT Fan, 1 x 4-pin AIO Pump, 3 x 4-pin Chassis Fan Power: 1 x 24-pin Main Power, 2 x 8-pin +12V CPU Power Storage: 3 x M.2 slots (Key M), 4 x SATA 6Gb/s USB: 1 x USB 10Gbps (Type-C®), 1 x USB 5Gbps header (2 ports), 2 x USB 2.0 headers (3 ports) Miscellaneous: 3 x Addressable Gen 2, 1 x Clear CMOS, 1 x Chassis Intrusion, 1 x COM Port, 1 x Front Panel Audio, 1 x 10-1 pin Front Panel System |
Special Features |
ASUS TUF PROTECTION: DIGI+ VRM, ESD Guards, TUF LANGuard, Overvoltage protection, SafeSlot, Stainless-steel back I/O ASUS Q-Design: M.2 Q-Latch, PCIe Slot Q-Release, Q-Antenna, Q-Dashboard, Q-DIMM, Q-LED ASUS Thermal Solution: M.2 heatsink, VRM heatsink ASUS EZ DIY: BIOS FlashBackâ„¢ button/LED, ProCool, Pre-mounted I/O shield, SafeDIMM Aura Sync: Addressable Gen2 headers |
Software Features |
ASUS Exclusive: Armoury Crate (Aura Creator, Aura Sync, Fan Xpert 4, Power Saving), ASUS DriverHub, ASUS GlideX, TurboV Core, TUF GAMING CPU-Z, DTS Audio Processing Adobe Creative Cloud (Free Trial), Norton 360 for Gamers (60 Days Free Trial), WinRAR (40 Days Free Trial) |
UEFI BIOS |
ASUS EZ DIY (CrashFree BIOS 3, EZ Flash 3, UEFI BIOS EZ Mode, MyHotkey) |
BIOS |
256 Mb Flash ROM, UEFI AMI BIOS |
Manageability |
WOL by PME, PXE |
Accessories |
Cables: 2 x SATA 6Gb/s Miscellaneous: 1 x ASUS WiFi Q-Antenna, 1 x TUF GAMING sticker, 2 x M.2 rubber packages, 1 x Screw package for M.2 SSD |
Documentation |
1 x Quick start guide |
Operating System |
Windows 11, Windows 10 64-bit |
Form Factor |
micro-ATX (9.6 inch x 9.6 inch / 24.4 cm x 24.4 cm) |
