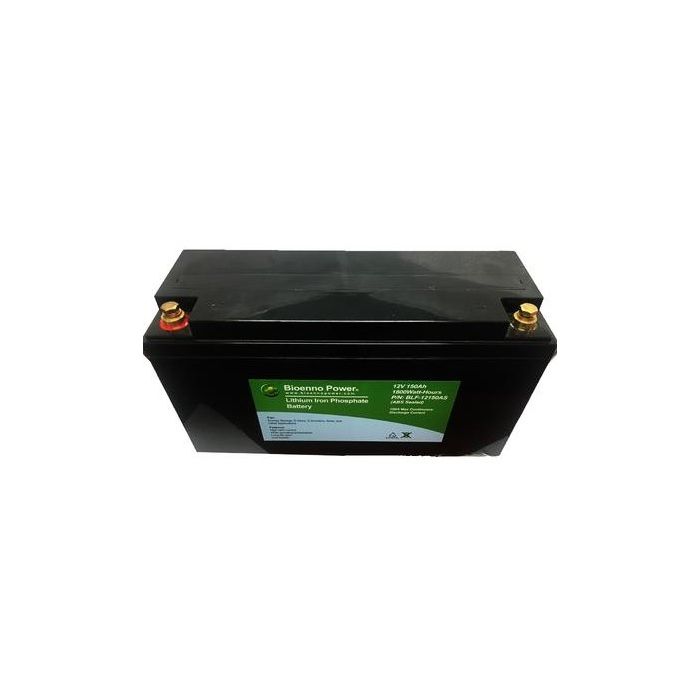

Bioenno Power 12V 150Ah LFP LiFePO4 Battery - 100A Max
AS is our latest model, and it is next generation of our WS and T models.
The Bioenno Power Lithium Iron Phosphate (LiFePO4) Battery Model BLF-12150AS is a 12V/150Ah battery based on state-of-the-art Lithium Iron Phosphate electrodes. Featuring a power density which can only be matched by the combined output of three 12V 100Ah capacity SLA batteries while weighing less than a single 12V 100Ah SLA, this is one of the most powerful and capable power units on the market. As with all Bioenno Power batteries, this unit includes as standard a fully integrated advanced single-board micro computer control system known as a PCM (protection circuit module). This allows the battery to give you 5-10+ years of maintenance free reliable performance at 2000+ charge cycles with the ability to discharge up to 90% of its rated capacity. Ideal for all applications ranging from powering motors to solar storage, this battery additionally boasts no EMI/RFI (Electromagnetic Interference/Radio-Frequency Interference) and is absolutely quiet! The unit has an available 120VAC/240 VAC AC-to-DC charger that provides 20A with Alligator Clips. Please note that this battery should be charged using a LiFePO4 compatible charger, and not with a charger for SLA batteries.
Before discharge confirm terminal screws are wrench-tightened to ensure proper contact is made!
BLF-12150AS Battery Specifications
- Voltage: 12V
- Capacity: 150Ah
- Case Type: ABS Sealed
- Charge/Discharge Connector: Screw Terminal
- Maximum Continuous Continuous Discharge Current: 100A
- Maximum Peak Pulse Current: 200A (5 sec.)
- Max Power Delivered to Load at 12V: 1,200 Watts
- Dimensions:(L x W x H) 19.6 in. x 6.8 in. x 9.6 in. (496 mm x 172 mm x 242 mm)
- Weight: 41.1 lbs. (18.7 kg.)
- Includes built-in PCM (protection circuit module) which provides internal cell balancing and management, protection from overcurrent, undervoltage (overdischarge), overvoltage and short circuiting, and has integrated charging circuitry.
- Available 120VAC/220 VAC Charger
Compatible AC-to-DC Charger Specifications
- Input Voltage: 120VAC/220 VAC
- Output Voltage: 14.6VDC
- Current: 20A
- Connector: Alligator Clips
- Model Number: BPC-1520C
BLF-12150AS Battery Specifications
- Voltage: 12V
- Capacity: 150Ah
- Case Type: ABS Sealed
- Charge/Discharge Connector: Screw Terminal
- Maximum Continuous Continuous Discharge Current: 100A
- Maximum Peak Pulse Current: 200A (5 sec.)
- Max Power Delivered to Load at 12V: 1,200 Watts
- Dimensions:(L x W x H) 19.6 in. x 6.8 in. x 9.6 in. (496 mm x 172 mm x 242 mm)
- Weight: 41.1 lbs. (18.7 kg.)
- Includes built-in PCM (protection circuit module) which provides internal cell balancing and management, protection from overcurrent, undervoltage (overdischarge), overvoltage and short circuiting, and has integrated charging circuitry.
- Available 120VAC/220 VAC Charger
Compatible AC-to-DC Charger SpecificationsÂ
- Input Voltage: 120VAC/220 VAC
- Output Voltage: 14.6VDC
- Current: 20A
- Connector: Alligator Clips
- Model Number: BPC-1520C
