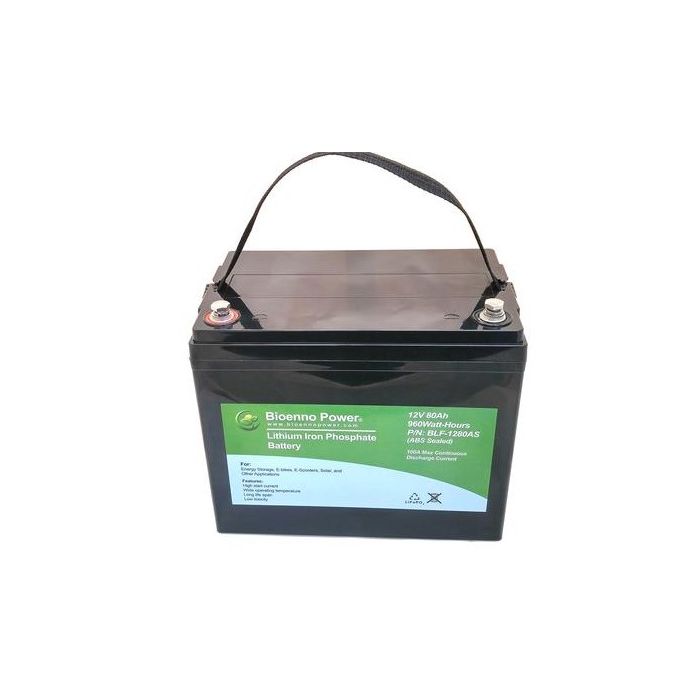

Bioenno Power BLF-1280AS 80Ah LiFePO4 Battery

Key Features of the 12V 80Ah Lithium Battery

1. High Output and Reliability

• Max Continuous Discharge Current: 80A

• Peak Discharge Current: 160A (5 seconds)

• Max Output Power: 960 Watts

• Life Expectancy: Up to 20 years, 3000+ cycles, and 90% usable capacity

2. Advanced Built-In PCM

• Full internal protection against overcurrent, short circuit, overvoltage, and undervoltage

• Integrated charging management with automatic balancing for long-term safety and reliability

3. Durable ABS Housing with Secure Terminals

• Sealed ABS case for impact resistance and field-ready performance

• Screw terminals ensure secure connections in mobile or stationary systems

4. System Flexibility (Series and Parallel Capable)

• Compatible with series configurations up to 48V

• Can be used in parallel with up to 4 units (serial numbers starting with “20” or higher)

5. Charging Compatibility

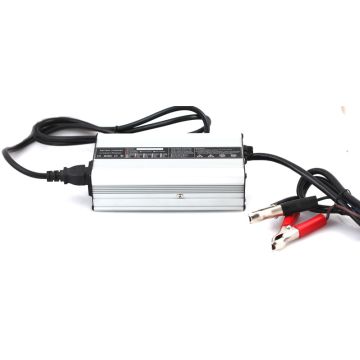

• Compatible with Bioenno Power chargers: BPC-1510A, BPC-1515A, BPC-1520A, BPC-1520C

• Specs:

  • Input: 120VAC / 220VAC

  • Output: 14.6VDC at 10A or 15A

  • Connector: Alligator Clips or Anderson Powerpole with ring adapter

Product Overview

The Bioenno Power Lithium Iron Phosphate (LiFePO4) Battery Model BLF-1280AS is a high-performance 12V 80Ah battery designed for professional-grade energy needs. Delivering the output of a 160Ah SLA battery at less than half the weight, this ABS-sealed unit offers long-lasting deep cycle power with built-in PCM protection and advanced lithium chemistry. It's ideal for solar, mobility, surveillance, communication, and off-grid energy storage systems.

Battery Specifications – BLF-1280AS

• Voltage: 12V

• Capacity: 80Ah

• Case Type: ABS Sealed

• Charge/Discharge Connector: Screw Terminal

• Max Continuous Power: 960 Watts

• Dimensions: 10.3 in. × 6.7 in. × 8.4 in. (260 mm × 170 mm × 212 mm)

• Weight: 22.3 lbs. (10.1 kg)

Benefits

• Twice the Power, Half the Weight: Replaces 160Ah SLA systems with superior energy density

• Extended Longevity: 3000+ deep charge cycles with stable discharge

• RF Clean: No EMI/RFI output—perfect for communications and instrumentation

• Versatile Configurations: Supports advanced energy systems with series and parallel integration

Ideal Applications

• Solar and renewable energy systems

• Surveillance and mobile communication setups

• Off-grid battery banks

• AV and field service electronics

• E-mobility and industrial tools

Installation Note

Before use, always wrench-tighten screw terminals to ensure secure electrical contact and optimal current transfer.
