Smart four-button remote with Zigbee and Bluetooth, plus built-in magnets and an included magnetic holder for flexible placement.
Bluetooth and Zigbee-operated - flexibility
Multi-click action trigger - execute up to 16 pre-set actions or scenes with simple click combinations. Supports multi-click - single, double, triple, and long press
Long battery life - uninterrupted performance up to 2 years
Wire-free - no need for wiring, comes with in-built magnets, a 3M patch, and one magnetic holder included in the package
Beacon mode - If enabled, the device will emit beacons every 8 seconds
Encryption - high level of security
Full compatibility with Home Assistant and any other device that is supported by BTHome protocol (out of the box)
Compact size - portable and ease to use
Variety of placement options - 3M patch included in the box
LED indication - Blue light flashing when the Device is in pairing mode. Red light flashing when a button is pressed. The number of flashes corresponds to the number of the button presses.
-
Device name: Shelly BLU RC Button 4
-
Device model: SBBT-004CUS
-
Device Bluetooth ID: 0x0007

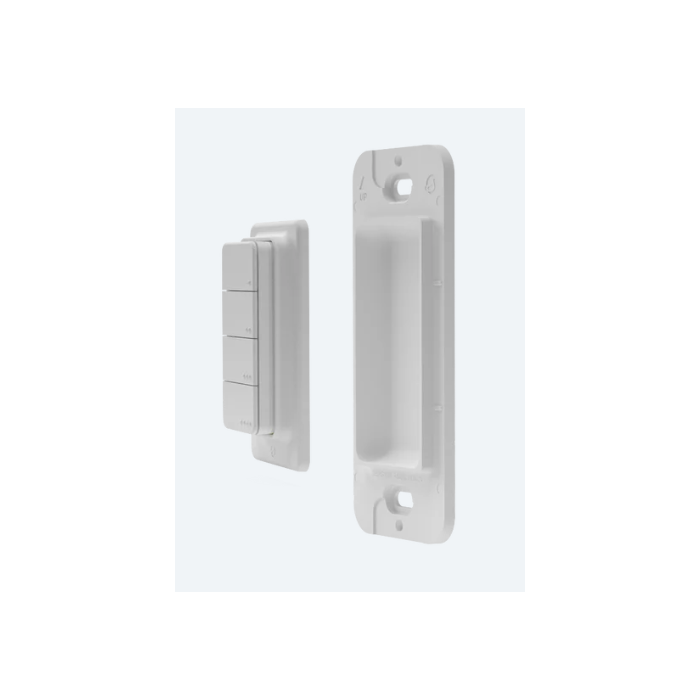

Shelly BLU RC Button 4 US (the Device) is a smart four-button Bluetooth remote control interface. It features long battery life, multi-click control, and strong encryption. The Device has in-built magnets and a magnetic holder included in the package providing users with versatile placement and usage options.
Main features
-
Long battery life
-
Supports multi-click
-
Compact size, portability, and ease of use
-
Strong encryption
-
Variety of placement and usage options
-
Lighting control: Assign the button to control specific lighting scenes or individual smart lights. For example, a single press could turn on/off the lights, while a long-term press could dim or brighten them.
-
Garage door opener: Use the strong encryption of Shelly BLU RC Button 4 and control your smart garage door opener as you approach or leave your garage.
-
Smart blinds or curtains: Open or close motorized blinds or curtain at the touch of a button.
-
Location-based automation: Set the device in Beacon mode so that to trigger specific actions when you come within Bluetooth range. Use the Device for presence control, for example to keep lights on while you need to spend some time in a certain area.
-
Scene control: Use the 4 buttons to activate any scene or specific actions you can imagine. Each button supports single, double, triple and long push - which allows the user to make 16 different actions!
-
Four push buttons
-
Press and hold any two buttons simultaneously for 10 sec to pair Shelly BLU RC Button 4 US with another Bluetooth device.
-
Press and hold any button for 30 sec to factory reset (possible only shortly after inserting the battery).
|
Quantity
|
Value
|
|
Physical
|
|
Size (HxWxD):
|
-
Button: 65x30x13 mm / 2.56x1.18x0.51 in
-
Magnetic holder (for wall switch boxes): 105x44x13 mm / 4.13x1.73x0.51 in*
-
Magnetic holder (for flat surfaces): 83x44x9 mm / 3.27x1.73x0.35 in
|
|
Weight:
|
21 g / 0.74 oz
|
|
Shell material:
|
Plastic
|
|
Shell color:
|
White
|
|
Environmental
|
|
Ambient working temperature:
|
-20 °C to 40 °C / -5 °F to 105 °F
|
|
Humidity:
|
30% to 70% RH
|
|
Electrical
|
|
Power supply:
|
1x 3 V battery (included)
|
|
Battery type:
|
CR2032
|
|
Estimated battery life:
|
Up to 2 years
|
|
Bluetooth
|
|
Protocol:
|
4.2
|
|
RF band:
|
2400 - 2483.5 MHz
|
|
Max. RF power:
|
< 4 dBm
|
|
Range:
|
Up to 30 m / 100 ft outdoors, up to 10 m / 33 ft indoors (depending on local conditions)
|
|
Encryption:
|
AES (CCM mode)
|
