BlueStack MicroPlus Board

$42.95
BlueStack MicroPlus Board SKU: ZBL-MICROPLUS

$42.95

Ready to Ship!
Check Store Stock

Huntsville Store:

Las Vegas:

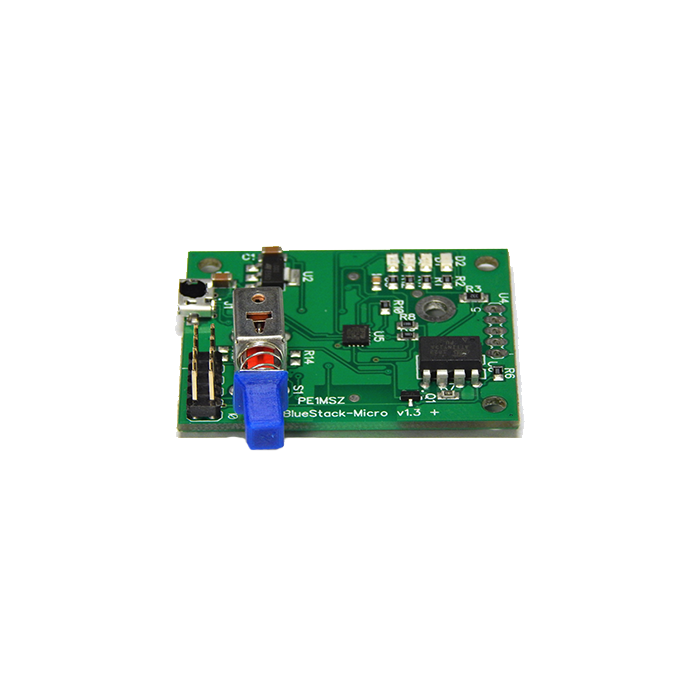

BlueStack MicroPlus Board

The Bluestack Micro Plus Board, supports DVMEGA  raspberrypi-boards(not included) both dual and singleband. With the BlueDV app, you have access to DMR, D-star (REF, XRF, DCS) and now:

Yaesu System Fusion support!!
Firmware to be used for this mode is Version 3.07 beta

Manual in PDF Here

- switch activated (in), serial mode for Jonathan Naylor (G4KLX mode), MMDVM, BlueDV for Windows, or DVMEGA firmware upgrade mode via X-loader tool. (http:dvmega.auria.nl)

note: new units will be switching off programming-mode after 1 minute. This is for MMDVM-mode. Older units; diconnect the wire on radioboard after upgrade. Download the needed firmware for the DVMegaboard  HERE!

- switch de-acivated (out), BlueDV mode, connecting to BlueDV App. BlueDV is an Android app, so perfect to use as mobile hotspot!!

Unit is always powered through the micro-usb, so use an adaptor or a battery-pack to power, or just power via the PC/USB-hub.

Manual can be found at www.pe1msz.nl and info on BlueSpot app at http://www.pa7lim.nl/bluespot, and instruction-video Here!
Drivers: X86 and X64

User Manual Here: http://www.pe1msz.nl/BlueStack%20Micro+.pdf

Connecting Bluetooth, select device BlueStack, and use pin: 1234
