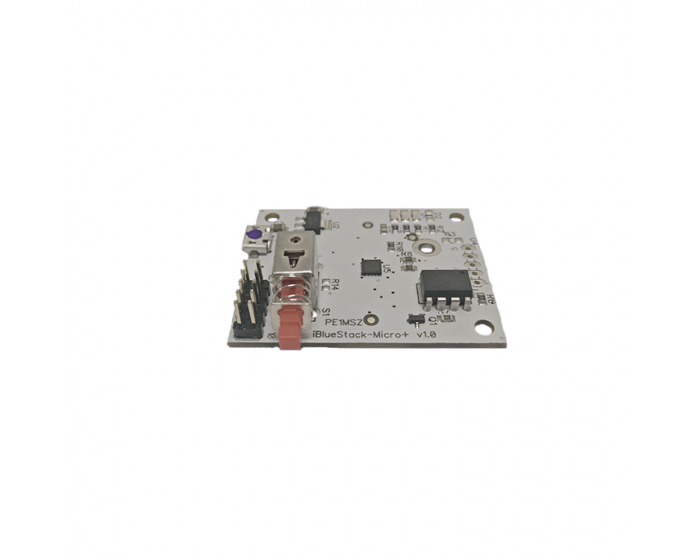

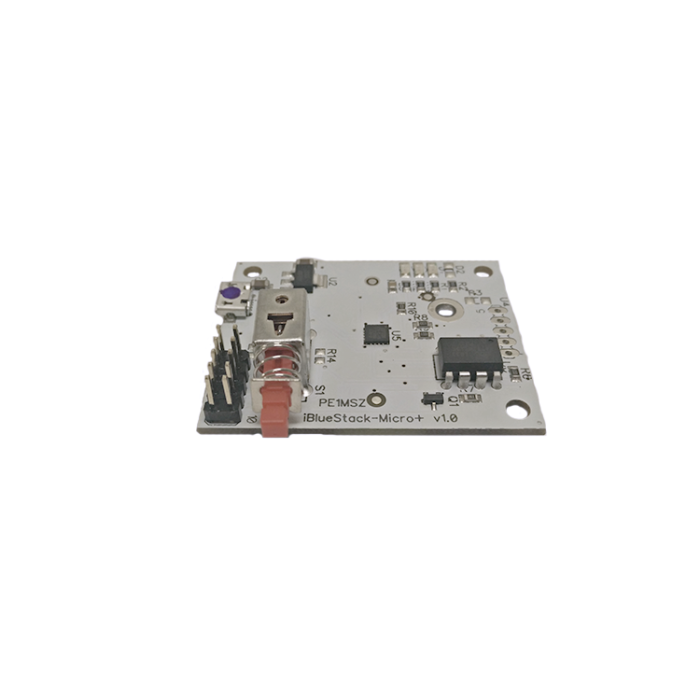

BlueStack MicroPlus for Apple Devices (Only)

BlueStack MicroPlus for IOS (Only)

This product works with a DVMega board, both dual band and single band.

This model, when operating via Bluetooth with an IOS device, is capable of using DMR and Fusion.  When connected to a linux or Windows device via USB, it is capable of D-Star, DMR and Fusion.

This device preforms in a similar manner as the BlueStack Micro+ but for the availability to pair via Bluetooth to your Apple device.

This software is available in the App Store for IOS devices, under the name BlueDV.

Please understand that GigaParts does not provide technical support for this device.

Connecting Bluetooth, select device BlueStack, and use pin: 1234

Firmware to be used for this mode is

- switch activated (in), serial mode for Jonathan Naylor (G4KLX mode), MMDVM, BlueDV for Windows, or DVMEGA firmware upgrade mode via X-loader tool. (http:dvmega.auria.nl)

note: new units will be switching off programming-mode after 1 minute. This is for MMDVM-mode. Older units; diconnect the wire on radioboard after upgrade. Download the needed firmware for the DVMegaboard  HERE!

- switch de-acivated (out), BlueDV mode, connecting to BlueDV App. BlueDV is an IOS app, so perfect to use as mobile hotspot!! NOTE: NO DSTAR SUPPORT YET

Unit is always powered through the micro-usb, so use an adaptor or a battery-pack to power, or just power via the PC/USB-hub.

Manual can be found at www.pe1msz.nl and info on BlueSpot app at http://www.pa7lim.nl/bluespot, and instruction-video Here!
