Bridgecom BCD-144 VHF Mobile-Type Duplexer

SKU
ZBS-BCD-144
$330.00
Add to Wish List
Out of Stock

No Longer Available - We recommend the Yaesu DR-2X System Fusion Repeater System

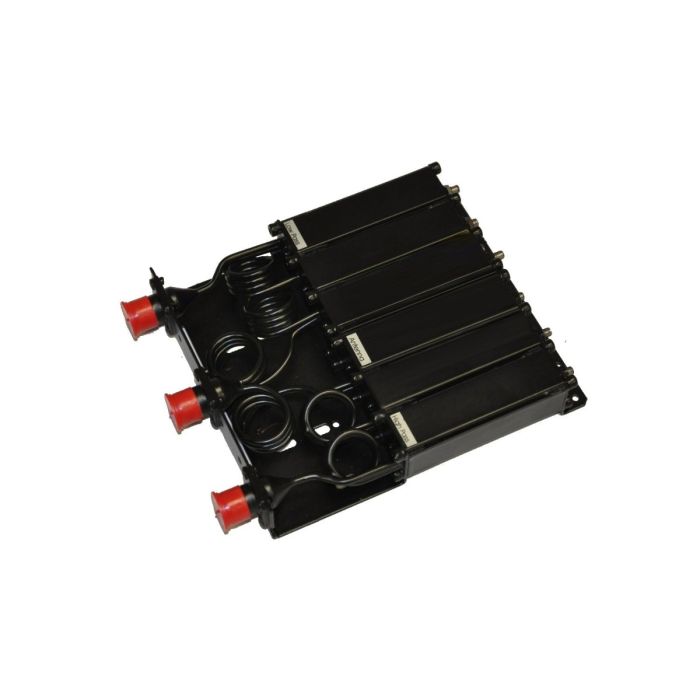

Bridgecom Systems BCD-144 VHF Mobile-Type Duplexer

Do you need a small compact duplexer for your repeater system?
Introducing the BridgeCom Systems' BCD-144 commercial duplexer.  If you want a quality duplexer and no desense, look no further.  The BCD-144 is the best mobile style duplexer on the market,  You'll rest easy knowing you have a quality built duplexer handling your repeater needs.
The BCD-144 is built around a mobile type six cavity chassis boasting an impressive 80 dB isolation. It requires 5-8 MHz of frequency spacing and will handle up to 50W. When you order a BCD-144 it comes tuned to your frequency ready for your application. Pick one up today with the optional cabling kit for a plug and play application.

  • VHF Frequencies Available: 145 - 163 MHz, 155-175 MHz
  • Frequency spacing 5 - 8 MHz
  • Max Input Power Continuous: 50W
  • Insertion loss Rx and Antenna Port 1.5 dB
  • Rx isolation at Tx frequency: >80 dB
  • Tx Noise Suppression at TX Ant Port >80 dB
  • Ideal for full duplex and repeaters (50 W maximum)
  • Temperature compensation helical resonators
  • Resonator: plated copper tubing (UHF) and tinned copper helical (VHF)
  • Insulating material: teflon (VHF and UHF)
  • Low loss conformable cables
  • Shielding: extruded aluminum 6063-T5 tempered
  • N-Type Female connectors
  • Optional Cabling Kit - See RF Jumper Cable Collection
  • Dimensions: 30 x 156 x 232 mm (1.2 x 6.2 x 9.2 in)
  • Temperature: -30 to +60 C
  • Weight < 1.1 kg

***Free Programming/Tuning included! Please specify your Frequencies in the order notes.***


  • VHF Frequencies Available: 145 - 163 MHz, 155-175 MHz
  • Frequency spacing 5 - 8 MHz
  • Max Input Power Continuous: 50W
  • Insertion loss Rx and Antenna Port 1.5 dB
  • Rx isolation at Tx frequency: >80 dB
  • Tx Noise Suppression at TX Ant Port >80 dB
  • Ideal for full duplex and repeaters (50 W maximum)
  • Temperature compensation helical resonators
  • Resonator: plated copper tubing (UHF) and tinned copper helical (VHF)
  • Insulating material: teflon (VHF and UHF)
  • Low loss conformable cables
  • Shielding: extruded aluminum 6063-T5 tempered
  • N-Type Female connectors
  • Optional Cabling Kit - See RF Jumper Cable Collection
  • Dimensions: 30 x 156 x 232 mm (1.2 x 6.2 x 9.2 in)
  • Temperature: -30 to +60 C
  • Weight < 1.1 kg
