C.Crane CSW



Discontinued by the Manufacturer

Check Store Stock

Huntsville Store:

Las Vegas:

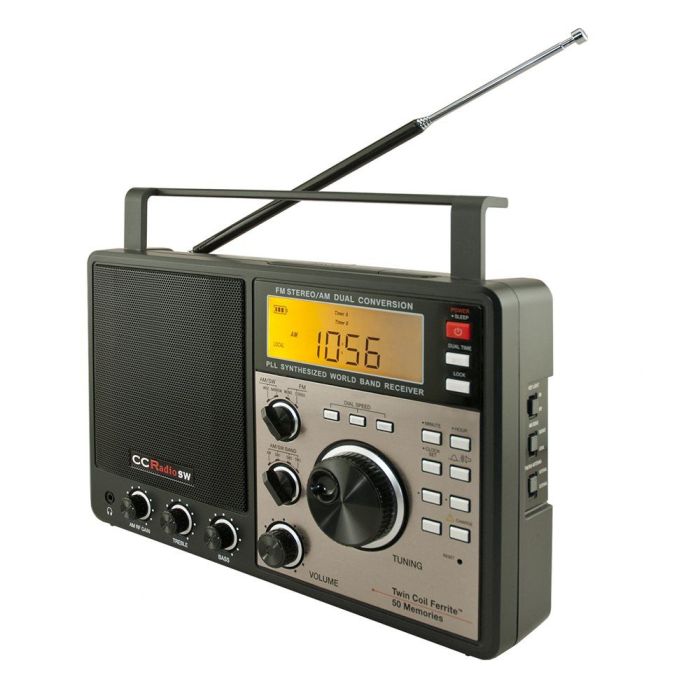

CCRadio-SW AM/FM Shortwave Radio

The World At Your Fingertips

The purpose of the CCRadio-SW was born when an engineer’s time went into producing some of the best reception and audio you could find in a portable radio. It has all the necessary tunings and tweakings available for excellent performance under various conditions and offers the best combination of sensitivity, selectivity and audio performance for any radio of this size.

This masterful radio delivers some of the best FM reception and, thanks to the built-in Twin Coil Ferrite® Antenna, the AM is exceptional. It has continuous coverage of the shortwave band with excellent reception right off the whip antenna. The five-inch speaker is accurate, pleasant and probably reproduces deeper bass than any portable of similar size.

The CCRadio-SW is one of the few radios with a mono switch. When activated the radio filters out the stereo FM multiplex signal which can add a hissing noise when listening to a weak station.

  • RF Gain, Bandwidth Control, Fast and Slow Tuning
  • Bass and Treble Controls
  • Lighted LCD Display and Lighted Buttons
  • Clock Radio with Snooze Alarm
  • Weight: 4.2 lbs. Size: 11.25" W x 7.25" H (9" H with handle) x 3.5" D
  • Stereo Headphone Jack
  • Stereo Line Output and IF Output for Input to Computer
  • 50 Memory Presets
  • Built-in charger, with auto shut off, for NiMh batteries
  • Uses 4 "D" batteries or 4 "AA" batteries for programming back-up (batteries not included)

General Specifications
Input PowerAC Adapter: 9V DC 500mA tip negative
Batteries: (4) AA or D size (not included)
Audio Output2.5 Watt
Speaker5", 8 ohm, 5W
Frequency CoverageAM 520 - 1710 kHz (10KHz Steps)
AM 522 - 1620 kHz (9KHz Steps)
FM 87.0 - 108.0 MHz
SW1 1711 - 10010 kHz
SW2 9990 - 20010 kHz
SW3 19990 - 29999 kHz
Rotary Tuning Knob ResolutionAM - 1 kHz, 9 kHz or 10 kHz
FM - 10 kHz or 100 kHz
SW - 1 kHz or 5 kHz
AM Tuning10 kHz or 9 kHz steps
FM Tuning100 kHz steps
SW Tuning5 kHz steps
AM AntennaInternal Ferrite Bar - 10mm x 160mm (6.3") long with Twin Coil Ferrite® technology
FM, SW AntennaTelescopic whip antenna
AM Dual Conversion55.845 MHz 1st IF; 455 kHz 2nd IF
AM IF OutputFor input into a computer for decoding DRM, SSTV, SSB, CW and more.
AM Sensitivity0.2 mV/m
FM Sensitivity> 5 uV
SW Sensitivity> 20 uV
Selectivity (Wide)Wide > 40 db (100x)
Selectivity (Narrow)> 60 db (1000x)
External Antenna TerminalsAM Spring loaded wire terminals
FM/SW PAL Connector
FM Stereo/Mono SwitchYes
Earphone Jack1/8" (3.5mm) Stereo 32 ohm
Line Out JackDual RCA
Presets50 Total (10 per band)
Lock SwitchYes
Sleep Timer1-90 minutes
AlarmYes, dual
Snooze5 minutes
Clock12/24 Hour Modes
Dimensions11.25" W x 7.25" H (9" H with handle) x 3.5" D
Weight4.2 lbs.
Warranty1 Year Limited Warranty
Included AccessoriesAC Adapter
(2) PAL Connectors
