CHA MPAS Modular Portable Antenna System

1.8-54 MHz

The Modular Portable Antenna System (MPAS) is a concept allowing the radio operator to configure and deploy the antenna system in a variety of configurations. Some of the possible deployment configurations:

• Vertical

 • Horizontal

 • Sloper

 • Inverted “V”

 • Inverted “L”

 • NVIS

 • Balcony

 • Vehicle (Stationary)

 • Man-Pack

Specifications:

 Frequency: 6M - 160M

Power: 100 SSB or 50W CW.

Mounting Configuration: 3/8-24 Thread

IT'S IMPORTANT TO WATERPROOF THE CHA MIL and the CHA MIL EXT BEFORE PERMANENT INSTALLATION

Use the Ideal NOALOX 4 oz. Anti-Oxidant Compound to improve the efficiency of aluminum conductor connections. This compound provides additional inner-strand and inner-conductor current paths.

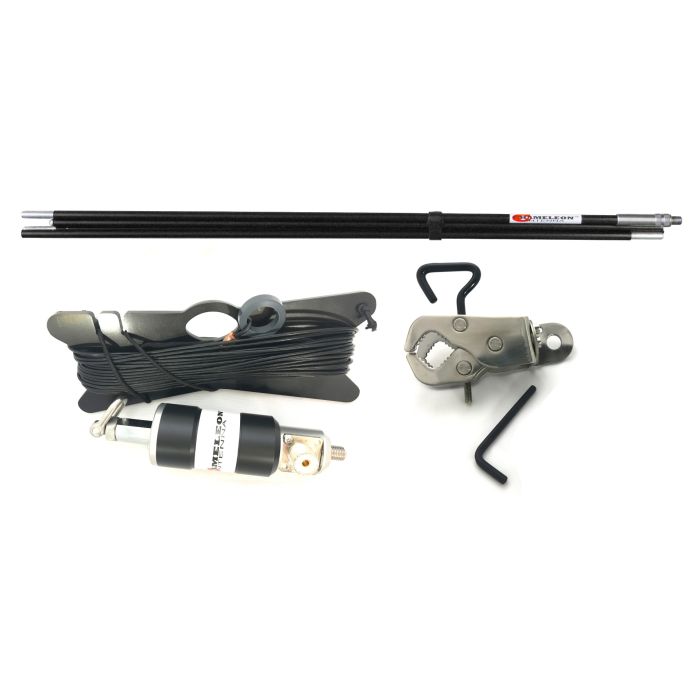

The antenna system consists of:

1 X HYBRID-MICRO Matching Unit Base

1 X 60' Copper Clad KEVLAR PTFE (Teflon) (-70°C to 150°C) wire

1 X CHA MIL

1 X JAWMOUNT

Stainless Steel Hardware
