Chameleon Antenna Tactical Dipole Lite 2.0, Lightweight Portable HF Antenna Kit

The Chameleon Antenna TD Lite 2.0 Antenna  is a HF multi band dipole that offers the convenience of a single, easy to erect antenna that can be installed in a number of configurations to suit the needs of the user.  Standard Dipole, Inverted V and Inverted L, End Fed, NVIS and Sloper configurations are all possible with the TD Lite 2.0.  The antenna will operate at all frequencies from 1.8-54 MHz without adjustment with most modern internal or external antenna tuners. The antenna can be supported by trees, masts, towers, or other field expedient structures.

Specifications:

• Frequency: 6M – 160M
• Power: 500W SSB Phone, 250W CW, 100W High Duty Cycle Digital Modes (5:1 UNUN)
• SWR: Dependent on Configuration but generally below 2.5:1

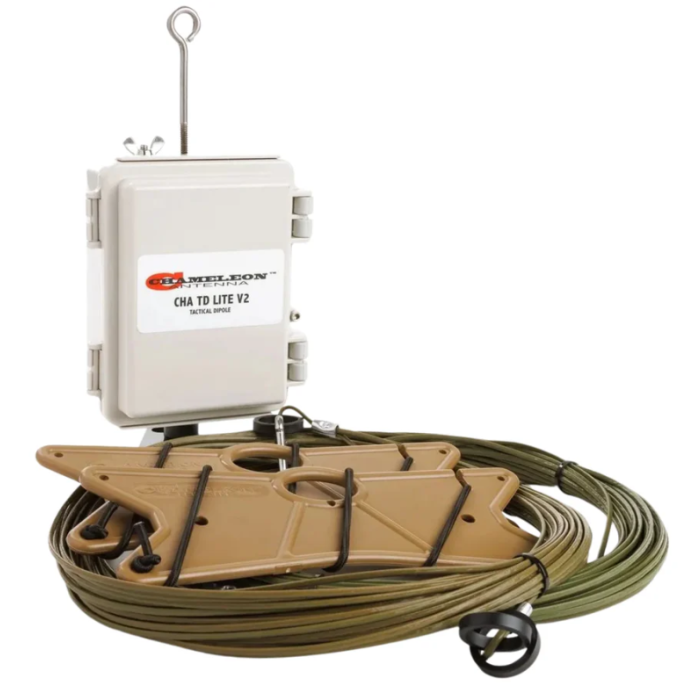

The antenna system consists of:

• 1 X TD Lite 2.0 TRANSFORMER
• 2 X 60’ Tinned Copper KEVLAR PTFE (Teflon) (-70°C to 150°C) wires
• Two wire winders
• All Stainless Steel Hardware
