Comet Antennas CFX-514N Triplexer: HF-6M/2M/70cm w/Leads SO-239/PL-259/N-MALE

SKU
ZCM-CFX-514N
$62.95
Add to Wish List

SAVE $7.00

Regular Price: $69.95

$7.00 Instant Rebate (Exp. 12-31-2023)

Ready to Ship!
Check Store Stock

Huntsville:

Las Vegas:

Distribution Center:

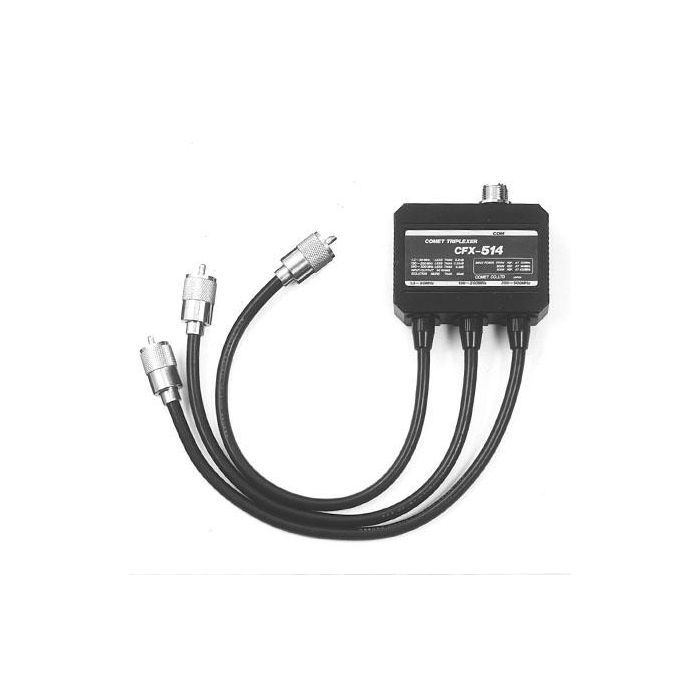

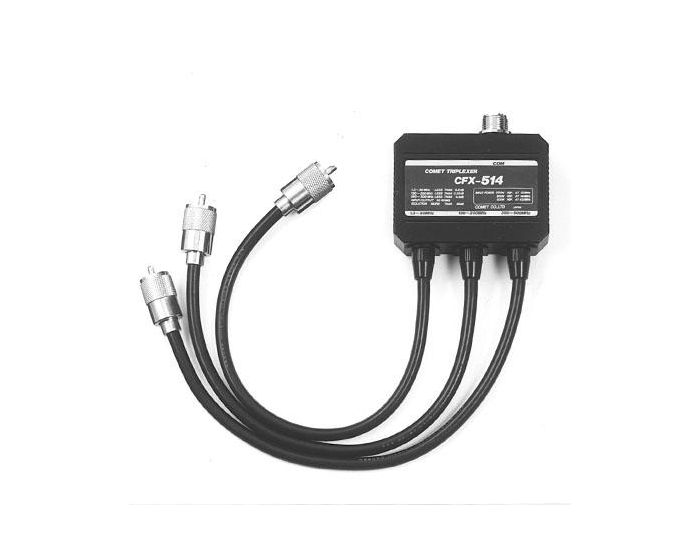

Comet Antennas CFX-514N Triplexer

HF-6M / 2M / 70cm Triplexer

Jumpered Connectors on Inputs

Product Specifications

  • Band Pass:
    • Low: 1.3 - 90MHz
    • Mid: 130 - 200MHz
    • High: 380 - 500MHz
  • Ins. Loss
    • Low: 0.2dB
    • Mid: 0.25dB
    • High: 0.3dB
  • Max Power:
    • Low: 800 watts PEP
    • Mid: 800 watts PEP
    • High: 500 watts PEP
  • Isolation: 55dB
  • Connectors:
    • Output: SO-239
    • Low Input: PL-259
    • Mid Input: PL-259
    • High Input: N-Male
HF-6M / 2M / 70cm Triplexer

  • Jumpered Connectors on Inputs
Product Specifications

  • Band Pass:
    • Low: 1.3 - 90MHz
    • Mid: 130 - 200MHz
    • High: 380 - 500MHz
  • Ins. Loss
    • Low: 0.2dB
    • Mid: 0.25dB
    • High: 0.3dB
  • Max Power:
    • Low: 800 watts PEP
    • Mid: 800 watts PEP
    • High: 500 watts PEP
  • Isolation: 55dB
  • Connectors:
    • Output: SO-239
    • Low Input: PL-259
    • Mid Input: PL-259
    • High Input: N-Male
