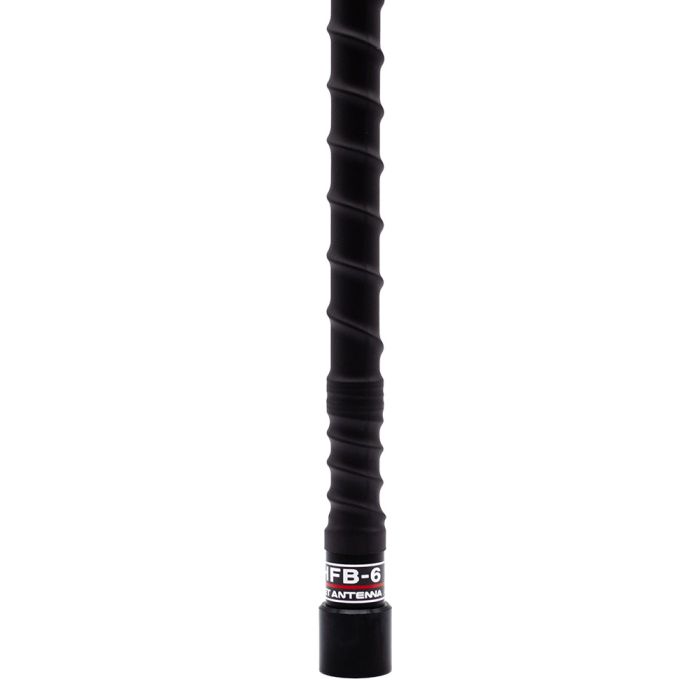

Comet HFB-6 6 Meter Base Loaded HF Mobile Antenna

Comet Mono-Band HF Series Base-Loaded Mobile Antennas

The Comet Mono-Band HF Series Base-Loaded Mobile Antennas are high-quality, single-band mobile antennas designed for reliable operation across popular High Frequency (HF) amateur radio bands. Available for the 6, 10, 15, 17, 20, 40, and 80-meter bands, each antenna provides efficient, optimized performance for your mobile setup.

These antennas feature a durable, high-quality black anodized finish for years of trouble-free operation and ship in two sections for easy breakdown and transport. Each antenna utilizes a 1/4 wave base loaded design and connects using a standard SO-239 antenna connector. The compact models (6M-20M) measure 37 inches in total length, while the lower frequency models (HFB-40 and HFB-80) are 63 inches and 60 inches, respectively. All models boast excellent performance with a VSWR of 1.5 or less at their center frequency.

Key Features and Specifications

• Band Coverage: Mono-band mobile antennas available for 6M, 10M, 15M, 17M, 20M, 40M, and 80M bands.
• Design Type: 1/4 wave Base loading type design.
• Connector: Standard SO-239 antenna connector.
• VSWR: 1.5 or less measured at the center frequency.
• Power Rating (SSB): 250W for 6M through 40M models; 120W for the 80M model.
• Construction: High-quality black anodized finish for durability. Ships in two sections.
• Length: 37 inches (HFB-6 to HFB-20), 63 inches (HFB-40), and 60 inches (HFB-80).
