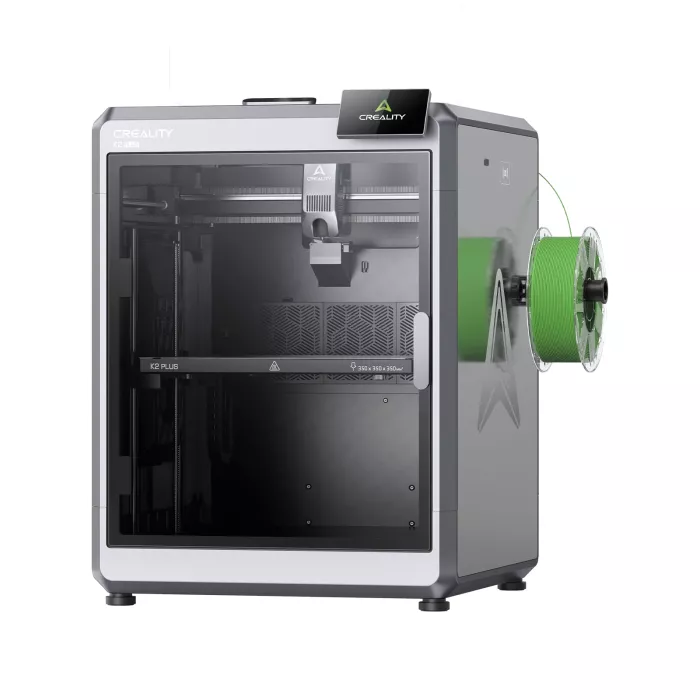

Creality K2 Plus 3D Printer

Creality Filament System

• 16 Colors, Level up Your Creativity
  • The CFS comes with a connection hub on the back. By hooking up as many as four CFS units together, you are able to print in the splendor of 16 colors. Saves the need for extra painting afterward.

Sturdy "Matrix" Frame

• 350mm Cubed Volume
  • Vexed that your model easily outsizes the build plate? K2 Plus packs a substantial 350*350*350mm build volume. This plus format enables larger objects or larger batches, easily satisfying your ever-expanding 3D printing aspirations.
• New "Matrix Frame - Ultra Sturdy
  • Super Rigid Exoskeleton - Stiff top, base, and side pieces die-cast by tough aerospace-grade aluminum alloy.
  • Precise Steel X-axis Rail - Stiff carbon steel processed with great precision. Highly resistant to wear or warp.
  • Dual Z-axis Assisted by 4 Linear Rods - Extremely steady while carrying the print bed up and down. Virtually no layer shift.
  • 5mm Thick Aluminum Alloy Heatbed - Holding exceptionally well against deformation and vibration.

Step-servo Motor System

• All Boosted by FOC Step-servo Motors
  • K2 Plus is the first-ever desktop 3D printer adopting industry-grade FOC step-servo motors for the XYZ axis and extrusion. The five powerful motors work in unison, each offering 32,768 controllable microsteps per revolution for ultra precise positioning. This takes the printing performance to the next level.
• Incredibly Quiet While Printing Hard
  • Annoyed by the buzzing noise? Not K2 Plus. With step-servo motors, dynamically balanced fans, and a snug enclosure. It is no louder than someone typing on a laptop PC, truly a creative machine you can work next to.
  • Noise level at 300mm/s ≤ 45dB
• Blazing Speed, a New Record
  • For a large-format machine, 600mm/s is pretty fast, but that's not the whole story. Turbocharged by the step-servo motors, it can accelerate at a staggering 30000mm/s². The print time has never been this short.
• Active Belt Tensioning
  • Timing belts may get loose over time, leading to poor print quality and accuracy. On the K2 Plus, the belt tension is checked and rigged actively by a pressure sensor instead of manually. Now, belt tensioning is a thing you can forget about.

Next-gen Extruder

• Automated Filament Cutter
  • The cutter has a durable tungsten steel blade and can be pulled back to position by a magnet, able to sustain constant filament switches.
• Run-out Sensor
  • Nearly zero distance from the nozzle. It tells you to replace the filament when only about one inch is left. There will be little waste.
• Strain Gauge for Leveling
  • Highly sensitive for probing the bed. It makes leveling compensation much more  precise than sensors embedded in the heatbed.
• Durable Direct Drive Extrusion
  • Hardened steel gears for better durabity. No issue coping with the repeated filament ingress and egress.
• 40mm³/s High-flow Hotend
  • Powered by an 100W heater, the flow rate of ABS at 280°C can reach 40mm³/s, 66% higher than the previous design.
• Clag-free & Quick-swap Nozzle
  • The tri-metal nozzle curbs heat creep effectively for minimal clogs, and the integrated nozzle design and the magnetic front cover make the nozzle swap a breeze.

Master of Materials

• What Makes K2 Plus a Master of Materials?
  • Actively Heated Chamber - Creating a thermostatic environment up to 60°C. Essential to forge strong prints in ASA, PPA and other high-end materials.
  • High-temp Nozzle with Hardened Steel Tip - Capable of reaching 350°C. Designed for use with wear-resistant engineering materials of high melting points.

Dual AI Cameras

• Unrivaled Perception with 18 Smart Sensors
  • The thermal, motion, extrusion and leveling systems are all sensorized. So everything is automated and closely monitored. If any irregular activity is identified, the sensors will notify you immediately.
  • Chamber AI Camera Keeps a Keen Watch
    • Print Failure Detection - Watch over spaghetti faulure, idling, and so on in real-time.
    • Built Plate Detection - Confirm that the build plate is installed and clear before printing.
    • Video Monitoring & Time-lapse - Capture the thrill of crating your unique masterpiece.
  • Toolhead AI Camera Tunes the Flow Rate
    • There is also an AI camera on the toolhead. It can analyze test 3D model and then generate an optimal PA value or flow rate percentage value. No more underfeeding and overfeeding that degenerate your prints.
