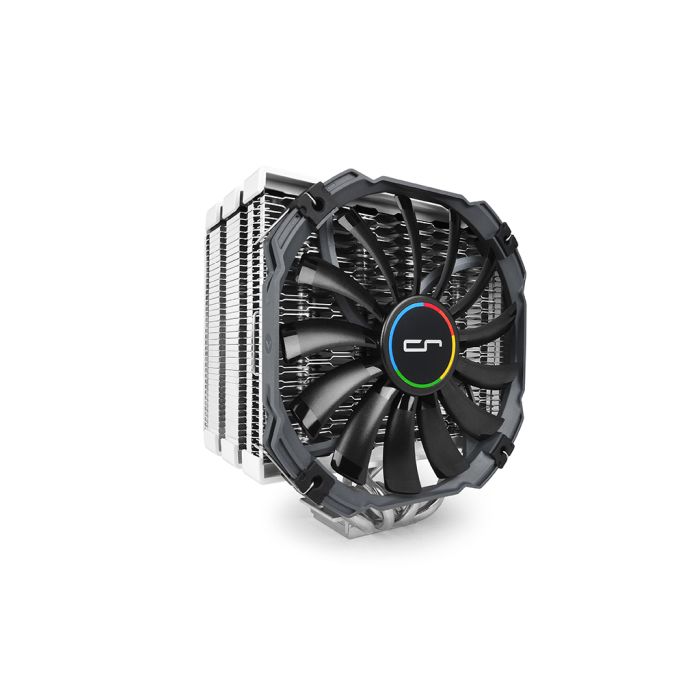

CRYORIG H5 Universal 140mm Single Tower Heatsink
CRYORIG H5 UNIVERSAL
CRYORIG Hive Fin™ Design
For Extreme Performance
Efficiency & Compatibility
Breaking Design Molds
Efficiency by Innovation
CRYORIG H Series coolers feature our proprietary Hive Fin™ structure. This design allows for a combination of Jet Fin Acceleration™ and Turbulence Reduction, as well as strengthening structural strength of the fin stacks. Combined together, the Hive Fin™ design brings cool innovation.
Air Exhaust Acceleration
Hot Air Cooled Fast
By utilizing a larger air intake and narrower air exhaust section on the fins, compresses the air to move faster while exiting the heatsink. Jet Fin Acceleration System™ carries the hot air out of the system faster and more efficiently.
Turbulence Reduction System
Utilizing a bee hive shaped structure at the front air intake of the heatsink, lowers air turbulence and straightens out the airflow. Assisting airflow to move directly through the full length of the heatsink and carrying out hot air.
XL Surface Area
The H series coolers by CRYORIG feature an extended fin surface area to the back. This allows the heatsink to achieve phenomenal cooling performance comparable to Dual Tower coolers and heatsinks. The H5 in particular has a cooling surface area within 90% of our top-line R1 series coolers.
Total CPU Coverage
The H5’s Heatpipe Convex-Align™ System allows for more heatpipes in a given area, optimized heatpipe placement in the copper base, and improved alignment with your CPU. With the Heatpipe Convex-Align™ System, each heatpipe functions to their maximum TDP capacity.
Silence Means Cold
Acoustics are just as important as performance. That’s why the XT140 140mm fan integrates acoustic optimizations. The XT140 features our High Precision Low Noise (HPLN™) bearing and the detachable Acoustic Vibration Absorbers that give the fan a snugger fit while canceling vibration and noise at the same time.
Quick Mount System
Patent Pending Multiseg™ Quick Mount System providing an all in one solution on Intel™ platforms, CRYORIG’s MultiSeg™ Quick Mount System allows for a securer and firmer installation within minutes.
Zero RAM Interference
Focusing on providing the widest range of compatibility, the H5 utilizes an asymmetric slanted heatpipe layout to move the heatsink away from the RAM zone. Also, fitted with a 13mm thin XT140 the CRYORIG H5 offers optimal compatibility for RAM with tall heat spreaders on both Intel™ and AMD platforms.
Fast & Easy to Install
The H5 is highly efficient and easy to install. With maximum compatibility for virtually all setups, it’s the heatsink that’s compatible, competitive and cool.
|Dimension ( with fan )||L98 mm x W143 mm x H160 mm|
|Weight ( with fan )||853 g|
|Weight ( without fan )||764 g|
|Heat pipes||6mm heatpipe x 4 units|
|Fin||T = 0.4 mm ; Gap = 2.8 mm|
|Fin Pcs||38 pcs|
|Copper Base||C1100 Pure copper nickel plated|
|RAM Height Limit||Limitless|
|Dimension||L140 mm x W140 mm x H13 mm|
|Rated Speed||700 ~ 1300 RPM ±10 %|
|Noise Level||20 ~ 24 dBA|
|Air Flow||65 CFM|
|Air Pressure||1.49 mmH2O|
