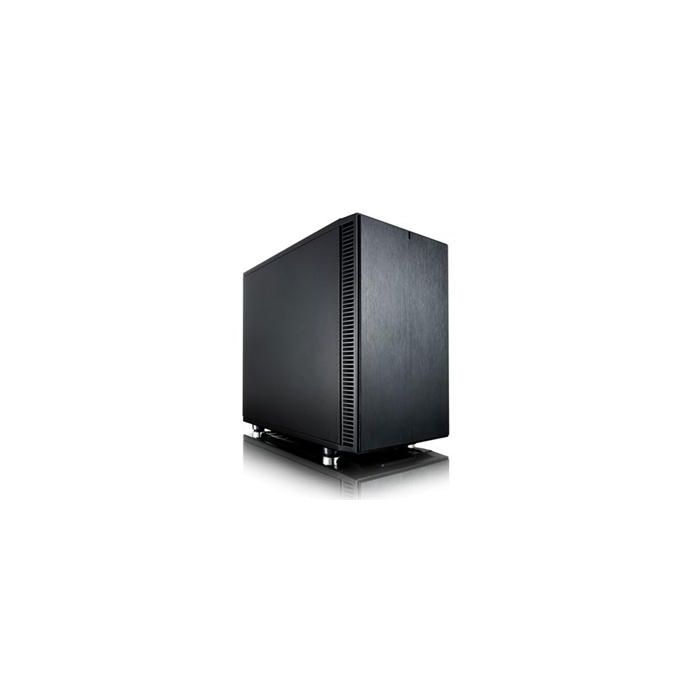

The Define Nano S is an ITX case that features compatibility with high end, full-size components, superior sound dampening, and an ATX-like layout.
The case includes two Dynamic Series fans with both bottom and front intakes protected by easy-to-clean, removable dust filters.
With its mounting capabilities for simultaneous radiators and unobstructed airflow path, the Define Nano S can cool enthusiast-level components.
Equipped with Fractal Design’s signature ModuVent™ technology on the top vents and sound dampening throughout, the Define Nano S can run a powerful system quietly, a hallmark of the Define series.
- A Define Series ITX case designed for silent computing with sound dampening and ModuVent™ technology
- User-friendly construction with superior cable management and compatibility for full-size components
- Flexible storage options with room for up to 4 drives
- Accommodates a variety of radiator sizes and includes brackets for reservoir and pump mounting
- Features two Dynamic Series fans — 1 GP-12 and 1 GP-14 — with an adapter included for motherboards with limited fan headers
- Featuring an open interior allowing an unobstructed airflow path from the front of the case to the rear exhaust
- Easy-to-clean filters on the bottom and front, spanning the PSU position, with the bottom filter ejecting from the front for easy-access.
- ITX motherboard compatibility
- 2 expansion slots
- 2 - 3.5" HDD/2.5" SSD positions; 2 - 2.5" dedicated SSD unit positions (fits SSDs up to 13mm thick)
- 6 - Fan positions (1 Fractal Design Dynamic GP14 140mm fan + 1 Fractal Design Dynamic GP-12 120mm fan included)
- Filtered fan slots in the front and bottom (ejects from the front of the case)
- CPU coolers up to 162mm in height
- ATX PSUs up to 160mm deep (shorter PSUs recommended for easier cable management)
- Graphics cards up to 315mm in length with front fans mounted (Cards wider than the dual slot bracket are not recommended)
- 17 - 35mm of space for cable routing behind the motherboard plate
- Velcro straps included for easy cable management
- Both side panels and rear HDD/SSD brackets feature smart captive thumbscrews
- Dense sound dampening material on front, left and right side panels
- ModuVent™ on top of case for further silent computing or additional ventilation
- Colours available: Black
- Case dimensions (WxHxD): 203 x 330 x 400mm
- Case dimensions - with feet/protrusions/screws: 203 x 344 x 412mm
- Net weight: 5 kg
- Case volume: 26.80 litres
- Package dimensions (WxHxD): 275 x 485 x 420mm
- Package weight: 6.2 kg
- Define Nano S computer case
- User manual
- Accessory box
