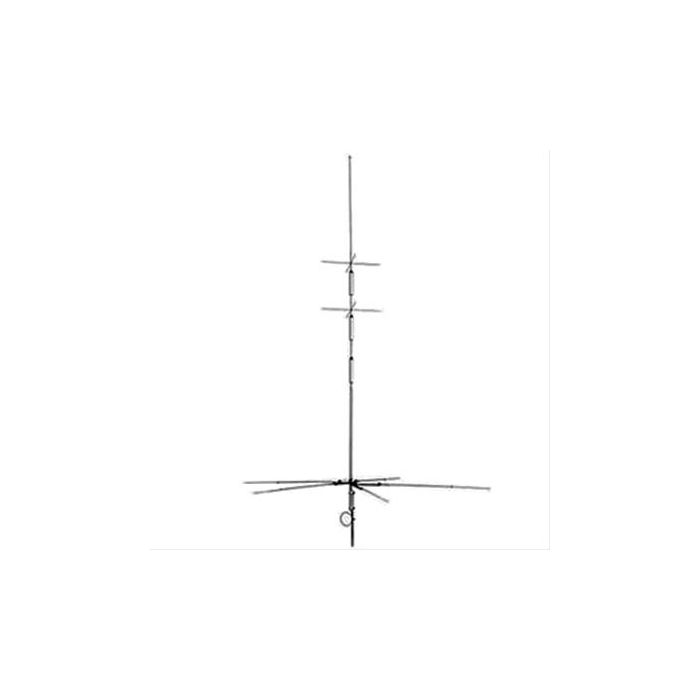

CP6AR Multi-Band HF Antenna
|
The CP6AR multi-band trap-vertical antenna for HF bands, covering the 75*, 40*, 20, 15, 10 and 6m amateur bands. Made from heavy duty aluminum, the CP6AR assembles easily, and yeilds excellent performance and reliability from a compact base station antenna. Its compact size allows for many mounting options. Minimum 15' diameter required for mounting radials. No additional ground radials required |
o Compact size
o Heavy-duty aluminum antenna sections
o Easy assembly
o No additional ground radials required
o Mounting hardware included
| Frequency: | 75 - 40 - 20 - 15 - 10 - 6m | |||||||||||||||
| Power: | 200 watts PEP | |||||||||||||||
| Impedance (output): | 50 ohms | |||||||||||||||
| VSWR: | 1.8:1 (Nominal) | |||||||||||||||
| Element Phasing: | 1/4 wave trap vertical groundplane. | |||||||||||||||
| Radials: | Six, Trap design. | |||||||||||||||
| Grounding: | Direct grounding. Antenna element and radials connected to mounting pipe. | |||||||||||||||
| Max Wind Rating: | 80 mph (no ice) | |||||||||||||||
| Mast Diameter Acceptance: | 1.2" - 2.4" | |||||||||||||||
| Overall Length: | 15.1' (4.6m) | |||||||||||||||
| Weight: | 9.9 lbs. (4.9kg) | |||||||||||||||
| Connector: | SO239 female UHF | |||||||||||||||
|
*CP6AR will cover small portion of 75 meter phone band. Antenna tuner required for additional coverage. |
||||||||||||||||
|
||||||||||||||||
