Diamond Antenna MX2000N

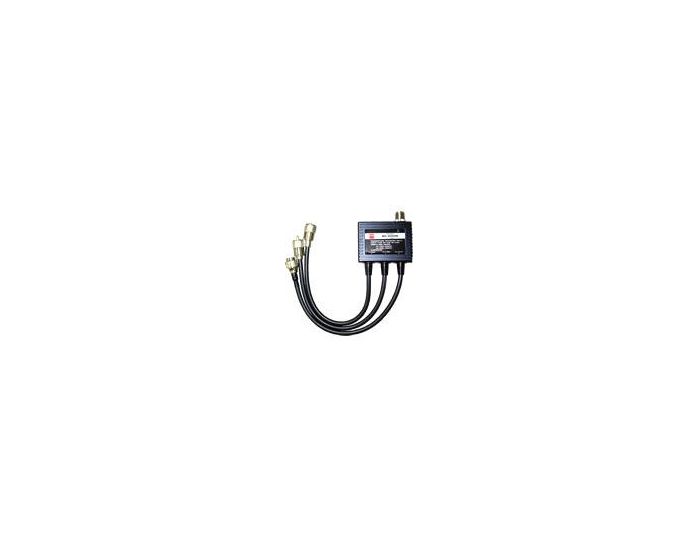

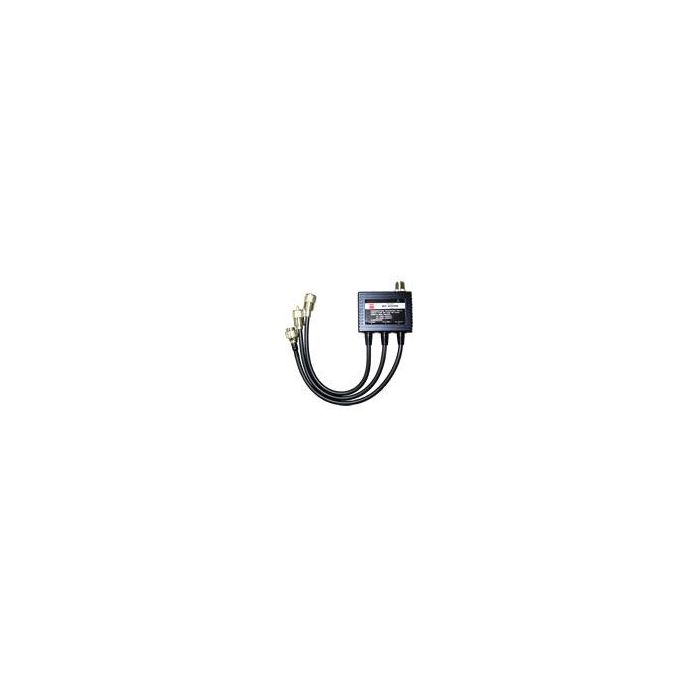

Diamond MX2000N Triplexer

Specifications:

• Port: LPF/BPF/HPF
• Frequency (MHz): 1.6-60/110-170/300-950
• CW W: 400/400/250
• PEP W: 800/800/500
• Loss dB: .15/.2/.25
• Isol dB: 60/60/60
• Mix Connector: SO-239
• Port Connector:  PL-259/12"5D Cable; PL-259/12" 5D Cable; N Male/12"5D Cable
