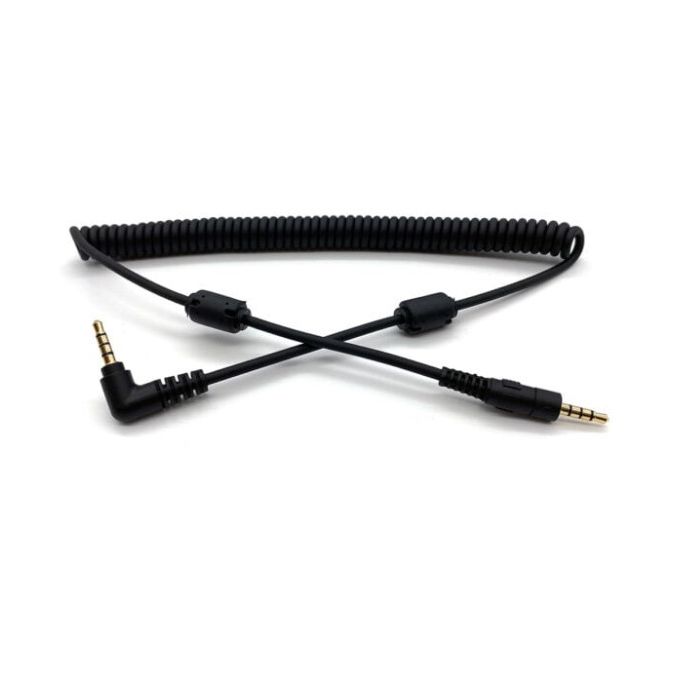

Digirig Interface Cable for Select Yaesu HTs

• Able works with Yaesu handy talkies (HT) models using 3.5mm TRRS connector
• Data cable allows digital modes and packet radio protocols as FT8, FT4, SSTV, APRS, Echolink, Allstar etc
• Great for working satellites (e.g. APRS and SSTV)
• Data cable combines audio and PTT control, plugs into Digirig’s audio socket
• Coiled cable keeps things nice and tidy by preventing knots and kinks
• About 24″ relaxed, 72″ fully stretched
• Shielded and RF choked with ferrite beads on both ends to prevent RFI
• Premium quality materials and craftsmanship

The audio cable requires Digirig Mobile Revision 1.6 or later (any configuration).

HTs that can be interfaced with the data cable

• Yaesu FT-2D, Yaesu FT-1XD, Yaesu VX-8, Yaesu FT-70D, Yaesu FT-60R, Yaesu VX-3, Yaesu FT-50, Yaesu FT-60, Yaesu FT-250, Yaesu FT-1DR, Yaesu FT-2DR, Yaesu FT-3DR, Yaesu FT-5DR, Yaesu VX-150, Yaesu VX-5, Yaesu VX-3R

• There was a report of PTT not working with Yaesu FT-3D – more data required. If yours doesn’t work, please reach out.

Note: Digirig mobile is available in four different configurations. Configuration only matters if your transceiver is capable of serial CAT control or if you plan to use Digirig for programming the radio (firmware or settings), and is not strictly required for digital operations. You can still share a Digirig in incompatible configuration with a CAT capable transceiver if you don’t connect the serial cable.
