Digirig Interface Kit for Elecraft KX2/KX3

• Combines audio codec and serial CAT interface
• Supports full featured CAT interface: PTT, bands, tuning etc. (not just VOX based PTT)
• Connects to your computer with a single USB connector
• Serial TxD/RxD lines can be switched to open-collector PTT/CW drivers controlled by RTS and DTR line of COM port
• Auxiliary connection points to CM108 codec – used in Allstar homebrew node builds
• Uses widely supported CP2102 serial interface (latest driver here) and CM108 audio codec (generic audio device – no driver necessary)
• Small, rugged, and sleek aluminum enclosure ideal for mobile operations

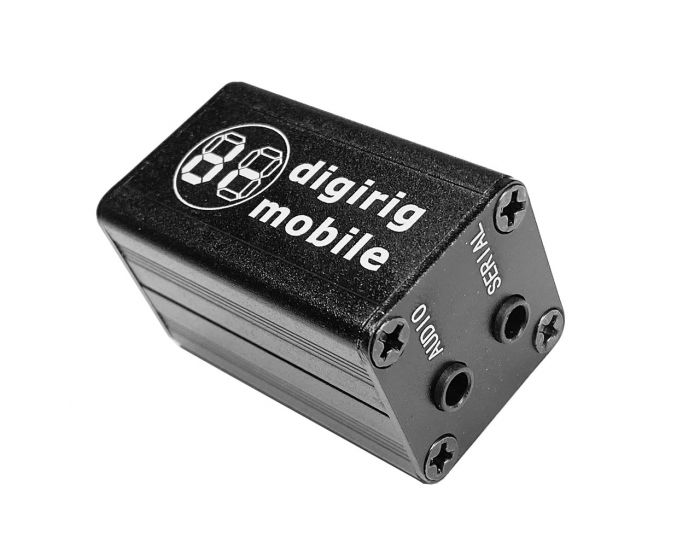

Digirig Mobile:

• Serial Interface:  3.3V TTL
• Weight:  0.1 lbs
• Dimensions:  1.5”×1”×1”

Coiled USB-A to USB-C cable:

• Weight:  0.01 lbs
• Dimensions:  6"×4"×0.75"

Elecraft KX2/KX3 Cables for Digirig Mobile:

• Weight:  0.3 lbs
• Dimensions:  4"×6"×1"

Digirig Kit Includes:

• Digirig Mobile
• Coiled USB-A to USB-C Cable
• Elecraft KX2/KX3 Cords for Digirig Mobile
• Carry case
