DV4 MOBILE

$35.00
DV4 MOBILE SKU: ZDV-DV4MOBILE

$35.00

This is a reservation. Purchase your spot in line with $35 today!

Check Store Stock

Huntsville Store:

Las Vegas:

This is a RESERVATION ONLY. Purchase your spot in line with $35 today and get the newest digital radio as soon as it becomes available.

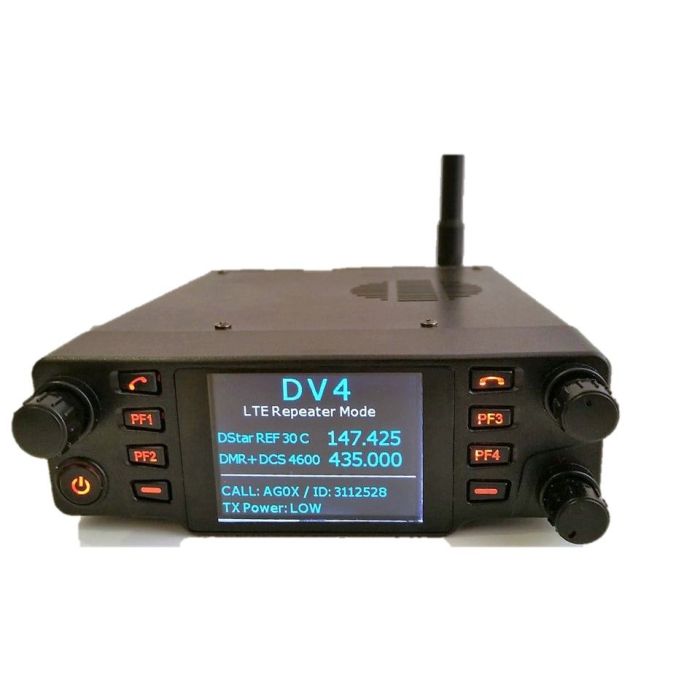

DV4Mobile All Mode Digital Tri-Band (2M, 222MHz, 440MHz) Transceiver plus LTE GPS

  • The DV4mobile supports all digital modes: no need for multiple radios, saving space and money.
  • It is programmed from the cloud: no need for programming and updating code plugs.
  • It is a software defined radio: future modes are just an update away.

The DV4mobile is another member of the successful family of DV4 products.

It operates in the 2 meter band, at 222 MHz and the 70cm band.

All modes are supported: C4FM, D-Star, DMRplus, dPMR, P25 (NXDN later via software update)Voice over LTE and of course, FM!

C4FM both narrow and wide band modes

D-Star (DCS,CCS,REF,XRF,XLX)

DMRplus (TS1 all / TS2 Reflectors or talkgroups)

dPMR(All Systems and codecs transparent mode)

P25(Phase 1 Only and all NAC transparent mode)

FM with PL and DCS tones and RDS for call sign transmission in the background

DV4LTE is a new voice over LTE mode that connects the radio to the reflector using an LTE connection.

The LTE modem connects to the CCS7 reflector system supplying codeplugs in the cloud, there is no need to program codeplugs any more. Any changes in the network, be it on the reflector, repeater or user side are instantly updated. Private settings such as local channels can be maintained on the web.

After a reset or with a new radio all settings are downloaded after entry of the CCS7 number.

When no repeaters are in range, the radio can revert to LTE (DV4LTE) for reflector connection (i.e. between metropolitan areas)

The GPS module provides location data for APRS and automatic display of repeaters in range. When a repeater is selected, frequency and mode is already in the radio, no programming!

Simplex repeater mode

The DV4mobile can also be used as a dual band, dual mode simplex repeater.

For example you can use it as a D-Star repeater on 2m and simultaneously as a DMR repeater on 70cm while conducting FM QSO on 222 MHz (USA version only)

The extreme temperature range from -40C to +85C ensures functionality even under the most extreme conditions.

** Get in line! Reserve yours today, risk free! **
Placing an order for this reservation entitles you to right of refusal on a first-come-first-serve basis when this radio becomes available for sale. Once the radio is available for purchase, you will be sent a email to complete your order. In most cases, reservation holders are offered a lower price than those who place their order after the radio is released.

DV4Mobile All Mode Digital Tri-Band (2M, 222MHz, 440MHz) Transceiver plus LTE GPS

Frequency range (USA)

144-148 MHz, 222-225 MHz, 420-450 MHz

Output power

2 x 20W simultaneously

Modes

FM, D-Star, C4FM, DMR+,,dPMR,P25*,NXDN*, DV4LTE

Microphone

DTMF, Electret with modular connector

Antenna

N

Speaker

3.5 mm, stereo 2 x 4W at 8 Ohms

Connectors via adapter cable and 2 x 12 pin connectors:

Ethernet

RJ-45 via adapter 10/100 MBit/s

serial

USB

External Monitor

HDMI

Internal display

240 x 320 pixel, 262k color

Power

10.5-15V, 5A

GPS

Antenna combined into main antenna

Temperature range:

-40C - + 85C
