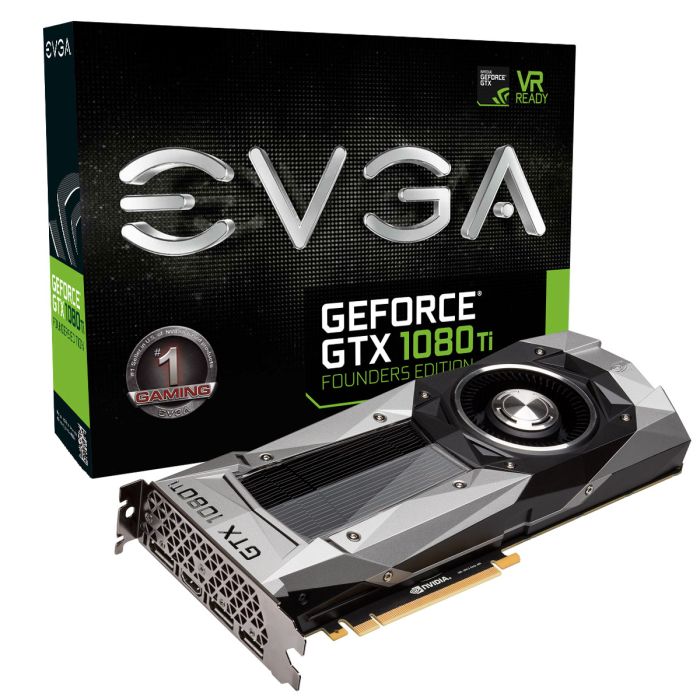

The EVGA GeForce GTX 1080 Ti is NVIDIA's new flagship gaming GPU, based on the NVIDIA Pascal architecture. The latest addition to the ultimate gaming platform, this card is packed with extreme gaming horsepower, next-gen 11 Gbps GDDR5X memory, and a massive 11 GB frame buffer.
The EVGA GeForce GTX 1080 Ti delivers truly next-generation VR performance, the lowest latency, and plug-and-play compatibility with leading headsets. It's all driven by NVIDIA VRWorks technologies and brought to life with amazing VR audio, physics, and haptics.
The next generation of EVGA Precision software has arrived with EVGA Precision XOC. This new version of Precision is built for the NVIDIA Pascal architecture and cobmines the best of EVGA Precision and EVGA OC Scanner to give you never before seen overclocking features and built in automatic overclock tuning.
Simultaneous Multi-Projection
Simulates seperate viewports of the same scene giving improved performance in VR and improved display accuracy in NVIDIA Surround
VR Ready
Discover next-generation VR performance, the lowest latency, and plug-and-play compatibility with leading headsets-driven by NVIDIA VRWorks technologies.
NVIDIA Ansel
Revolutionary new 360-degree image capture.
NVIDIA SLI w/ HB Bridge Support
NVIDIA's new SLI HB bridge doubles the available transfer bandwidth compared to the NVIDIA Maxwell architecture.
NVIDIA G-SYNC
NVIDIA G-SYNC monitors feature revolutionary NVIDIA technology that eliminates screen tearing while also reducing input lag. The result is the smoothest, fastest, and most responsive gaming experience ever seen.
NVIDIA GameStream
Stream extreme GeForce GTX PC gaming experiences to portable device like NVIDIA SHIELD with super-smooth, low-latency performance.
NVIDIA GPU Boost 3.0
Dynamically maximizes clock speeds based on workload and allows enthusiast-class controls such as temperature target and fan controls, extra over-voltage headroom, and optimizations for water-cooling solutions. This allows gamers to push performance to new levels.
Microsoft DirectX 12
Support for the latest Microsoft DirectX API to enable next-generation gaming.
Vulkan API
A next generation graphics and compute API from Khronos Group that provides high-efficiency, cross-platform access to modern GPUs.
OpenGL 4.5 Support
Supporting the latest standards in the OpenGL API.
PCI Express 3.0
This card is designed for the PCI Express 3.0 bus architecture, offering the highest data transfer speeds for the most bandwidth-hungry games and 3D applications. It also maintains backwards compatibility with existing PCI Express motherboards for the broadest support.
Max Digital Resolution - 7680x4320
DisplayPort 1.4 Ready supporting up to 7680x4320 resolution at 60Hz
Built for EVGA Precision XOC
This new version of Precision is built for the NVIDIA Pascal architecture and combines the best of EVGA Precision and EVGA OC Scanner to give you never before seen overclocking features and built in automatic tuning.
HDMI 2.0b, DisplayPort 1.4 and DVI (via Adapter)
The latest standards in DisplayPort and HDMI interfaces.
Performance
NVIDIA GTX 1080 Ti
3584 Pixel Pipelines
1480 MHz Base Clock
1582 MHz Boost Clock
336.6GT/s Texture Fill Rate
Memory
11264 MB, 352 bit GDDR5X
11000 MHz (effective)
484 GB/s Memory Bandwidth
Cooling
HSF
LED Logo: Yes (Green)
Interface
PCI-E 3.0 16x
DisplayPort, DisplayPort, HDMI, DisplayPort
Resolution & Refresh
Max Monitors Supported: 4
240Hz Max Refresh Rate
Max Digital : 7680x4320
Dimensions
Height: 4.376in - 111.15mm
Length: 10.5in - 266.7mm
Width: Dual Slot
Operating System Support
Windows 10 32/64bit
Windows 8 32/64bit
Windows 7 32/64bit
Requirements
Minimum of a 600 Watt power supply.
An available 6-pin PCI-E power connector and an available 8 pin PCI-E power connector
Total Power Draw : 250 Watts
Product Warranty
This product comes with a 3 year warranty. Registration is recommended.
