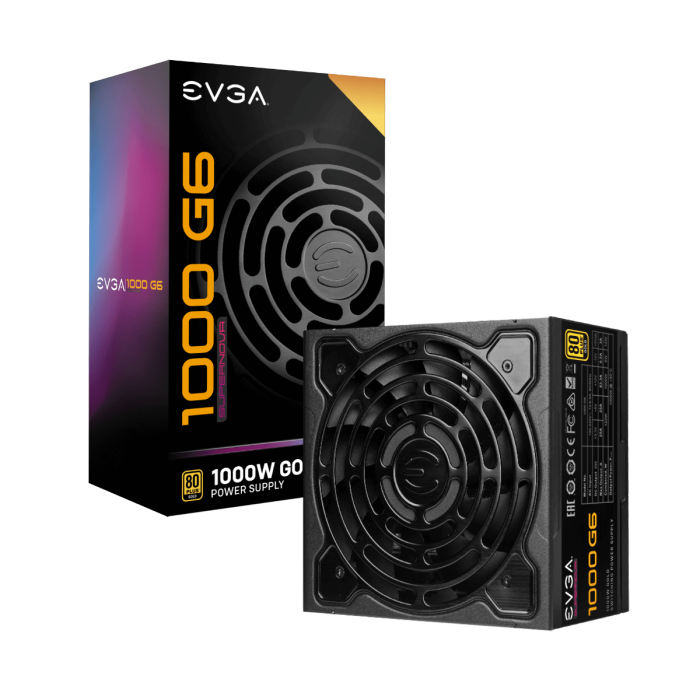

EVGA SuperNOVA 1000W 80+ Gold Fully Modular ATX PSU - 220-G6-1000-X1

SKU
CS1272
$229.99
Used & Open-Box: from $144.29
Add to Wish List
Out of Stock

Please see CS1300.

EVGA SuperNOVA 1000W 80+ Gold Fully Modular ATX PSU

EVGA SuperNOVA 1000 G6, 80 Plus Gold 1000W Power Supply, Fully Modular, Eco Mode with FDB Fan, Includes Power ON Self Tester, Compact 140mm Size

80 PLUS Gold certified, with 91% (115VAC) / 92% (220VAC~240VAC) efficiency or higher under typical loads

Fully Modular to reduce clutter and improve airflow

Unbeatable EVGA 10 Year Warranty and unparalleled EVGA Customer Support

100% Japanese Capacitors ensure long-term reliability

Fluid Dynamic Bearing Fan for ultra-quiet operation and increased lifespan.

EVGA ECO Intelligent Thermal Control System eliminates fan noise at low to medium loads

Active Power Factor Correction

Heavy-duty protections, including OVP (Over Voltage Protection), UVP (Under Voltage Protection), OCP (Over Current Protection), Dual OPP (Over Power Protection), SCP (Short Circuit Protection), and OTP (Over Temperature Protection)

Full-bridge LLC Resonant Converter and DC-DC design leads to tight voltage regulation and low ripple & noise

CABLE LENGTH:

ATX Cable            1x 600mm (m)

EPS Cable            2x 700mm (m)

PCIe Cable           2x 700mm, 3x 700mm, 820mm (m)

SATA Cable         4x 550mm, 650mm, 750mm (m)

Four-Pin Peripheral Cable             1x 550mm, 650mm, 750mm, 850mm (m)

Floppy Adapter 1x 100mm

AC Power            1x 1500mm (m)

Modular Cable Type        Full

CONNECTOR QUANTITY:

24 Pin ATX           1x 24pin

EPS (CPU)            2x 8pin (4+4)

PCIe       8x 8pin (6+2)

SATA     12x

Four-Pin Peripheral         4x

Floppy  1x

POWER SPECS:

AC Input              100-240V~, 13-6.5A, 60/50Hz

Rail         +3.3V    +5V        +12V      +5Vsb   -12V

Max Output        25A        25A        83.3A     3A           0.5A

125W     1000W  15W       6W

Total      1000W

ADDITIONAL DETAILS:

Operating Temperature 0° to 50° C

Japanese Capacitors       100%

ECO Mode          Yes

MTBF    100,000 Hours

Net Weight         8 lbs

Size        86mm (H) x 150mm (W) x 140mm (L)

Approvals            TUV, CB, CE, FCC, RCM, cTUVus, WEEE, RoHS, Compliance with ErP Lot 3 2014 Requirement

Fan Size / Bearing             135mm Fluid Dynamic Bearing

MFG P/N: 220-G6-1000-X1

UPC CODE: 843368068424
