Explorer Deluxe Battery Box - EXP-PBB

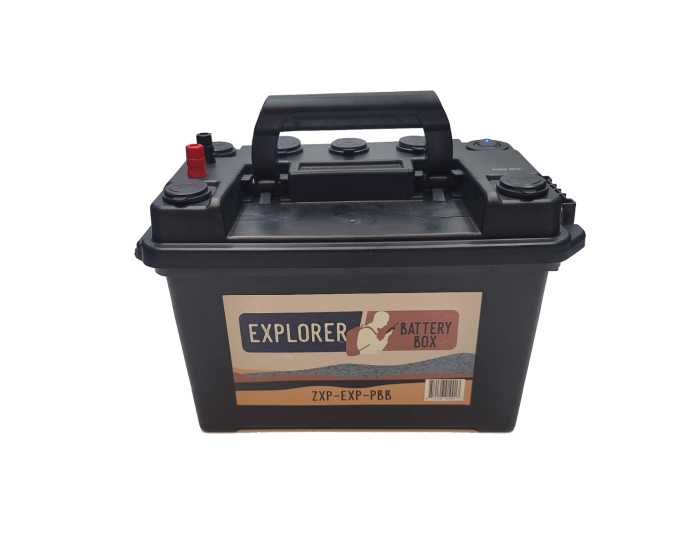

Explorer Deluxe Battery Box

The Explorer Deluxe Battery Box - designed from the ground-up to work with our PO4Power 12AH and 24AH batteries. However, this battery box is compatible with a wide range of batteries.

Features:

• Dedicated Anderson input for use with your compatible solar controllers without opening the box
• O-ring sealed
• Voltmeter to keep up with battery conditions
• On/off switch

Connections:

• 1x Set of Anderson connectors (Input)
• 4x Sets of Anderson connectors (Output)
• 4x USB-A 2.4A
• 1x USB-C Power Delivery
• 1x USB-A Quick Charge 3.0
• 1x Set of binding posts
• 1x Set of 30A inline fuses

To download the user manual, click here.

SPECIFICATIONS

Connections

• Input
  • 1x PowerPole 30A

• Output
  • 4x PowerPole 30A
  • 1x Red/Black 30A Binding Post
  • 1x USB-C Power Delivery Port
  • 3x USB-A QuickCharge 3.0 Port
  • 2x USB-A 5V/2A Ports

DIMENSIONS

• Exterior Dimensions
  • 11.1” L
  • 8.5” H
  • 5.75” W
• Max. Interior Dimensions
  • 10.9” L
  • 6.75” H
  • 5.75” W

• 1x ZXP-EXP-PBB Explorer Battery Box
• 2x Foam blocks (for securing the battery)
