Comet Antennas Vehicle Specific Dodge Left Side Bracket Antenna Mount Dodge 1500, 2500, 3500 - DG3ANTNCG

This antenna mounting bracket is designed for installation on these specific vehicles:

RAM Trucks                 2019—2022

Ram 1500  2500  3500

Tools Required:

10mm socket and driver, or 10mm box end wrench

Install location:

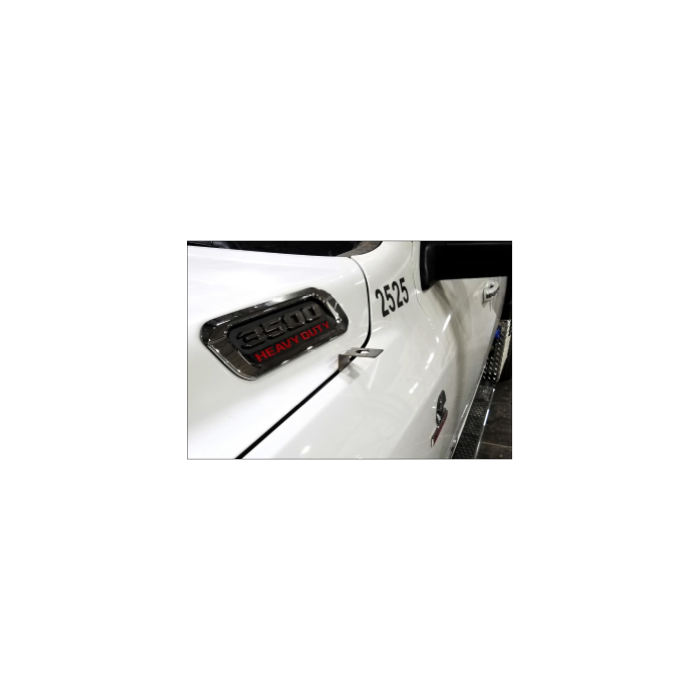

Left front fender

Please Read:  Always check for continuity between the bracket and chassis ground.  If there is a problem with grounding, place the provided star washer between the bracket and the fender.

Step 1)  Set the parking brake.  Open hood and locate 10mm bolt near the back of the front fender.  Remove bolt.

Step 2)  Align the antenna bracket with the bolt hole. Reinstall the bolt and tighten.

 ****You may need to adjust the vertical section of the bracket  that extends up through the hood gap for best fit****

 Step 3)  Insert the NMO or required connector to mate with the antenna and tighten securely.
