G7-220

$209.00
G7-220 SKU: ZHU-G7-220

$209.00

Ready to Ship!
Check Store Stock

Huntsville Store:

Las Vegas:

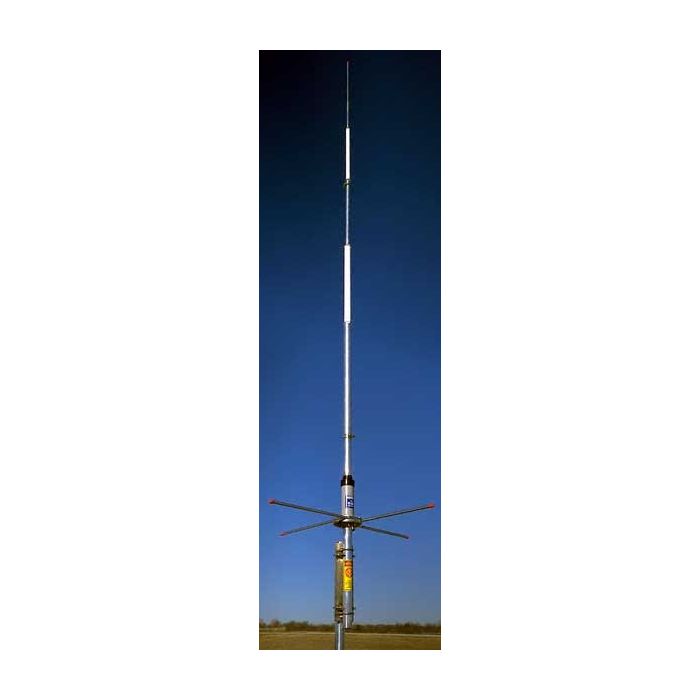

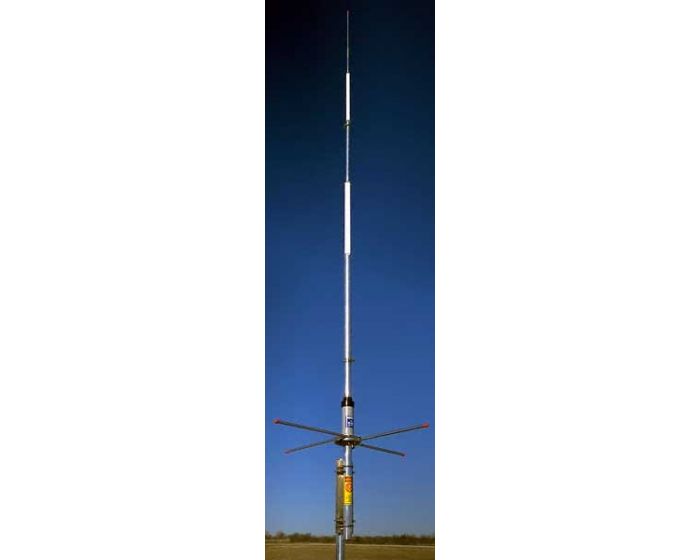

Hustler Antennas 220 MHz. Vertical G7-220 Omni Directional

7 dB Omni directional gain.
Special design for lowest possible angle and maximum efficiency.
Low angle radiation for maximum signal.
Highest quality materials for top durability and weather resistance.
DC grounded radiator.

Electrical:

  • Radiation Pattern: Omni directional.
  • SWR: 1.2:1 at resonance
  • Maximum power input: 600 watts
  • Gain: 7 dBd
  • Impedance: 50 ohms nominal
  • Lightning Protection: Shunt fed direct ground


Mechanical:

  • Length: 9'9" long, telescopic to 3/8" O.D.
  • Weight: 10 lb.
  • Radials: Four 20.25" x 0.375" O.D.
  • Connector: Type N female
  • Windload: 26 lb. at 100 mph
  • Wind Survival: 100 mph
  • Mounting: Vertical support up to 1.75 in. O.D. pipe

Electrical:

  • Radiation Pattern: Omni directional.
  • SWR: 1.2:1 at resonance
  • Maximum power input: 600 watts
  • Gain: 7 dBd
  • Impedance: 50 ohms nominal
  • Lightning Protection: Shunt fed direct ground


Mechanical:

  • Length: 9'9" long, telescopic to 3/8" O.D.
  • Weight: 10 lb.
  • Radials: Four 20.25" x 0.375" O.D.
  • Connector: Type N female
  • Windload: 26 lb. at 100 mph
  • Wind Survival: 100 mph
  • Mounting: Vertical support up to 1.75 in. O.D. pipe

Electrical:

  • Radiation Pattern: Omni directional.
  • SWR: 1.2:1 at resonance
  • Maximum power input: 600 watts
  • Gain: 7 dBd
  • Impedance: 50 ohms nominal
  • Lightning Protection: Shunt fed direct ground


Mechanical:

  • Length: 9'9" long, telescopic to 3/8" O.D.
  • Weight: 10 lb.
  • Radials: Four 20.25" x 0.375" O.D.
  • Connector: Type N female
  • Windload: 26 lb. at 100 mph
  • Wind Survival: 100 mph
  • Mounting: Vertical support up to 1.75 in. O.D. pipe
