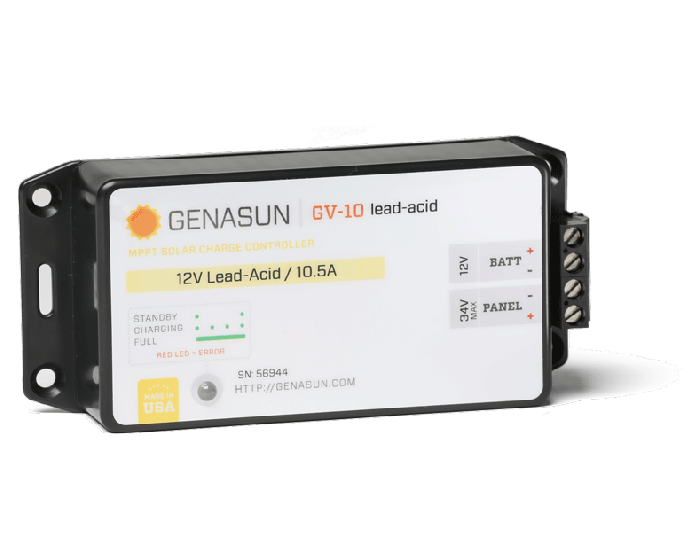

Genasun 10A MPPT Solar Charge Controller for Lead Acid Batteries



So you paid for a 140 Watts solar panel, and now you want to get your money’s worth. The GV-10 extracts more power from any given panel than a PWM or other MPPT controllers. PWMs may offer a lower controller cost, the GV-10 MPPT controller delivers more power reducing the cost per watt by 10-30%. The GV-10 is the ultra-high-speed MPPT solar controller.

  • Maximum recommended panel power 140W, 10.5 A charging current.  Advanced Multi-Stage charge profile for 12V Lead-Acid/AGM/Gel/Sealed/Flooded batteries.
  • High-Speed MPPT: speed tracking 15 Hz (15 times per sec.)
  • 98.3% Peak Efficiency and Tiny Night Consumption (0.9 mA)
  • Advanced electronic protections for reverse panel and battery polarity.
  • 5-Year Warranty, Made in the USA, certified cETLus, Class 1 Div.2, conform to CE, FCC, RoHS.



Charge Profile:

    Flooded batteries (Jumper ON):
  • Bulk Voltage: 14.6 V
  • Absorption Voltage: 14.4 V
  • Absorption Time: 2.5 hours
  • Float Voltage: 13.5 V
  • Equalization Voltage: 15 V
  • Equalization Time: 2h (every 30 days)
    Sealed batteries (Jumper OFF):
  • Bulk Voltage: 14.3 V
  • Absorption Voltage: 14.1 V
  • Absorption Time: 2.5 hours
  • Float Voltage: 13.7 V

Features:

  • MPPT BUCK technology
  • LED indicator for battery state of charge
  • 98.3% Peak Efficiency
  • High-speed MPPT Tracking (15 times per sec)
  • Advanced electronic protection (over-temperature, panel overload, battery and panel switched, reverse battery polarity, reverse panel polarity)
  • Tiny self-consumption
  • Radio Silence, HAM Radio friendly
  • Made in the USA
  • 5-Year Warranty

Specification:

  • Max. Recomm. Panel Power: 140 W
  • Rated Battery (Output) Current: 10.5 A
  • Max Panel Voltage: 34 V
  • Max. Recomm. Panel Voc at STC: 27 V
  • Min. Battery Voltage for Operation: 8.5 V
  • Operating Temp. Range: -40 °C - 85 °C
  • Night Consumption: 0.9 mA
  • Environmental Protection: IP40, Conformal Coating, Nickel-Plated Brass & Stainless Hardware
  • Connection: 4-position terminal block for 10-30 AWG wire
  • Weight: 6.5 oz., 185 g
  • Dimensions: 5.5" x 2.5" x 1.29"
  • Certifications: cETLus, Class 1 Div. 2, CE, FCC, RoHS
