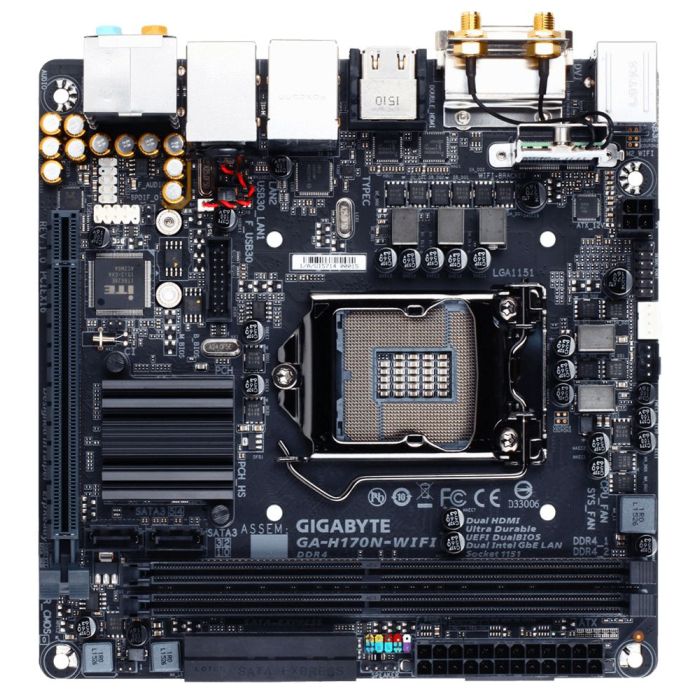

GIGABYTE H170N WIFI LGA1151 Mini-ITX Motherboard

GIGABYTE 100 series motherboards support the latest 6th Generation Intel® Core™ processors, a 14nm desktop CPU which features improved performance, power efficiency and support for DDR4 memory, bringing cutting edge features and ultimate performance to your next PC build.
  • Supports 6th Generation Intel® Core™ Processor
  • Dual Channel DDR4, 2 DIMMs
  • Intel® USB 3.0 with USB Type-C™ - The World's Next Universal Connector
  • 11ac 867 Mbps dual band wireless connection + BLUETOOTH 4.2
  • PCIe Gen3 x4 M.2 Connector with up to 32Gb/s Data Transfer (PCIe & SATA SSD support)
  • 2 SATA Express Connectors for up to 16Gb/s Data Transfer
  • 115dB SNR HD Audio with Built-in Rear Audio Amplifier
  • High Quality Audio Capacitors and Audio Noise Guard with LED Trace Path Lighting
  • Dual Intel® GbE LAN with cFosSpeed Internet Accelerator Software
  • APP Center Including EasyTune™ and Cloud Station™ Utilities
  • GIGABYTE UEFI DualBIOS™ Technology
  • Support Intel® Small Business Basics

CPU:

  • Support for Intel® Core™ i7 processors/Intel® Core™ i5 processors/ Intel® Core™ i3 processors/Intel®Pentium® processors/ Intel® Celeron® processors in the LGA1151 package
  • L3 cache varies with CPU
(Please refer "CPU Support List" for more information.)

Chipset:
  • Intel® H170 Express Chipset
Memory:
  • 2 x DDR4 DIMM sockets supporting up to 32 GB of system memory
    * Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed.
  • Dual channel memory architecture
  • Support for DDR4 2133 MHz memory modules
  • Support for ECC UDIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
  • Support for non-ECC UDIMM 1Rx8/2Rx8/1Rx16 memory modules
(Please refer "Memory Support List" for more information.)

Onboard Graphics: Integrated Graphics Processor-Intel® HD Graphics support
  • 1 x DVI-D port, supporting a maximum resolution of [email protected] Hz
    * The DVI-D port does not support D-Sub connection by adapter.
  • 2 x HDMI ports, supporting a maximum resolution of [email protected] Hz
    * Support for HDMI 1.4 version.
  • Support for up to 3 displays at the same time
  • Maximum shared memory of 512 MB
Audio:
  • Realtek® ALC1150 codec
  • High Definition Audio
  • 2/4/5.1/7.1-channel
  • Support for S/PDIF Out
LAN:
  • 2 x Intel® GbE LAN chips (10/100/1000 Mbit)
Wireless Communication module:
  • Wi-Fi 802.11 a/b/g/n/ac, supporting 2.4/5 GHz Dual-Band
  • BLUETOOTH 4.2, 4.1, BLE, 4.0, 3.0, 2.1+EDR
  • Support for 11ac wireless standard and up to 867 Mbps data rate
    * Actual data rate may vary depending on environment and equipment.
Expansion Slots:
  • 1 x PCI Express x16 slot, running at x16
    (The PCIEX16 slot conforms to PCI Express 3.0 standard.)
  • 1 x M.2 Socket 1 connector for the wireless communication module (M2_WIFI)
Storage Interface:Chipset:
  • 1 x M.2 Socket 3 connector on the back of the motherboard
  • 2 x SATA Express connectors
  • 6 x SATA 6Gb/s connectors
  • Support for RAID 0, RAID 1, RAID 5, and RAID 10
    * Refer to "1-7 Internal Connectors," for the supported configurations with the M.2, SATA Express, and SATA connectors.
USB:Chipset:
  • 2 x USB 2.0/1.1 ports available through the internal USB header
  • 6 x USB 3.0/2.0 ports (4 ports on the back panel, 2 ports available through the internal USB header)
  • 1 x USB Type-C™ port on the back panel, with USB 3.0 support
Internal I/O Connectors:
  • 1 x 24-pin ATX main power connector
  • 1 x 4-pin ATX 12V power connector
  • 6 x SATA 6Gb/s connectors
  • 2 x SATA Express connectors
  • 1 x M.2 Socket 3 connector
  • 1 x CPU fan header
  • 1 x system fan header
  • 1 x front panel header
  • 1 x front panel audio header
  • 1 x USB 3.0/2.0 header
  • 1 x USB 2.0/1.1 header
  • 1 x S/PDIF Out header
  • 1 x speaker header
  • 1 x Clear CMOS jumper
  • 1 x chassis intrusion header
Back Panel Connectors:
  • 1 x PS/2 keyboard/mouse port
  • 2 x HDMI ports
  • 2 x SMA antenna connectors (2T2R)
  • 1 x DVI-D port
  • 4 x USB 3.0/2.0 ports
  • 1 x USB Type-C™ port, with USB 3.0 support
  • 2 x RJ-45 ports
  • 1 x optical S/PDIF Out connector
  • 5 x audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Line In, Line Out, Mic In)
I/O Controller:
  • iTE® I/O Controller Chip
H/W Monitoring:
  • System voltage detection
  • CPU/System temperature detection
  • CPU/System fan speed detection
  • CPU/System overheating warning
  • CPU/System fan fail warning
  • CPU/System fan speed control
    * Whether the fan speed control function is supported will depend on the cooler you install.
BIOS:
  • 2 x 64 Mbit flash
  • Use of licensed AMI UEFI BIOS
  • Support for DualBIOS™
  • PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features:
  • Support for APP Center
    * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
    3D OSD
    @BIOS
    AutoGreen
    Cloud Station
    EasyTune
    Easy RAID
    Fast Boot
    Smart TimeLock
    Smart Keyboard
    Smart Backup
    System Information Viewer
    USB Blocker
  • Support for Q-Flash
  • Support for Smart Switch
  • Support for Xpress Install
Bundle Software:
  • Norton Internet Security (OEM version)
  • Intel® Smart Response Technology
  • Intel® Wireless Display
  • cFosSpeed
Operating System:
  • Support for Windows 10/8.1/7*
    * Please download “Windows® USB Installation Tool” to install Windows® 7.
Form Factor:
  • Mini-ITX Form Factor; 17.0cm x 17.0cm
Remark:
  • Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
  • Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.
