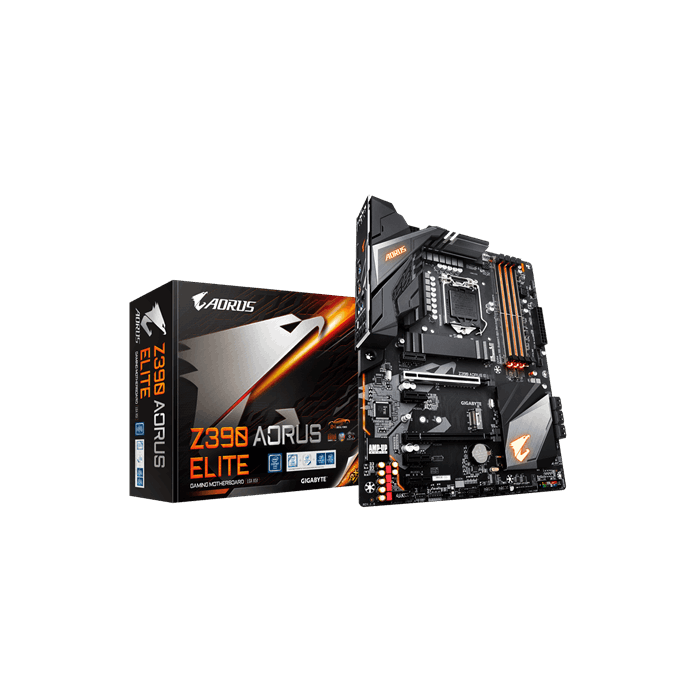

GIGABYTE Z390 AORUS ELITE ATX Motherboard

SKU
MB1280
$179.99
Add to Wish List
Out of Stock

This item is currently out of stock. We are not accepting backorders at this time.

GIGABYTE Z390 AORUS ELITE Intel Z390 AORUS Motherboard with 12 Phases Digital VRM Solutions, Screw Mounted Heatsinks, RGB Fusion, Dual M.2 with Single Thermal Guard, Intel® GbE LAN with cFosSpeed, Front USB 3.1 Gen 1 Type-C™

  • Supports 9th and 8th Gen Intel® Core™ Processors
  • Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
  • Intel® Optane™ Memory Ready
  • 12+1 Phases Digital VRM Solution with DrMOS
  • Advanced Thermal Design with Screw Mounted Heatsinks
  • ALC1220-VB Enhance 114dB(Rear)/ 110dB(Front) SNR in Microphone with WIMA Audio Capacitors
  • Intel® Gigabit LAN with cFosSpeed
  • RGB FUSION with Multi-Zone LED Light Show Design, Supports Addressable LED & RGB LED Strips
  • Smart Fan 5 features Multiple Temperature Sensors and Hybrid Fan Headers with FAN STOP
  • Front USB 3.1 Gen 1 Type-C™ Header
  • Dual Ultra-Fast M.2 with PCIe Gen3 x4 interface
  • CEC 2019 Ready, Save Power With a Simple Click
  • Supports 9th and 8th Gen Intel® Core™ Processors
  • Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
  • Intel® Optane™ Memory Ready
  • 12+1 Phases Digital VRM Solution with DrMOS
  • Advanced Thermal Design with Screw Mounted Heatsinks
  • ALC1220-VB Enhance 114dB(Rear)/ 110dB(Front) SNR in Microphone with WIMA Audio Capacitors
  • Intel® Gigabit LAN with cFosSpeed
  • RGB FUSION with Multi-Zone LED Light Show Design, Supports Addressable LED & RGB LED Strips
  • Smart Fan 5 features Multiple Temperature Sensors and Hybrid Fan Headers with FAN STOP
  • Front USB 3.1 Gen 1 Type-C™ Header
  • Dual Ultra-Fast M.2 with PCIe Gen3 x4 interface
  • CEC 2019 Ready, Save Power With a Simple Click
  • Mfr Part Number: Z390 AORUS ELITE
  • CPU: LGA1151
    • Supports Intel Core 9000 series, 8th Generation Intel Core i7/ i5/ i3/ Pentium/ Celeron Processors
    • L3 cache varies with CPU
  • Chipset: Intel Z390 Express
  • Memory: 4x DDR4-2666/ 2400/ 2133 MHz DIMM Slots, Dual Channel, Non-ECC, Unbuffered, Max Capacity of 64GB
  • Slots: 2x PCI-Express 3.0 x16 Slots(one runs at x4), 4x PCI-Express 3.0 x1 Slots
  • Multi-Graphics: Supports AMD Quad-GPU, 2-Way CrossFireX Technology
  • Storage:
    • SATA: 6x SATA3 Ports, Support RAID 0, 1, 5, 10
    • M.2: 2x M.2 Ports (w/ M Key), one supports type 2242/2260/2280/22110 SATA and PCIe x4/ x2 SSD (M2A); one supports type 2242/2260/2280 SATA and PCIe x4/x2 SSD (M2M)
  • Audio: Realtek ALC1220-VB 7.1-Channel High Definition Audio CODEC
  • LAN: Intel Gigabit Ethernet Controller
  • Ports: Ports: 2x USB 3.1 Gen 2 Port (Type-A rear), 1x USB Type-C Port (via header, with USB 3.1 Gen 1 support), 6x USB 3.1 Gen 1 Ports (4 rear, 2 via header), 8x USB 2.0/1.1 Ports (4 rear, 4via headers), 1x HDMI Port, 1x optical S/PDIF Out connector, 1x RJ45 LAN Port, Audio I/O Jacks
  • Power Connector: 1x 24pin ATX Main Power Connector, 1x 8pin ATX 12V Power Connector, 1x 4-pin ATX 12V power connector
  • Form Factor: ATX , 30.5 x 24.4 cm
