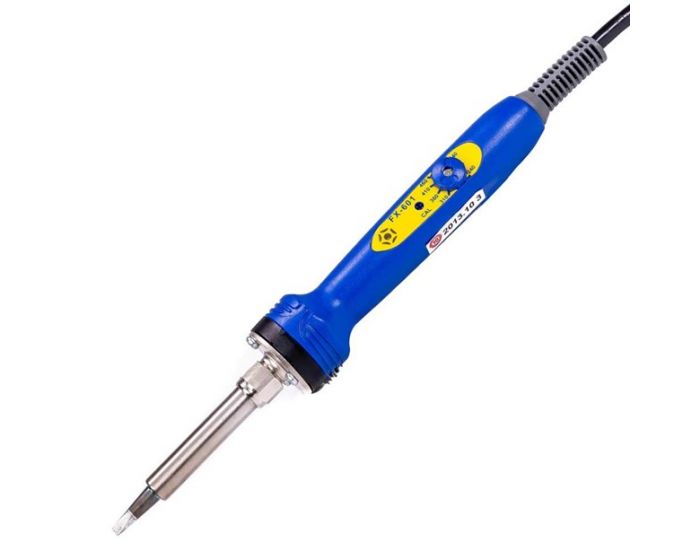

Hakko FX-601 Soldering Iron

The 67W Hakko FX-601 dial temperature soldering iron is ideal for soldering applications that require mobility or a long reach. The slender, ergonomic handpiece allows you to solder for long periods of time without hand fatigue.

  • Temperature range: 464°-1004°F
  • Ceramic heating element
  • Temperature control sensor in heater ensures consistent heat
  • Efficient heating (requires less energy = less wattage needed)
  • FAST thermal recovery
  • Slender, ergonomic handpiece 3-wire power cord
  •  Power Consumption:      67W, 120V
  •  Tip-to-Ground Resistance:       < 2 Ω
  •  Tip-to-Ground Potential:     < 2 mV
  •  Temperature Range:      240-540°C (464-1004°F)
  •  Temp Accuracy: ±10°C (±18°F)
  •  Temp Stability:  ±1.0°C (±1.8°F) at idle temperature
  •  Heater Type:    Ceramic
  •  Tips:       T19 Series

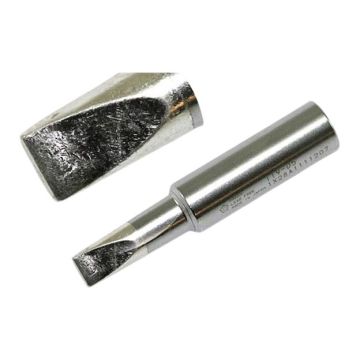

  •  Standard Tip:    T19-D5
  •  Length (w/o cord):          235 mm (9.25 in.) w/T19-D5 tip
  •  Weight (w/o cord):        68g (0.15 lb.) with T19-D5 tip
  •  Reach:   1.8m (6.0 ft.)
  •  Safety Approval:
  • Soldering Iron:  FX-600
  • Lock Key:   B3707
  • Standard Tip:   T19-D5
