Ham Radio Signal Transfer RF Sampler 1-300Mhz
Proudly made in the USA!
No capacitors.
Repeatable Reliable Results.
RF rating: 10 KW PEP 1-30Mhz = / = 5 KW 30-150 Mhz =/= 2KW 150-300 Mhz
1 KW = 1.4 v peak to peak +/- 5% at port @ 3.8 Mhz
100 Watts =140 Mv Pp@3.8 Mhz
*At higher freq. you will see slightly more signal voltage to your test equipment.
This is per design.
Impedance: 50 Ohms
Loss: 0.01% or less
No Computer needed
BNC Sampling Port
SO-239 Antenna/Radio Connections
Currently used in 4 countries &27 US states.
1 year replacement warranty (electronics only, excludes connector damage or intentional damage).
Designed to last 20+ years in continuous service.
This product allows you to sample small amounts of RF from the line to send to a scope, freq. counter or other devices.
Sample RF without stray signal in the shack, no ground loops, no capacitors, clean honest sample.

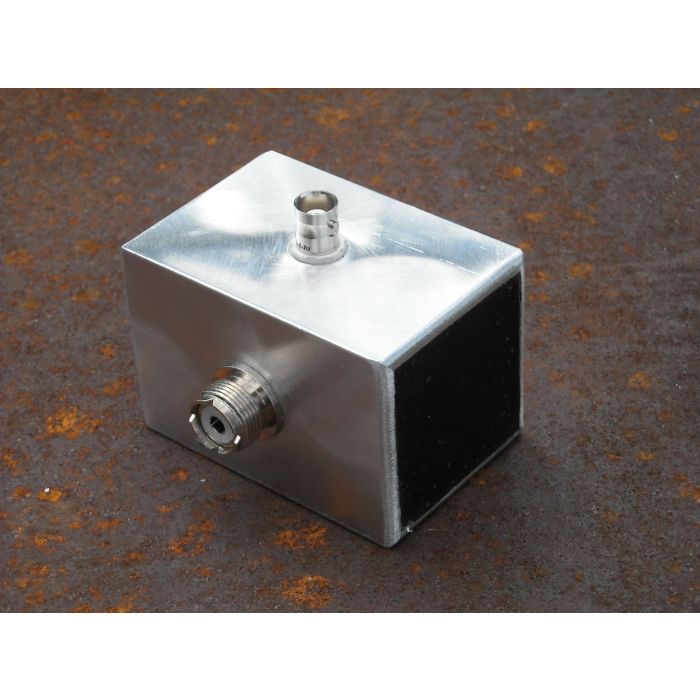

All passive electronics are encapsulated with electronic epoxy potting compound, inside a robust machined aluminum chassis.
Connectors are the best available RF rated so-239 connectors.
10 KW PEP rating with nearly no loss, thanks to the feed-through design.
Overbuilt and tested under extreme conditions.
Each unit tested to 10 KW PEP before shipment.
May be used indoor or outdoor.
Dimensions: 2"x2"x3"
HAM RADIO SIGNAL TRANSFER , RME 43 OR ANY PARTNERS WILL NOT BE RESPONSIBLE FOR ANY INJURY OR DAMAGE TO ANY PERSON, PLACE OR THING RESULTING FROM THE MISUSE OF THIS DEVICE.
