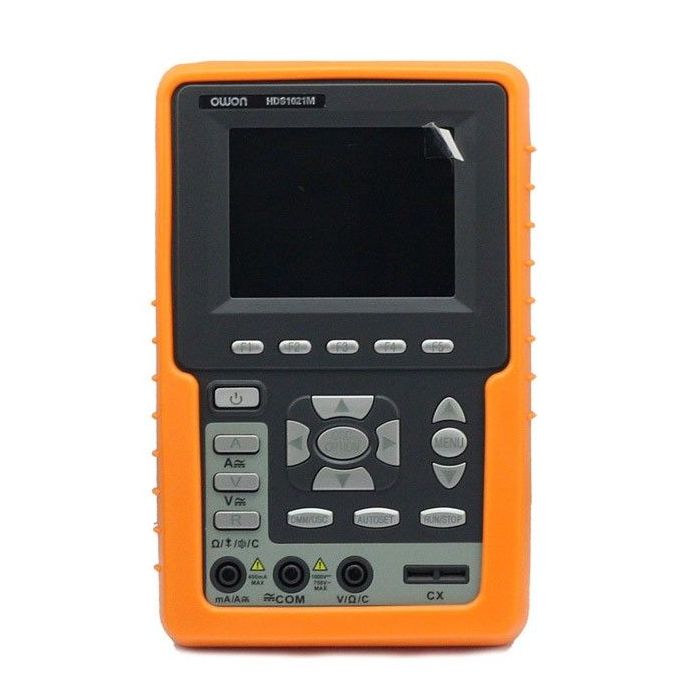

Handheld Digital Storage Oscilloscope OWON HDS1021M HDS

The Owon HDS1021M is a handheld electrical test device that combines a 20 MHz, single-channel, handheld digital oscilloscope for viewing electrical signals with a manual- and auto-ranging digital multimeter for measuring AC and DC voltage to 400V, AC and DC current to 20 amp, resistance to 40 MΩ, and capacitance to 100 μF. The oscilloscope has maximum real-time sample rate of 100MS/s and a record length of 6,000 points for acquiring detailed waveforms. Its 18 automatic measurements such as period, frequency, and peak-to-peak enable an in-depth analysis of waveforms. Up to four waveforms can be stored in the internal memory. The multimeter has two ranging modes: manual, which allows the user to select the operating range, and auto, which automatically selects the appropriate operating range. The delta relative function allows a measurement to be set as a reference value and displays subsequent measurements as a positive or negative deviation from that value, and the data-hold function freezes a reading on the display to aid documentation. A continuity buzzer confirms that the circuit conducts electricity, and a diode check detects whether a circuit's diodes are working properly. Additional specifications include a rise time of 17.5 ns and various triggering features. The unit has a 3.5" color TFT (thin film transistor) LCD with a resolution of 320 x 240 pixels for viewing waveforms and measurements. An oscilloscope is used for electronics applications such as product design, assembly lines, repair and servicing, and electrical engineering education, among others. A multimeter is an electrical testing tool for measuring multiple properties of an electrical circuit to verify proper operation or diagnose problems.

The unit has a USB port for connecting to a PC and includes Microsoft Windows compatible software for transmitting data and remote operation. It meets EN (European Standard) 61010-1:2001 safety standard, and is rated for CAT II installations to 400V, which covers energy-consuming equipment connected to a fixed installation, including household, office, and laboratory. It has European Conformity (CE) marking. It comes with an oscilloscope voltage probe; a set of test leads; an extension module for large current measurement; an extension module for small capacitance measurement; an output terminal for testing of 1 kHz/5V square-wave signal; probe adjustment tools; a USB interface cable; CD-ROM PC software; a rechargeable lithium ion battery; a battery charger/AC adapter for 100 to 240V, 50/60Hz; and instructions.
Handheld Digital Storage Oscilloscope OWON HDS1021M HDS

1. Autoscale
2. 20 Automatic Measurements
3. 3 in 1(DSO+Multimeter+Cymometer)
4. 20MHz Bandwidth
5. Support USB for data transmission to PC
6. TFT true 4096 color display (320x240)

Bandwidth

20MHz

Sample rate(Real time)

100MS/s

Horizontal Scale(S/div)

5ns/div~100s/div, step by 1~2.5~5

Rise time (at input, typical)

≤17.5ns

Channels

Single

Display

3.5”color display with TFT panel (320×240 pixels)

Input impedance

1MΩ±2%in parallel with 18pF±5pF

Probe attenuation factor

1X, 10X, 100X, 1000X

Max. input voltage

400V (DC + AC PK-PK, 1MΩ input impedance, Probe attenuation 10:1)

DC gain accuracy

±3%

DC accuracy(Average)

Average≥16:±(3% reading+0.05div) for ΔV

Probe attenuation factor

1X, 10X, 100X, 1000X

LF respond(AC, -3dB)

≥5Hz(at input, AC coupling, -3dB)

Record length

Max.6000 points for each channel

Interpolation

(sin x)/x

Input coupling

DC, AC, GND

Acquisition modes

Sample, Peak Detect and Average

Vertical resolution (A/D)

8 bit

Vertical sensitivity

5mV/div~5V/div(at input)

Trigger type

Edge, Video

Trigger mode

Auto, Normal, Single

Trigger level

±6 divisions from screen center

Automatic measuremant

PK-PK, Average, RMS, Frequency, Cycle, Vmax, Vmin, Vtop, Vmin, Vamp, Rise Time. -Width, +Duty,-Duty, Overshoot, Preshoot

Waveform storage

4 waveforms

Communication interface

USB

Cymometer

Available

Power supply

100V-240V AC, 50/60Hz

Li-ion battery

7.4V, 6 hours operation

Multimeter Specification

Full scale reading

3 digits (Max.4000-count)

Input Impedance

10MΩ

Capacitance

51.2nF-100uF:±(3%±3 digit)

Voltage

VDC:400mV,4V, 400V: ±(1±1digit) Max. input: DC 1000V,
VAC:4V,40V,400V:±(1±3digit) Frequency:40Hz-400Hz, Max. input: AC 750V(virtual value)

Current

DCA:40mA, 400mA:±(1.5%±1 digit) 20A:±(3%±3digit)
DAA:40mA±(1.5%±3digit) 400mA:±(2±1digit) 20A:±(3%±3digit)

Impedance

400Ω:±(1%±3digit), 40Ω


1x Power adapter
1x Oscilloscope Probe(grey)
2x Multimeter test lead(black and red)
1x Extension module for big current measurement
1x Module for small capacitance measurement
1x Probe adjustment tools
1x USB communication cable
1x CD-ROM (software)
1x Soft carrying case
