Description
Hantek 6022BE PC Based USB Digital Oscilloscope
Extremely Durable Anodized Aluminum Case
Features one USB 2.0 port and the Standard USBXITM interface, No Extra Power Cord Needed
Works with a Laptop or Desktop
Compact size, easy to carry
Supported Windows OS: Windows 2000/NT/XP/VISTA/Windows 7,FFT
Saves Waveform on screen in TXT,JPG/BMP, MS Excel/Word formats
Saved waveform files can be sent as email attachments
Features
Hantek 6022BE PC Based USB Digital Oscilloscope
Specifications
Hantek 6022BE PC Based USB Digital Oscilloscope
Channel: 2 Channels
Bandwidth: 20MHz
Shot bandwidth: DC to 20MHz
Input Impandence: 1Mohm 25pF
Max. Sample rate: 48MS/s
Vertical resolution: 8Bit
Gain range: 20mV-5V, 8Steps
DC accuracy: ±3%
Timebase range: 1ns-9000s, 39 Steps
Vertical adjustable: Yes
Input protection: Diode clamping
X-Y: Yes
Trigger Mode: Auto, Normal and Single
Trigger Slope: +/-
Trigger level adjustable: Yes
Trigger Type: Rising edge, falling edge
Trigger Source: CH1, CH2
Pre/Post trigger: 0-100%
Sampling selection: Yes
Waveform Display: port/line, waveform average, persistence, intensity
Network: Open/Close
Vertical mode: CH1, CH2, Dual, ADD
Cursor measurement: Yes
Math: FFT, addition, subtraction, multiplication, division.
Cursor: Frequency, Voltage

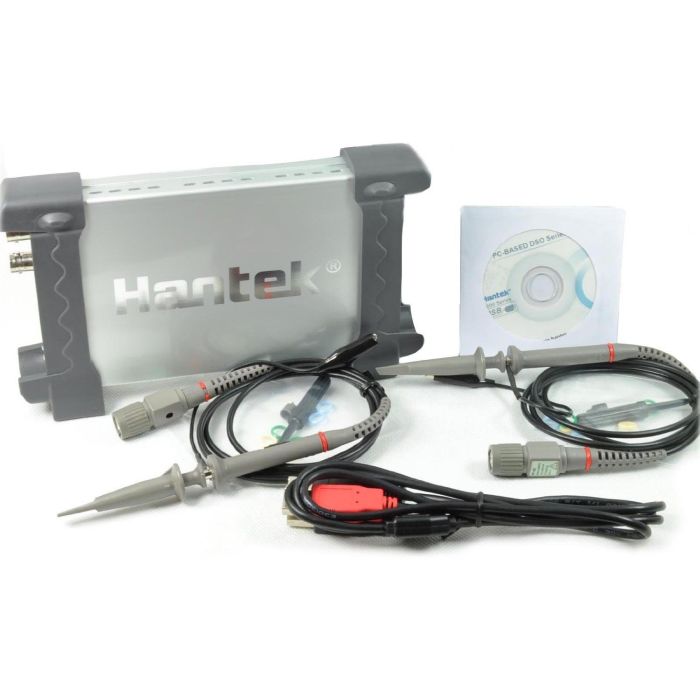

Includes
1 x PC BASED USB DIGITAL STORAGE OSCILLOSCOPE
1 x S/W and Driver CD
2 x Clip Probes
1 x User Manual On the CD
1 x USB cord
