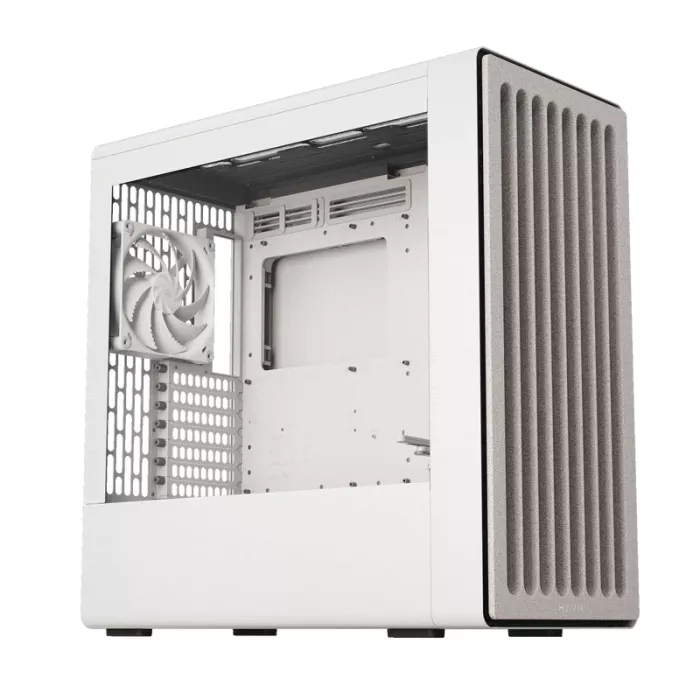

HAVN BF 360 Flow Mid Tower 2x180mm & 1x140mm fan White RTL Chassis

Name: HAVN BF 360 Flow Mid Tower 2x180mm & 1x140mm fan White RTL Chassis
Brand: HAVN
SKU: CS2577
Price: 221.99 USD
Availability: InStock

SKU: CS2577

Availability:

In stock

$221.99

VIP Price

After Mail-In Rebate

SAVE $8.00

Regular Price: $229.99

Free Shipping

Description

Features

Specifications

Feature	Detail
Form Factor	Mid Tower
Material	SGCC sheet metal, tempered glass, ABS, Nylon, Silicon, Zinc alloy, NdFeB magnets
PC Case Dimensions (L x W x H)	515 x 254 x 522.6 mm
Net Weight	14.79 kg
Warranty	1 year
Front I/O	USB 3.2 Gen 2 Type-C x1 USB 3.2 Gen 1 Type-A x2 Audio Jack x1 Power & Reset Button x1
Motherboard Support	E-ATX* / ATX / Micro-ATX / ITX *To install an E-ATX motherboard, the built-in GPU support bracket must be removed.
Expansion Slots	7
Fan Support	Maximum Amount:6 Top: 2 x 180 mm / 2 x 140 mm / 3 x 120 mm Front: 2 x 180mm Left: N/A Right: N/A Bottom: N/A Rear: 1 x 140mm / 1 x 120mm
Fan PWM Repeater	Fan Ports: 1x PWM repeaters, 6 ports total Location: 1x Cable Management Tray Fan Connectors: 6 ports per repeater x 4-pin PWM (Connect your primary fan to the white port to control PWM signal. All other ports mirror the white port's signal.) Fan Rated Voltage: 12V Fan Safety Current: Up to 2.6A across 6 ports Power Connector: 1 x SATA Power Power Safety Current: 1x SATA connector power input, 12V → 2.6A (max)
CPU Tower Cooler Clearance	Height: Up to 195 mm
Liquid Cooling Support	Top: 240 / 280 / 360 mm Front: N/A Left: N/A Right: N/A Bottom: N/A AIO Thickness Support: Up to 60mm
Graphics Card Clearance	Length: Up to 410 mm Width: Up to 195 mm
GPU Support	1 – 4.5 Slots
RAM Clearance	If the radiator & fans thickness is greater than 80 mm: 280 mm - 40 mm / 360 mm - 60 mm
Power Supply Support	ATX Length: Up to 200mm (Clearance - 260mm)
Storage	Right Mount: 2 Storage Bays: 2 x 3.5'' / 4 x 2.5'' Cable Management Tray: 1 Storage Bay: 1 x 3.5'' / 2 x 2.5'' Storage Bays Included: 2 x (2 x 3.5" / 4 x 2.5")
Dust Filter	Front: 1 (Built-in) Top: 1 (Built-in) Rear Bottom: 1 (Removable)
Pre-installed Fans	2x H18 Fan (Front) - Case Version 1x H14 Fan (Rear) - Case Version (The Loopin™ System is available on the Retail Version only. Pre-installed case fans use single-female fan connectors.)
