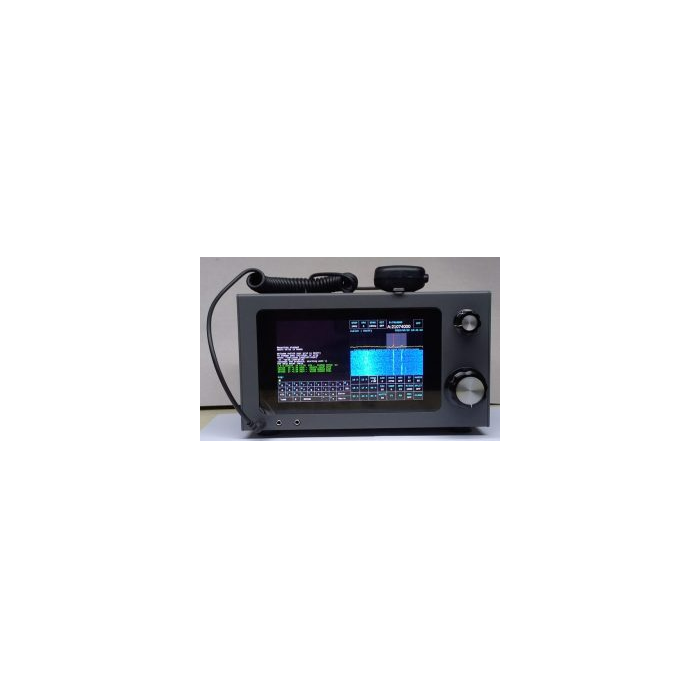

HF Signals sBitx v3 SDR Transceiver - Assembled

HF Signals sBitx v3 SDR Radio - Assembled

The sBitx is an open source, high performance Hybrid SDR for the 21st century radio amateurs. It is powered by an internal Raspberry Pi 4, it has CW/FT8/etc, logging software, macros, spotting  – all preconfigured and working out of the box.

• 7 inch touch screen: The largest display shipped with a transceiver
• Integrated Modes:  CW, logging is integrated into the radio, no setup and wires to deal with.
• Noiseless performance  from it’s all electronic T/R switching, fanless power amplifier and electronically selected filters.
• Temperature Compensated Crystal Oscillator to provide rock solid, low phase noise operation.
• Band-stacking VFOs with 4 memories on each of the 8 bands,
• Audio Tracking Filter variable from 50 Hz to 4000 Hz
• High performance electronics with a passive-FET front end, 8 crystals’ filter and a low phase noise, temperature compensated crystal oscillator.
• Editable macros that make it a breeze to work DX or compete in contests.
• High Accuracy Real Time Clock for accurate logging and FT8 timings
• Web-based Remote Operation from your PC/tablet/phone. Works without any downloads, just use your browser.
• Add a second screen with the HDMI port

FT8

• FT8 that works out of the box.
• One touch operation. Touch to call CQ or  start the contact
• Automatically logs all the QSOs into the built-in logbook
• In-built, high accuracy, real-tme clock

CW with Logging and Macros

• Totally noiseless, fast electronic T/R without noisy relays
• In-built N1MM style Macros support Running and S&P
• Sensitive decoder
• Raised cosine cw keying with perfect shaping
• Continuously variable filter from 3 KHz to 50 Hz
• Use the onscreen touch keyboard or add a USB/wireless keyboard for effortless CW sending

SSB

The sBitx, uses convolution SDR technology and a 7 element crystal filter to provide superb sound quality with punchy clarity.

• Built-in microphone and touch screen PTT as an alternative to plugging in a mic
• It works with any other mic (standard audio jack)
• Transmit IMD of 30 db
• Receiver with variable receiver bandwidth from 3KHz to 1.8 Khz
• Built-in two tone generator to align external linear amplifier or tune your antenna

Logger and Logbook

• In-built Logger and Logbook with RDMS support.
• N1MM style logger with macros and automatic logging of contacts with the frequency, mode, time automatically filled in.
• Use macros on CW/FT8 to send out standard messages with the press of a button/key.
• Look up the Callsigns from QRZ.com

Visit www.sbitx.net for manuals, how-tos, articles.
