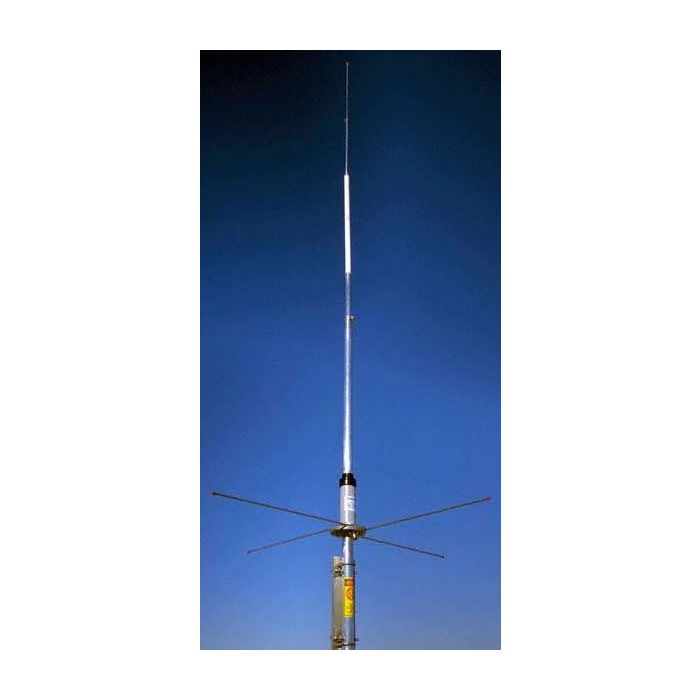

Hustler G6-144B 2m Vertical Antenna ~117" 600w

Two Meter Vertical
G6-144B

• Ideal for fixed or repeater operation.
• Optimum gain with collinear phasing.
• Low angle radiation for maximum signal.
• Constructed  of high strength aluminum.
• Totally self supporting design.

• Electrical:
• Radiation Pattern: Omni directional.
• SWR: 1.2:1 at resonance
• Maximum power input: 600 watts
• Gain: 6 dBd
• Impedance: 50 ohms nominal
• Lightning Protection: Shunt fed direct ground
• Mechanical:
• Length: 9'9" long, telescopic to 3/8" O.D.
• Weight: 10 lb.
• Radials: Four 20.25" x 0.375" O.D.
• Connector: SO-239
• Windload: 26 lb. at 100 mph
• Wind Survival: 100 mph
• Mounting:  Vertical support up to 1.75 in. O.D. pipe
