Hustler G6-440
SKU
ZHU-G6-440
$244.95
Check Store Stock
Huntsville:
Las Vegas:
Distribution Center:

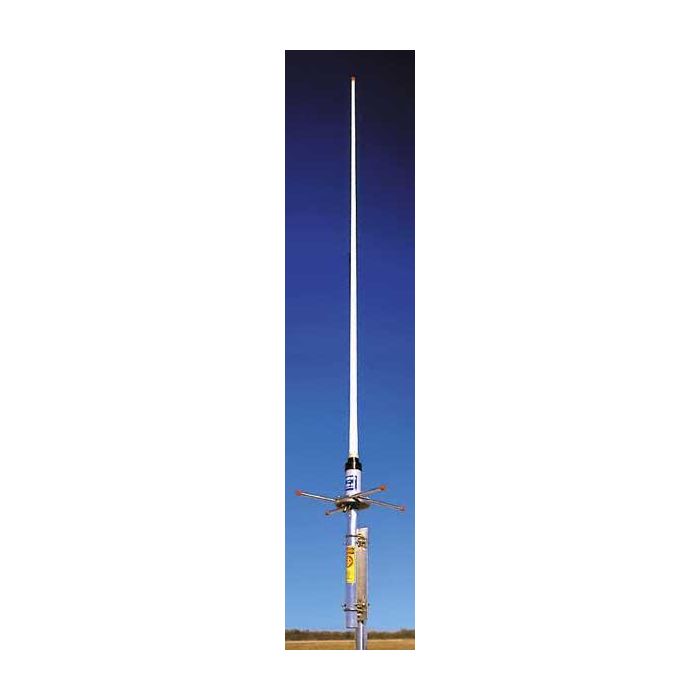

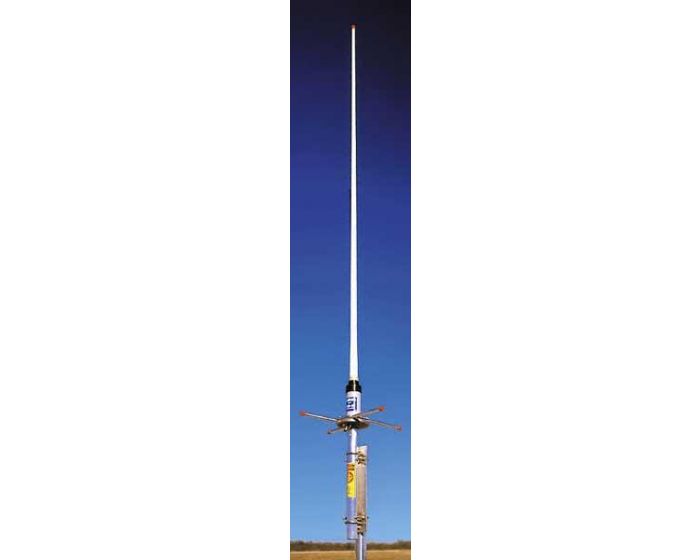

440 MHz. Vertical Fixed Station Omni Directional Antenna
Each is pre-tuned at the factory for easy installation. Enclosed in a lightweight tapered fiberglass radome for low wind resistance. Vertical phased collinear radiators for maximum radiation at the horizon.
6 dB gain for maximum effective range.
Stacked 5/8 wave low angle radiators for a consistent pattern.
Shunt fed DC ground.
Compact size allows shipment via U.P.S. or Parcel Post.
SPECIFICATIONS
Bandwidth:
- 8 MHz. under 1.5:1 VSWR
- 18 MHz. under 2:1 VSWR
Maximum power input: 250 watts
Gain: 6 dB
Lightning Protection: Shunt fed direct ground
Length: 7'4" long
Weight: 5 lb.
Mounting: Vertical support up to 2 in. O.D. pipe
Each is pre-tuned at the factory for easy installation. Enclosed in a lightweight tapered fiberglass radome for low wind resistance. Vertical phased collinear radiators for maximum radiation at the horizon.
6 dB gain for maximum effective range.
Stacked 5/8 wave low angle radiators for a consistent pattern.
Shunt fed DC ground.
Compact size allows shipment via U.P.S. or Parcel Post.
SPECIFICATIONS
Bandwidth:
- 8 MHz. under 1.5:1 VSWR
- 18 MHz. under 2:1 VSWR
Maximum power input: 250 watts
Gain: 6 dB
Lightning Protection: Shunt fed direct ground
Length: 7'4" long
Weight: 5 lb.
Mounting: Vertical support up to 2 in. O.D. pipe
