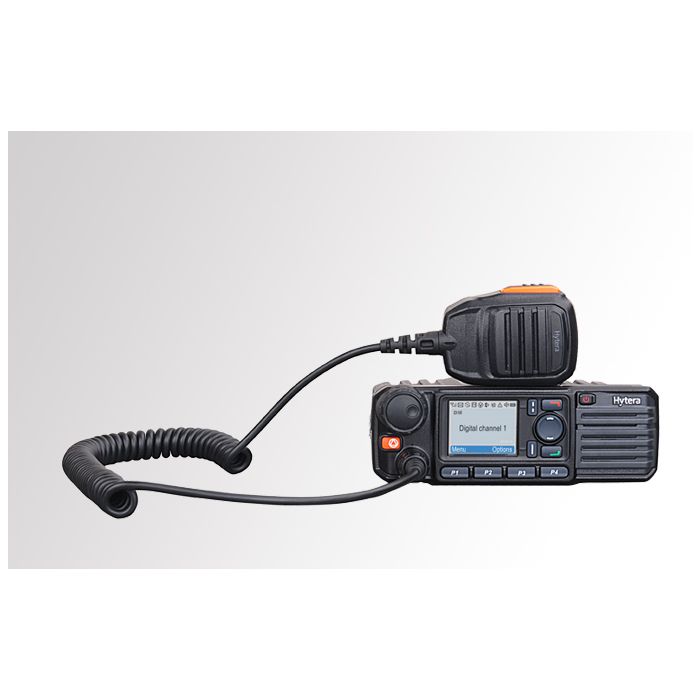

Hytera MA782G-U1
Huntsville:
Las Vegas:
Distribution Center:
Save $15 INSTANTLY when you purchase this radio and the Hytera PC37 USB Programming Cable together!
The MA782G DMR mobile radio offers versatile digital functions that allow you to exchange information in all types of situations. With their ergonomic design, easy-to-operate user interface and remarkable quality, they are the ideal solution for your communication requirements; regardless of whether you are aiming to optimize the efficiency of your company or be able to respond to emergency situations at all times.
FAQ:
Q. What’s the difference between the amateur Hytera radios their land mobile counterparts?
A. The biggest difference is the amateur model is less expensive. During our initial market test, there is no difference between the two radios but future revisions are expected to include the removal of features such as encryption and man-down, restriction to amateur frequencies, and additional features and interface improvements based on feedback from the amateur community.
Q. Why don’t we show the price?
A. The manufacturer requires you to put the item in your cart before we can show you the price. We realize that this is an inconvenience and we regularly provide this feedback to manufacturers.
Q. Where can I download programming software?
A. Programming software can be downloaded at www.gigaparts.com/downloads
This radio can be enabled for wideband FM and front panel programmability if it is purchased by a licensed amateur operator. After you purchase the radio, send an email to sales@gigaparts.com requesting this feature and we will email a program to you that will allow the Hytera CPS software on your computer to enable those features for your serial number. This process is controlled by the radio’s model number and serial number and only works on Hytera radios sold by GigaParts. Please provide your amateur radio call sign in the email request.
Excellent voice transmission
Thanks to the simultaneous application of narrow band codecs and digital error correction, the MA782G offers you outstanding audio quality in loud environments and in boundary regions of the radio coverage.
Dual mode
The MA782G features an analog as well as a digital mode and is compatible with the currently used analog systems, thereby simplifying your transition into the digital age.
Improved use of the radio spectrum
Thanks to the TDMA process, the MA782G enables you to assign the available bandwidth with double channel capacity. This has a clear mitigating effect on increasing spectrum scarcity.
Reliability and quality
The MA782G complies with the standards MIL-STD-810 C/D/E/F/G and meets the IP54 degree of protection. A high degree of reliability is assured even in harsh environments.
Versatile functionality
Besides the traditional communication functions, the MA782G features numerous digital and optional functions, including text messages, GPS location determination and a lone worker function.
Expansion interface
Thanks to the expansion interface, the range of functions offered by the MA782G can be expanded to include key functions. Accessories and applications developed by partners can be connected to this interface.
Intuitive interface and key guidance
The high-resolution LCD screen offers a clear display, even under difficult light conditions. The large keyboard and ergonomic programmable keys facilitate efficient and productive communication.
Upgradeable software
Upgradeable software makes the use of new features possible. By altering the firmware-software, other digital and analog operating modes can be enabled, without the need for purchasing a new radio device.
|
Frequency range
|
UHF: 420 - 450 MHz
|
|
Supported operation modes
|
DMR Tier III in reference to ETSI TS 102 361-1/2/3/4 |
|
Channel capacity
|
1024
|
|
Zone Capacity
|
64 (with max. 16 channels each)
|
|
Channel spacing (analog)
|
12.5 / 20 / 25 kHz
|
|
Channel spacing (digital)
|
12.5 kHz
|
|
Operating voltage
|
13.6 ±15 % VDC
|
|
Max. power consumption (in stand by)
|
≤ 0.6 A
|
|
Max. power consumption (during reception)
|
≤ 2.0 A
|
|
Max. power consumption (during transmission)
|
5 W: ≤ 5 A
25 W: ≤ 8 A 45 W / 50 W: ≤ 12 A |
|
Frequency stability
|
±1.5 ppm
|
|
Antenna impedance
|
50 Ω
|
|
Dimensions (H × W × D)
|
174 x 60 x 200 mm
|
|
Weight
|
1.7 kg
|
|
LCD display
|
220 x 176 pixels, 262,000 colours, 2.0 inches, 4 lines
|
|
Transmitter
|
|
|
Transmitting power
|
UHF: 5 – 45 W (Adjustable)
5 – 25 W* (Adjustable) |
|
Modulation
|
11K0F3E at 12.5 kHz
14K0F3E at 20 kHz 16K0F3E at 25 kHz |
|
4FSK digital modulation
|
12.5 kHz (data only): 7K60FXD
12.5 kHz (data and voice): 7K60FXW |
|
Interfering signals and harmonics
|
-36 dBm < 1 GHz
-30 dBm > 1 GHz |
|
Modulation limiting
|
±2.5 kHz at 12.5 kHz
±4.0 kHz at 20 kHz ±5.0 kHz at 25 kHz |
|
Noise suppression
|
40 dB at 12.5 kHz
43 dB at 20 kHz 45 dB at 25 kHz |
|
Adjacent channel selectivity
|
60 dB at 12.5 kHz
70 dB at 20/25 kHz |
|
Audio sensitivity
|
+1 to -3 dB
|
|
Nominal audio distortion
|
≤ 3%
|
|
Digital vocoder type
|
AMBE++
|
|
Receiver
|
|
|
Sensitivity (analog)
|
0.3 μV (12 dB SINAD)
0.22 μV (Typical) (12 dB SINAD) 0.4 μV (20 dB SINAD) |
|
Sensitivity (digital)
|
0.3 μV / BER 5%
|
|
Adjacent channel selectivity
TIA-603 ETSI |
65 dB at 12.5 kHz / 75 dB at 20 and 25 kHz
60 dB at 12.5 kHz / 70 dB at 20 and 25 kHz |
|
Intermodulation
TIA-603 ETSI |
75 dB at 12.5/20/25 kHz
70 dB at 12.5/20/25 kHz |
|
Spurious response rejection
TIA-603 ETSI |
75 dB at 12.5/20/25 kHz
75 dB at 12.5/20/25 kHz |
|
Hum and noise
|
40 dB at 12.5 kHz
43 dB at 20 kHz 45 dB at 25 kHz |
|
Nominal audio power output
|
Internally, 3 W at 20 Ω
Externally, 7.5 W at 8 Ω |
|
Nominal audio distortion
|
≤ 3 %
|
|
Audio sensitivity
|
+1 to -3 dB
|
|
Conducted spurious emission
|
-57 dBm
|
|
Ambient data
|
|
|
Operating temperature range
|
-30 °C to +60 °C
|
|
Storage temperature range
|
-40 °C to +85 °C
|
|
Protection against dust and moisture
|
IP54
|
|
Shock and vibration resistance
|
MIL-STD-810 C/D/E/F/G
|
|
Relative humidity
|
MIL-STD-810 C/D/E/F/G
|
|
GPS (MD785G only)
|
|
|
Time to first fix (TTFF) cold start
|
< 1 minute
|
|
Time to first fix (TTFF) warm start
|
< 10 seconds
|
|
Horizontal accuracy
|
< 10 meters
|
Hytera MA782G-U1 DMR Radio
Hand Microphone
Microphone Hanger & Screws
Mounting Bracket
Power Cord
Fuse
GPS Antenna
