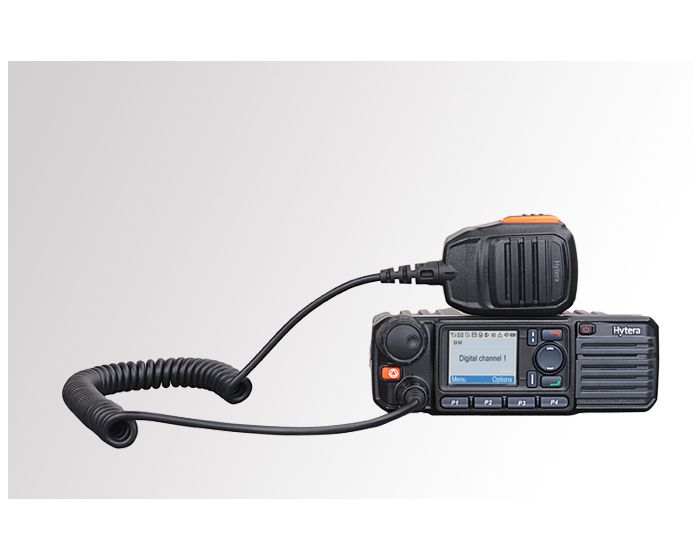

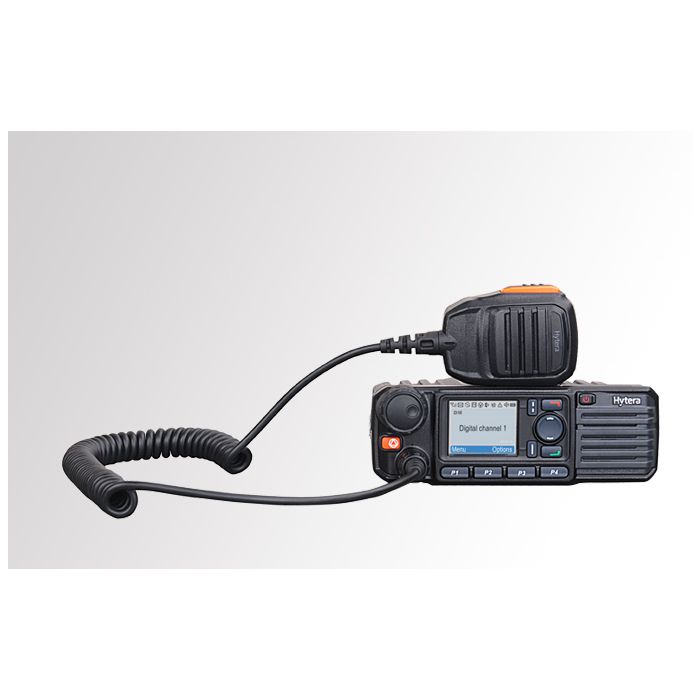

Hytera MD782G-U1 DMR MOBILE GPS UHF 400-470 MHz 1024CH 45W
The MD782G DMR mobile radio offers versatile digital functions that allow you to exchange information in all types of situations. With their ergonomic design, easy-to-operate user interface and remarkable quality, they are the ideal solution for your communication requirements; regardless of whether you are aiming to optimize the efficiency of your company or be able to respond to emergency situations at all times.
FAQ:
Q. Where can I download programming software?
A. Programming software can be downloaded at www.gigaparts.com/downloads
Wide Band Modification cannot be performed by the end user. For wideband you will need to add the Hytera Wide FM Modification to your cart.
Hytera MD782G-U1 DMR MOBILE GPS UHF 400-470 MHz 1024CH 45W
Excellent voice transmission
Thanks to the simultaneous application of narrow band codecs and digital error correction, the MA782G offers you outstanding audio quality in loud environments and in boundary regions of the radio coverage.
Dual mode
The MD782G features an analog as well as a digital mode and is compatible with the currently used analog systems, thereby simplifying your transition into the digital age.
Improved use of the radio spectrum
Thanks to the TDMA process, the MD782G enables you to assign the available bandwidth with double channel capacity. This has a clear mitigating effect on increasing spectrum scarcity.
Reliability and quality
The MA782G complies with the standards MIL-STD-810 C/D/E/F/G and meets the IP54 degree of protection. A high degree of reliability is assured even in harsh environments.
Versatile functionality
Besides the traditional communication functions, the MD782G features numerous digital and optional functions, including text messages, GPS location determination and a lone worker function.
Expansion interface
Thanks to the expansion interface, the range of functions offered by the MD782G can be expanded to include key functions. Accessories and applications developed by partners can be connected to this interface.
Intuitive interface and key guidance
The high-resolution LCD screen offers a clear display, even under difficult light conditions. The large keyboard and ergonomic programmable keys facilitate efficient and productive communication.
Upgradeable software
Upgradeable software makes the use of new features possible. By altering the firmware-software, other digital and analog operating modes can be enabled, without the need for purchasing a new radio device.
| Frequency range | UHF: 400 - 470 MHz |
| Supported operation modes |
DMR Tier III in reference to ETSI TS 102 361-1/2/3/4 |
| Channel capacity | 1024 |
| Zone Capacity | 64 (with max. 16 channels each) |
| Channel spacing (analog) | 12.5 / 20 / 25 kHz |
| Channel spacing (digital) | 12.5 kHz |
| Operating voltage | 13.6 ±15 % VDC |
| Max. power consumption (in stand by) | ≤ 0.6 A |
| Max. power consumption (during reception) | ≤ 2.0 A |
| Max. power consumption (during transmission) | 5 W: ≤ 5 A 25 W: ≤ 8 A 45 W / 50 W: ≤ 12 A |
| Frequency stability | ±1.5 ppm |
| Antenna impedance | 50 Ω |
| Dimensions (H × W × D) | 174 x 60 x 200 mm |
| Weight | 1.7 kg |
| LCD display | 220 x 176 pixels, 262,000 colours, 2.0 inches, 4 lines |
| Transmitter | |
| Transmitting power | UHF: 5 – 45 W (Adjustable) 5 – 25 W* (Adjustable) |
| Modulation | 11K0F3E at 12.5 kHz 14K0F3E at 20 kHz 16K0F3E at 25 kHz |
| 4FSK digital modulation | 12.5 kHz (data only): 7K60FXD 12.5 kHz (data and voice): 7K60FXW |
| Interfering signals and harmonics | -36 dBm < 1 GHz -30 dBm > 1 GHz |
| Modulation limiting | ±2.5 kHz at 12.5 kHz ±4.0 kHz at 20 kHz ±5.0 kHz at 25 kHz |
| Noise suppression | 40 dB at 12.5 kHz 43 dB at 20 kHz 45 dB at 25 kHz |
| Adjacent channel selectivity | 60 dB at 12.5 kHz 70 dB at 20/25 kHz |
| Audio sensitivity | +1 to -3 dB |
| Nominal audio distortion | ≤ 3% |
| Digital vocoder type | AMBE++ |
| Receiver | |
| Sensitivity (analog) | 0.3 μV (12 dB SINAD) 0.22 μV (Typical) (12 dB SINAD) 0.4 μV (20 dB SINAD) |
| Sensitivity (digital) | 0.3 μV / BER 5% |
| Adjacent channel selectivity TIA-603 ETSI |
65 dB at 12.5 kHz / 75 dB at 20 and 25 kHz 60 dB at 12.5 kHz / 70 dB at 20 and 25 kHz |
| Intermodulation TIA-603 ETSI |
75 dB at 12.5/20/25 kHz 70 dB at 12.5/20/25 kHz |
| Spurious response rejection TIA-603 ETSI |
75 dB at 12.5/20/25 kHz 75 dB at 12.5/20/25 kHz |
| Hum and noise | 40 dB at 12.5 kHz 43 dB at 20 kHz 45 dB at 25 kHz |
| Nominal audio power output | Internally, 3 W at 20 Ω Externally, 7.5 W at 8 Ω |
| Nominal audio distortion | ≤ 3 % |
| Audio sensitivity | +1 to -3 dB |
| Conducted spurious emission | -57 dBm |
| Ambient data | |
| Operating temperature range | -30 °C to +60 °C |
| Storage temperature range | -40 °C to +85 °C |
| Protection against dust and moisture | IP54 |
| Shock and vibration resistance | MIL-STD-810 C/D/E/F/G |
| Relative humidity | MIL-STD-810 C/D/E/F/G |
| GPS (MD785G only) | |
| Time to first fix (TTFF) cold start | < 1 minute |
| Time to first fix (TTFF) warm start | < 10 seconds |
| Horizontal accuracy | < 10 meters |
Hytera MD782G-U1 DMR Radio
Hand Microphone
Microphone Hanger & Screws
Mounting Bracket
Power Cord
Fuse
GPS Antenna
