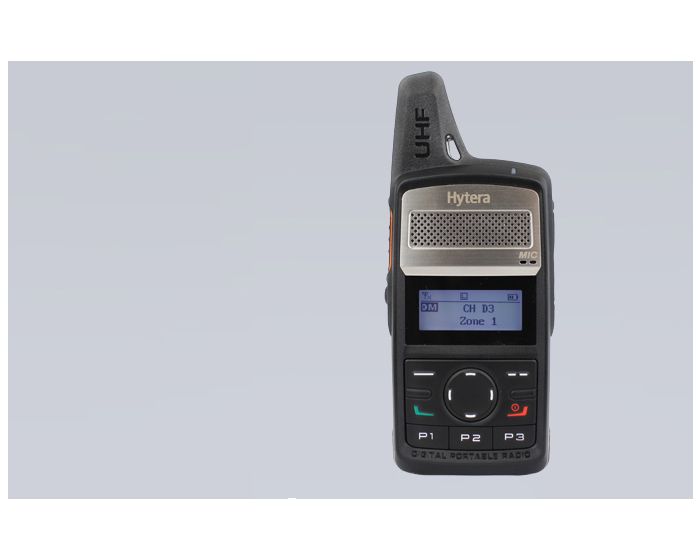

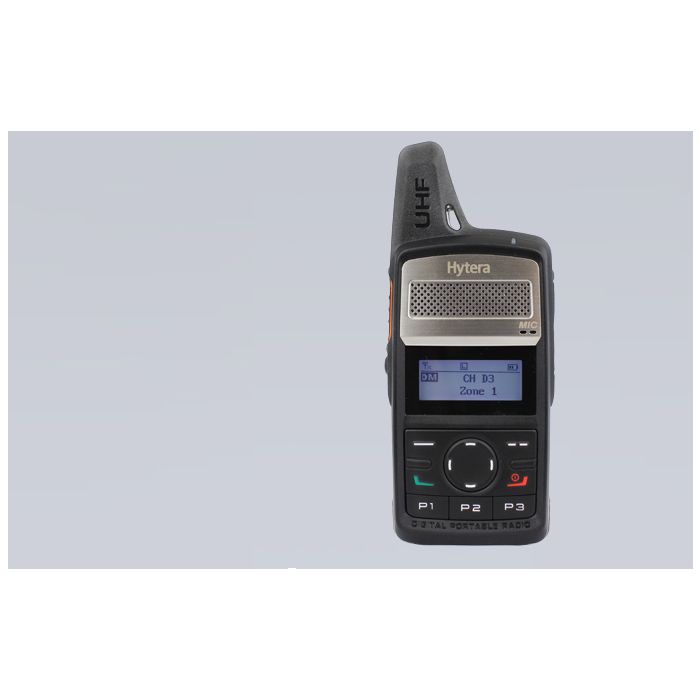

Hytera PD362 DMR HT UHF Radio, 430-470MHZ, 256 channel, 3W, IP54
Pocket-Size DIgital Handheld Radio
The Hytera PD362 is an open-standard DMR radio capable of providing quality voice communication in a small pocket-sized design approved to IP54 and MIL-STD 810 testing. The 2000 mAh long lasting battery yields approximately 12 hours under a 5-5-90 duty cycle in digital mode.
FAQ:
Q. Where can I download programming software?
A. Programming software can be downloaded at www.gigaparts.com/downloads
This radio can be enabled for wideband FM if it is purchased by a licensed amateur operator. After you purchase the radio, send an email to sales@gigaparts.com requesting this feature and we will email a program to you that will allow the Hytera CPS software on your computer to enable those features for your serial number. This process is controlled by the radio’s model number and serial number and only works on Hytera radios sold by GigaParts. Please provide your amateur radio call sign in the email request.
Hytera PD362 DMR HT UHF Radio, 430-470MHZ, 256 channel, 3W, IP54
Pocket Size Design
The color display allows good visibility even under extremely strong light. The compact antenna design and light weight PC & Metal frame design. The PD362 is 4.84 x 2.17 x 0.91 inches weighing 5.64oz.
Micro USB Port
The Micro USB port allows you to use a standard USB to Micro USB to charge the radio.
Compact Antenna
The creative and compact antenna design makes the PD362 sleek and gives it a cellular phone feel.
Dual Mode: Analog & Digital
Dual mode (analog & digital) operation ensures a smooth analog to digital migration.
One Touch Call/Text
Supports One Touch features that comprise of Preprogrammed Text Messages, Voice Calls and Supplementary Features.
Simple Scan
Capable of scanning of analog voice/signaling or Digital voice/data.
Versatile Voice Calls
The intelligent signaling supports various voice call types, including Private Call, Group Call , and All Call.
Various Analog Signaling Types
Various analog signaling types various squelch control types (CTCSS / CDCSS), thus providing higher function expansion capacity to the analog world.
Monochrome Display
Two line display with monochrome color and supports messaging with up to 64 characters.
| Frequency range | UHF: 430 - 470 MHz |
| Channel capacity | 256 (128 Analog / 128 Digital) |
| Zone capacity | 16 |
| Channel spacing | 12.5/25 kHz |
| Operating voltage | 3.7 V |
| Battery | 2000 mAh Li-Ion |
| Battery service life (5/5/90) | approx. 10 h (analog) approx. 12 h (digital) |
| Frequency stability | ±0.5 ppm |
| Antenna impedance | 50 Ω |
| Dimensions (H×W×D) | 4.84 x 2.17 x 0.91 Inches |
| Weight | 5.64 oz |
| Transmitter | |
| RF Power Output | UHF: 1.5 / 3 W |
| FM Modulation (Analog Emissions Designator) |
11 K0F3E at 12.5 kHz 16 K0F3E at 25 kHz |
| 4FSK Digital Modulation (Digital Emissions Designator) |
12.5 kHz (data only): 7K60FXD 12.5 kHz (voice & data): 7K60FXW |
| Conducted/Radiated Emission | -36 dBm < 1 GHz -30 dBm > 1 GHz |
| Modulation limiting | ±2.5 kHz at 12.5 kHz ±5.0 kHz at 25 kHz |
| FM Hum & Noise | 40 dB at 12.5 kHz 45 dB at 25 kHz |
| Adjacent channel selectivity | 60 dB at 12.5 kHz 70 dB at 25 kHz |
| Audio Response | +1 dB to -3 dB |
| Audio Distortion | ≤ 3% |
| Digital vocoder type | AMBE++ or SELP |
| Receiver | |
| Sensitivity (analogue) | 0.22 μV (12 dB SINAD) 0.22 μV (typical) (12 dB SINAD) 0.4 μV (20 dB SINAD) |
| Sensitivity (digital) | 0.22 μV / BER 5% |
| Adjacent channel selectivity TIA-603 ETSI |
60 dB at 12.5 kHz / 70 dB at 25 kHz 60 dB at 12.5 kHz / 70 dB at 25 kHz |
| Intermodulation TIA-603 ETSI |
70 dB at 12.5/25 kHz 70 dB at 12.5/25 kHz |
| Spurious response rejection TIA-603 ETSI |
70 dB at 12,5/25 kHz 70 dB at 12.5/25 kHz |
| Spurious response rejection | 40 dB at 12.5 kHz 45 dB at 25 kHz |
| Nominal audio power output | 0.4 W |
| Nominal audio distortion | ≤ 5 % |
| Audio sensitivity | +1 dB to -3 dB |
| Conducted spurious emission | < -57 dBm |
| Environmental Specs | |
| Operating temperature range | -30 °C to +60 °C |
| Storage temperature range | -40 °C to +85 °C |
| ESD | IEC 61000-4-2 (level 4) ±8 kV (contact discharge) ±15 kV (air discharge) |
| Protection against dust and moisture | IP54 |
| Shock and vibration resistance | MIL-STD-810 C/D/E/F/G |
| Relative humidity | MIL-STD-810 C/D/E/F/G |
Hytera PD362UC DMR Radio
2000 mAh Li-Ion Battery
Micro-USB Power Adapter
Antenna (attached)
Belt Clip
Nylon Strap
