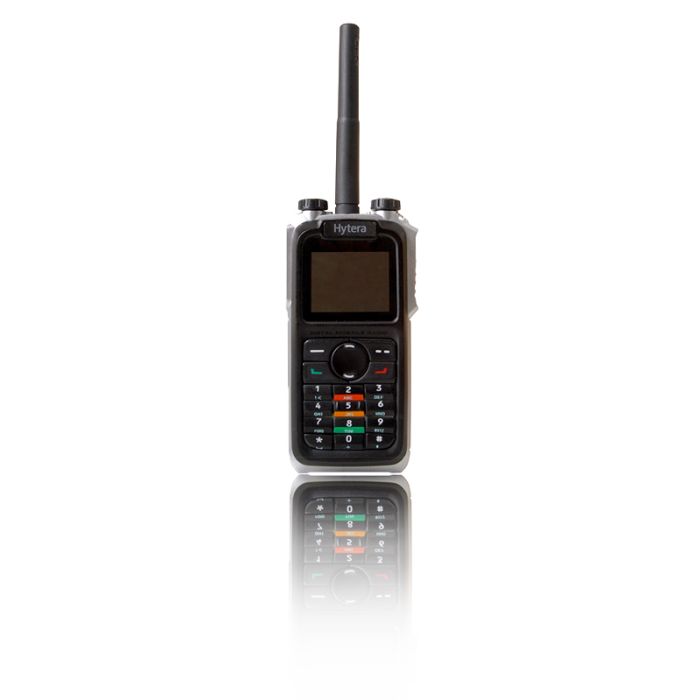

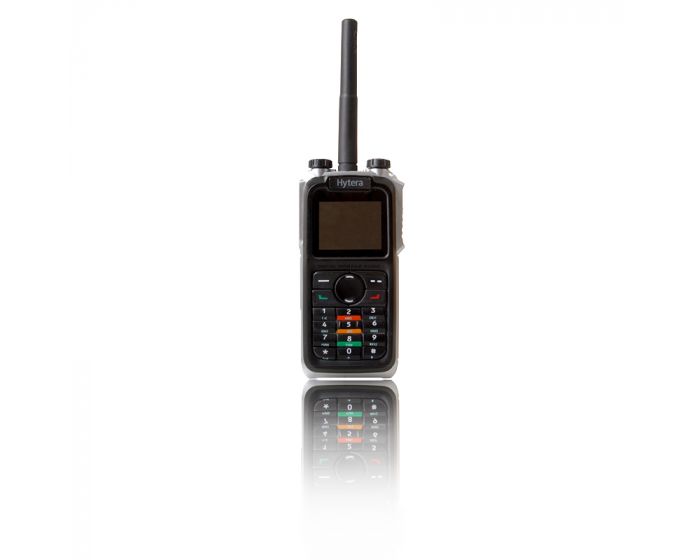

Hytera X1P DMR HT, UHF 400-470, GPS, Bluetooth, 4W, 2KmAh Li-Ion
The X1 Series is built to the DMR Standard and is rich in features for both voice and data communication. The design is approved to rigorous IP67 and MIL-STD 810 testing. The Hytera-patented pseudo-trunking maximizes channel usage. Key features such as man down, vibration, a dedicated emergency button, and the large color display make this an ideal solution for mission critical communications. The radio’s slim size enables a user to carry it covertly in a pocket or belt clip. The X1 Series also comes standard with a GPS chip that allows the radio to integrate with Hytera SmartDispatch or other 3rd party GPS dispatching software.
FAQ:
Q. Where can I download programming software?
A. Programming software can be downloaded at www.gigaparts.com/downloads
Wide Band Modification cannot be performed by the end user. For wideband you will need to add the Hytera Wide FM Modification to your cart.
Hytera X1P DMR HT, UHF 400-470, GPS, Bluetooth, 4W, 2KmAh Li-Ion
Ease of Use
Easy to use with the rugged body as thin as 18mm, professional wireless headsets or collar microphone, palm controller and flexible antenna.
Rugged & Reliable
Complies with MIL-STD-810 C/D/E/F/G standards and passes HALT (Highly Accelerated Life Test).
Large Color Display
X1A has a 1.8”TFT LCD display (65536 colors), allowing good visibility even in strong sunlight and the ability to view 4 lines of status messages.
Advanced Signaling
Supports multiple advanced analog signaling modes, including HDC1200, 2-Tone and 5-Tone, providing better integration into existing analog radio fleets.
Dual Mode: Analog & Digital
Dual mode (analog & digital) operation ensures a smooth analog to digital migration.
Versatile Voice Calls
The intelligent signaling of the X1 Series radios support various voice call types, including Private Call, Group Call , All Call and Emergency Call.
Bluetooth
X1 Series Radios can connect to Bluetooth to earpieces using the Hytera wireless PTT Accessory.
Expansion Ports
This allows third parties to develop accessory and applications via front and rear port of the mobile.
GPS Positioning
Supports viewing of GPS positioning information and sending of GPS text message.
Vibration
Vibration alerts the user of voice calls and text messages.
Software Upgradeable
Upgradeable software enables new features without buying a new radio; X1 Series radios can also be switched into DMR trunking modes with corresponding trunking license applied in the same hardware.
IP67 Protection
The Ingress Protection reaches IP67 (6: Totally protected against dust; 7: Protected against the effects of immersion up to 1m for 30 minutes). It’s the highest IP level for land-based wireless radio application.
| Frequency range | UHF: 400-470Mhz |
| Channel capacity | 1024 |
| Number of zones | 64 |
| Channel spacing (analog) | 12.5 / 20 / 25 kHz |
| Operating voltage | 7.4 V (rated) |
| Standard battery | 1800mAh (Li-Ion) |
| Battery service life (analog) (5-5-90 Duty Cycle, High TX Power) |
Approx. 11hrs |
| Battery service life (digital) (5-5-90 Duty Cycle, High TX Power) |
Approx. 15hrs |
| Frequency stability | ±0.5 ppm |
| Antenna impedance | 50 Ω |
| Dimensions (H × W × D) | 4.7 x 2.24 x 0.91 inches |
| Weight | 9.88 oz) |
| LCD display | 160 x 128 pixels, 65536 colors,1.8in, 4 rows |
| Transmitter | |
| RF Power Output | Low 1W - High 4W |
| FM Modulation (Analog Emissions Designator) |
11K fF3E @ 4KfF3E @ 20KHz ; 16KfF3E @ 25KHz |
| 4FSK digital modulation | 12.5 kHz (data only): 7K60FXD 12.5 kHz (data and voice): 7K60FXW |
| Conducted/Radiated Emission | -36 dBm < 1 GHz -30 dBm > 1 GHz |
| Modulation limiting | ±2.5 kHz at 12.5 kHz ±4.0 kHz at 20 kHz ±5.0 kHz at 25 kHz |
| FM Hum & Noise | 40 dB at 12.5 kHz 43 dB at 20 kHz 45 dB at 25 kHz |
| Adjacent channel selectivity | 60 dB at 12.5 kHz 70 dB at 20/25 kHz |
| Audio Response | +1 dB to -3 dB |
| Audio Distortion | ≤ 3% |
| Digital vocoder type | AMBE++ or SELP |
| Digital Protocol | ETSI-TS102 361-1, 2&3 |
| Receiver | |
| Sensitivity (analog) | 0.3 μV (12 dB SINAD) 0.22 μV (typical)) (12 dB SINAD) 0.4 μV (20 dB SINAD) |
| Sensitivity (digital) | 0.3 μV / BER 5% |
| Selectivity TIA-603 ETSI |
60 dB at 12.5 kHz / 70 dB at 20/25 kHz 60 dB at 12.5 kHz / 70 dB at 20/25 kHz |
| Intermodulation TIA-603 ETSI |
70 dB at 12.5/20/25 kHz 65 dB at 12.5/20/25 kHz |
| Spurious Response Rejection TIA-603 ETSI |
70 dB at 12.5/20/25 kHz 70 dB at 12.5/20/25 kHz |
| Blocking TIA-603 ETSI |
80dB 84dB |
| S/N | 40dB @ 1 3dB @ 20KHz ; 45dB @ 25KHz |
| Rated Audio Power Output | 0.5W |
| Rated Audio Distortion | ≤ 3% |
| Audio Response | +1 ~ -3dB |
| Conducted Spurious Emission | < -57dBm |
| Environmental Specs | |
| Operating temperature range | -22 °C to +140 °C |
| Storage temperature range | -40 °C to +185 °C |
| ESD | IEC 61000-4-2 (level 4) ± 8 kV (contact discharge) ± 15 kV (air discharge) |
| Protection against dust and moisture | IP67 |
| Shock and vibration resistance | MIL-STD-810 C/D/E/F/G |
| Relative humidity | MIL-STD-810 C/D/E/F/G |
| GPS | |
| Time to first fix (TTFF) cold start | < 1 minute |
| Time to first fix (TTFF) warm start | < 10 seconds |
| Horizontal accuracy | < 10 meters |
Hytera X1P DMR Radio
1800 mAh Li-Ion Battery
MCU Rapid-rate Charger
Power Adapter
Antenna
