Intel RS25AB080

Intel RS25AB080 SKU: HC0188


Free Shipping!

No Longer Available

Check Store Stock

Huntsville Store:

Las Vegas:

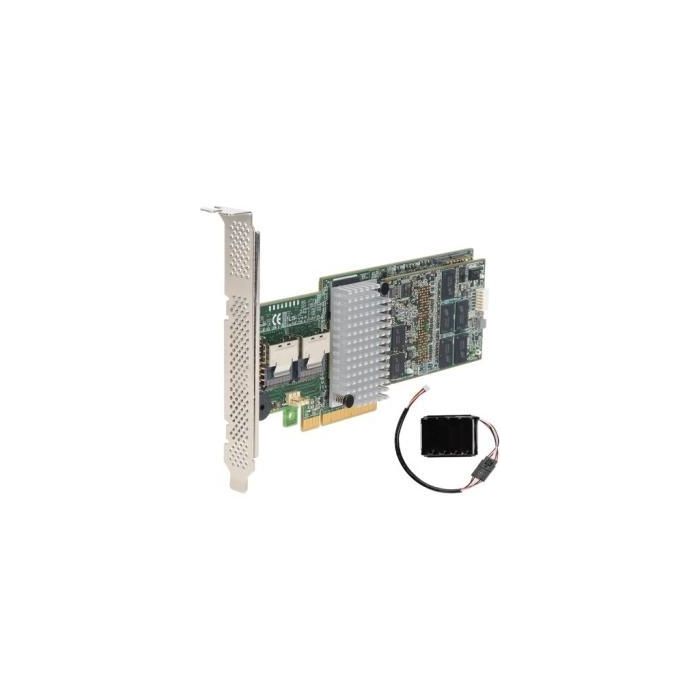

Intel RAID Controller RS25AB080 - Includes Maintencance Free Backup Unit - Serial Attached SCSI (SAS), Serial ATA/600 - PCI Express 2.0 x8 - Plug-in Card - RAID Supported - 0, 1, 5, 6, 10, 50, 60 RAID Level - 1 GB

The Intel RAID Controller RS25AB080, powered by LSI MegaRAID technology, offers exceptional performance, scalability and configuration flexibility making it the perfect choice for l/O and throughput intensive applications. The Intel RS25AB080 delivers eight internal ports, two 800MHz processor cores and a 72-bit DDRIII interface that drives 1GB cache memory. Furthermore, the Intel RS25AB080 comes with a Maintenance Free Backup Unit that utilizes NAND flash memory and a super-capacitor to help protect data stored in the controller cache. The benefits of this technology are elimination of hardware maintenance associated with LiON batteries, lower total cost of ownership over the life of the adapter, and more environmentally friendly cache protection.


  • Manufacturer/Supplier: Intel Corporation
  • Manufacturer Part Number: RS25AB080
  • Manufacturer Website Address:
  • Brand Name: Intel
  • Product Model: RS25AB080
  • Product Name: RAID Controller RS25AB080
  • Product Type: SAS Controller
  • Host Interface: PCI Express 2.0 x8
  • Data Transfer Rate: Up to 600 MBps Per Port
  • Interfaces: Serial Attached SCSI (SAS), Serial ATA/600
  • RAID Supported: Yes
  • RAID Levels: 0, 1, 5, 6, 10, 50, 60
  • Data Backup Type: Battery Backup
  • Standard Memory: 1 GB Embedded ECC DDR3 SDRAM
  • Ports: 2 x SFF-8087 6Gb/s SAS - Serial Attached SCSI (SAS) Internal
  • Height: 2.5"
  • Width: 6.6"
  • Form Factor: Low-profile Plug-in Card
  • Package Contents:
      RAID Controller RS25AB080 , Maintenance Free Backup Unit (Cables are NOT included)
