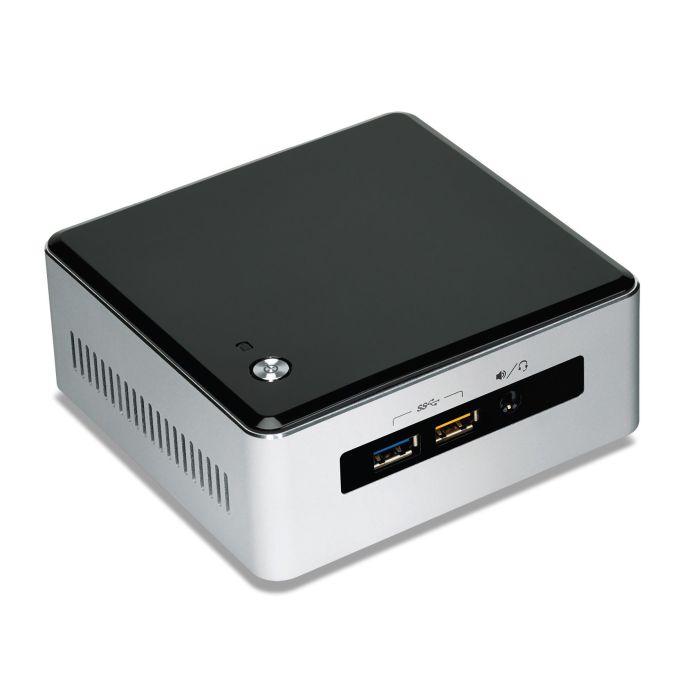

Intel NUC Barebone (Fat) - i7-5557U 3.10GHz, Iris HD6100 Graphics
Equipped with a 5th generation Intel® Core™ i7-5557U processor, NUC5i7RYH is the highest performing Intel® NUC ever. Iris™ graphics 6100 delivers amazing multimedia experiences and makes NUC5i7RYH perfect for immersive gaming. A replaceable lid provides plenty of options to extend system capabilities or add personal style. Intel® Turbo Boost Technology 2.0 delivers performance that adapts to your needs. Add a 2.5-inch HDD or an M.2 SSD for more storage. Complete with Wi-Fi 802.11ac wireless, Bluetooth, and 7.1 surround sound, NUC5i7RYH is ideal for home theater PCs, media server PCs, and home hubs.
Processor & Chipset
Number of Processors Supported: 1
Number of Processors Installed: 1
Processor Manufacturer: Intel
Processor Type: Core i7
Processor Model: i7-5557U
Processor Core: Dual-core (2 Core)
Processor Speed: 3.10 GHz
Maximum Turbo Speed: 3.40 GHz
Cache: 4 MB
Direct Media Interface: 5 GT/s
64-bit Processing: Yes
Hyper-Threading: Yes
vPro Technology: No
Memory
Maximum Memory: 16 GB
Memory Technology: DDR3L SDRAM
Memory Form Factor: SoDIMM
Controllers
Controller Type: Serial ATA/600
Display & Graphics
Graphics Controller Manufacturer: Intel
Graphics Controller Model: Iris Graphics 6100
Graphics Memory Technology: DDR3L SDRAM
Graphics Memory Accessibility: Shared
Wi-Di Technology: Yes
Network & Communication
Ethernet Technology: Gigabit Ethernet
Wireless LAN: Yes
Wireless LAN Standard: IEEE 802.11ac
Bluetooth: Yes
Bluetooth Standard: Bluetooth 4.0
Near Field Communication: Yes
Interfaces/Ports
Mini HDMI: Yes
Total Number of USB Ports: 6
Number of USB 2.0 Ports: 2
Number of USB 3.0 Ports: 4
Network (RJ-45): Yes
Audio Line In: Yes
Audio Line Out: Yes
Mini DisplayPort: Yes
Power Description
Maximum Power Supply Wattage: 65 W
Physical Characteristics
Color: Black
Color: Silver
Form Factor: Mini PC
Miscellaneous
Package Contents:
NUC5I7RYHR Desktop Computer
VESA mount bracket, with screws
AC-DC Power Adapter
Multi-Country Plugs (IEC types A/C/GI)
Integration Guide
Processor Badge
Features: Security Slot
Warranty
Limited Warranty: 3 Year
