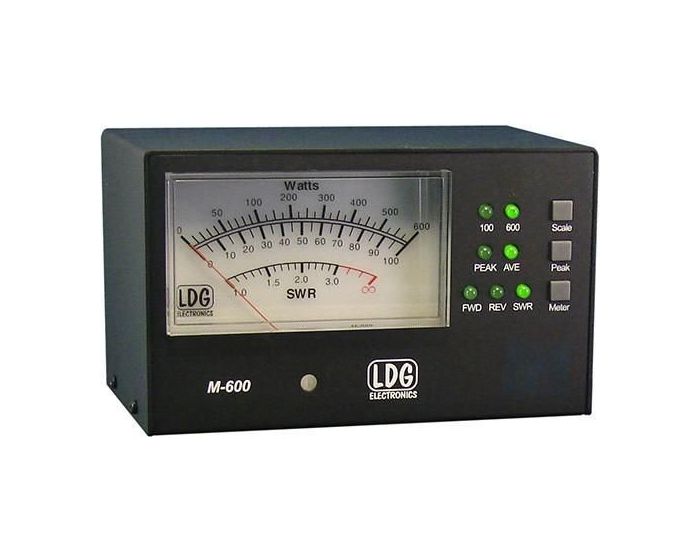

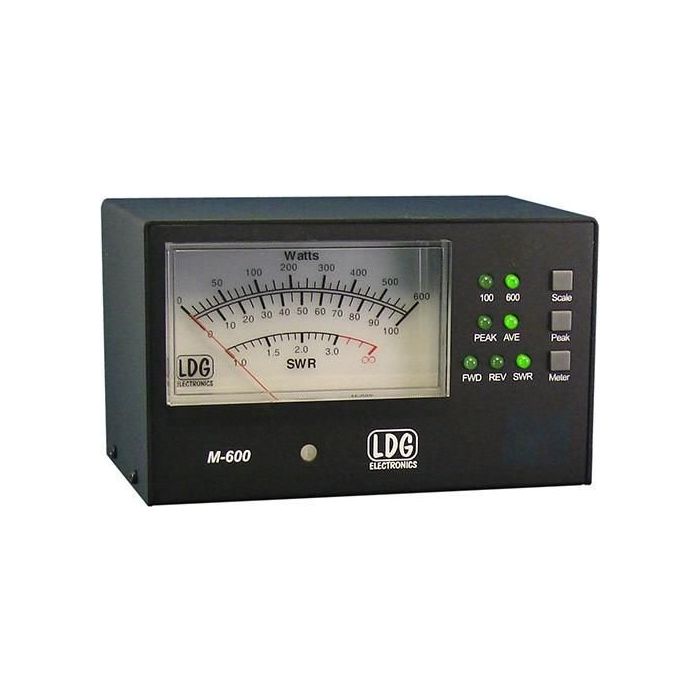

LDG Optional 4.5 inch Meter for AT-600ProII w/6ft cable

The M-600 provides accurate and precise metering for forward and reflected power, as well as SWR readings when connected to an AT-600ProII tuner. Peak and average readings are available, and the M-600 may be set to display a different parameter from the one displayed on the AT-600ProII’s built-in LED bargraph meters. The M-600 plugs into the External Meter jack on the rear of the AT-600ProII, and is powered from the AT-600ProII. An adjustable brightness backlight is provided.

  • Giant, 4.5” (diagonal) analog meter movement
  • Frequency-compensated Forward Power, Reflected Power, and SWR meter scales
  • Peak Hold or Average Power display modes
  • 0-100W and 0-600W meter scales
  • Cool blue backlight with adjustable brightness
  • Power requirements: 11 to 16 VDC @ 1A max
  • HPM cable included
  • Dimensions: 6.75”L x 4”W x 4.25”H
  • Weight 1 pound 3 ounces
