LDG M-7700 -

Discontinued by LDG

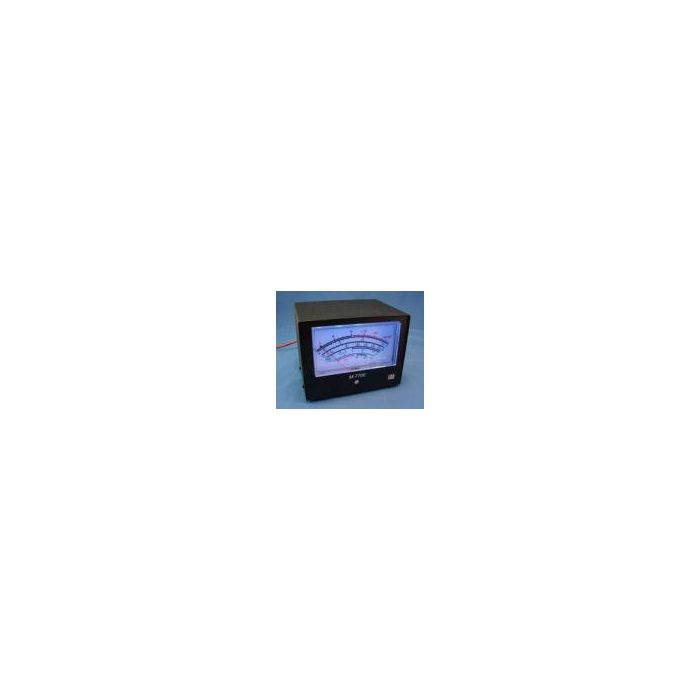

The LDG M-7700 provides a lavish 4 ½” meter for IC-7700. It will display S-meter   on receive, or power out, SWR, ALC level or supply voltages, all selectable from the rig’s setup menu. What’s more, the M-7700 and the virtual meter on your radio can work together; for example, you can display SWR on the radio’s meter and power output on the M-7700.

The meter face is backlit in cool LED blue, powered by any 12 volt, 250ma source; there’s a brightness control on the case back. The meter itself is passive; it doesn’t require the 12 volt supply. You don’t have to power the backlight, but you’ll be missing out on a great feature if you don‘t. Calibration adjustments are accessible from the back of the M-7700; you don’t have to take the meter apart if you ever need to cal.

The M-7700 comes fully assembled and calibrated; both the radio and power cables are included, of course, so you’re ready to go right out of the box. And, it carries LDG‘s two year, fully transferable warranty. At only $79.99 it’s a bargain; order yours today.


• Giant, 4.75” (diagonal) 500 μA analog meter movement.

• S-meter on receive, Drive current, Drive voltage, Power Output, SWR, Compression level, and

ALC on transmit.

• Externally powered cool blue backlighting with adjustable brightness.

• On/Off switch for backlight.

• Dimensions: 5.3 x 4.2 x 4.7 inches.

• Backlight requires 12VDC, 250mA. 2.5 x 5.5mm jack, center positive.
