LDG Electronics Z-817

$113.95
LDG Electronics Z-817 SKU: ZLD-Z-817

Receive a FREE balun or unun from LDG with purchase of this product!

Click HERE for the form.

$113.95

Ready to Ship!
Check Store Stock

Huntsville Store:

Las Vegas:

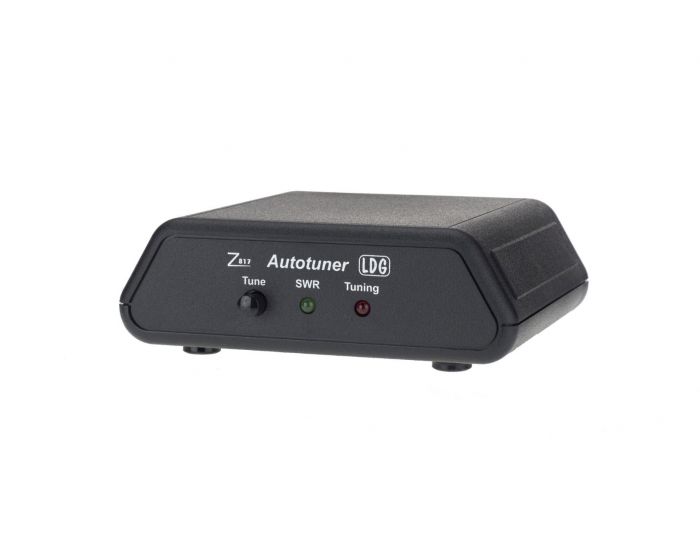

The Z-817 is the ultimate autotuner for QRP radios including the Yaesu FT-817(D). The Z-817 interfaces to the CAT port (ACC) on the back of the FT-817 radio with the provided cable. Tuning could not be simpler; one button push on the tuner is all that is needed and the Z-817 takes care of the rest. It will switch to PKT mode, transmit a carrier, tune the tuner, then restore the radio to the previous mode! 2000 memories cover 160 through 6 meters.


Of course, the Z-817 will also function as a general purpose antenna tuner with other QRP radios. Just transmit a carrier and press the tune button on the tuner. The Z-817 is powered by four AA internal Alkaline batteries (not included), so there are no additional power or control cables required to use the Z-817. Latching relays are used so that power consumption is Zero when not tuning allowing a set of batteries to last about one year.



If you have any questions about which LDG tuner to purchase, take a look here!

Specifications:

  • RF Power 0.1 to 20 watts SSB, CW and digital modes.

  •  Latching relays for ultra low power consumption

  •  Battery operated 4 x 1.5V Alkaline AA (not included)

  •  Built-in CAT port interface. CAT thru port for computer connection. 38400 baud.

  •  2000 memories when used with FT-817 interface (200 memories for other radios)
