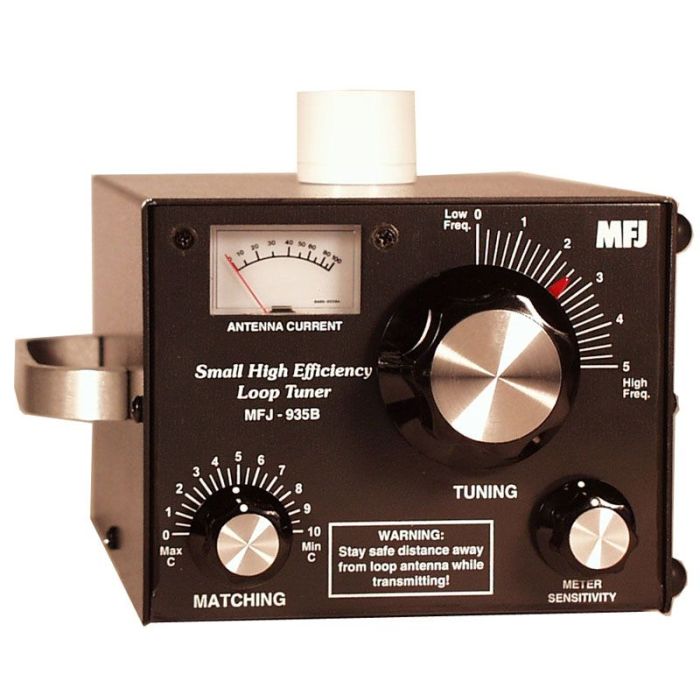

MFJ MFJ-935B

Loop Tuner, 5.3 - 30MHz, 150W, w/Current Meter


Drape a wire around a bookcase or window and attach both ends to this new MFJ Small Loop Tuner™. It instantly turns into a small, high efficiency multi-band transmitting loop antenna! You can operate 5.3 to 30 MHz with a full 150 Watts. No ground, radials or counterpoises needed. The excellent performance of a high-efficiency small loop antenna is legendary and well proven by users all over the world. You’ll radiate a low angle DX signal that literally rivals full size dipoles and work incredible DX! It’s a very quiet receiving antenna; you’ll hardly notice static crashes. Its high-Q reduces QRM, overloading, harmonics. It’s perfect for apartments, antenna restricted areas and portable operation. A 13 foot wire formed into a loop operates 30-20 Meters (4 foot for 17-10 M; 7 foot for 20-15 M; 28 foot for 60-40 M). You can tune any shape loop; circle, square, rectangle, any odd shape. A quarter wavelength wire shaped as a circle is the most efficient. A given wire length covers about 1.5 to 1 frequency range (i.e. 7-10 / 18-28 MHz, etc.). Exact frequency coverage depends on wire length, loop shape, surroundings and height above ground. Has MFJ low loss Butterfly loop tuning capacitor, no rotating contacts. Easy-Carry handle. Mount for PVC Cross on cover. See June, 1986, QST or recent ARRL Antenna Handbook for more details on small, high efficiency loops.
