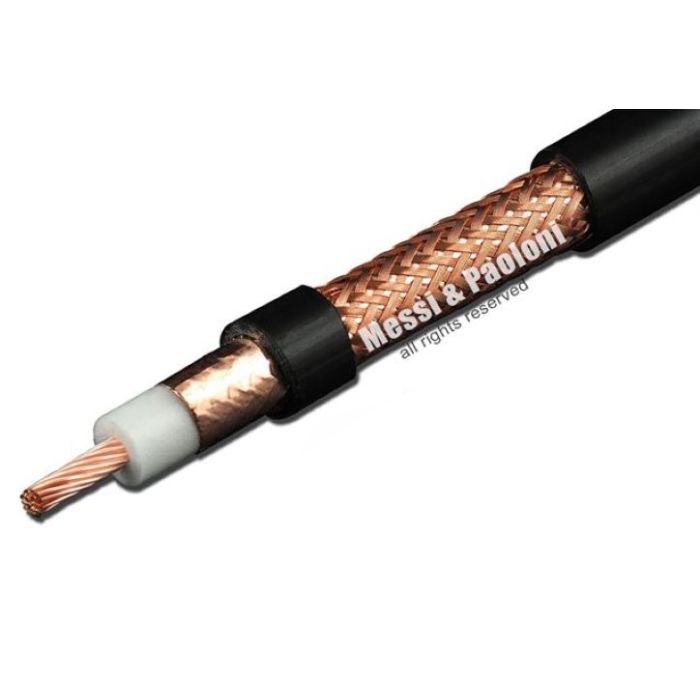

M&P Contest Flex 10 EVO PL-259, 9ft, Black Coax Cable

Inner Conductor:
19x0,59mm copper wires - overall Ø 2,9 mm ± 0,15 (19x0.023” - overall Ø 0.114”)

Dielectric:
High pressure physical injection foamed polyethylene TRIPLE LAYER overall Ø 7,3 mm ± 0,05 (0.287”)

Foil:
100% SCREENING - First screen made of copper with an applied PE-layer: prevents cracking due to short radius bends

Reactive Braid:
85% SCREENING - 192 wires of copper clad aluminium made with 24 spool machines (instead of 16). Thanks to 50% more crossovers, grants exceptional Screening Attenuation (SA) and reacts to twisting and bending like a spring.

Jacket:
UV-resistant black PVC overall Ø 10,3mm ± 0,15 (0.405”)
