FEATURES

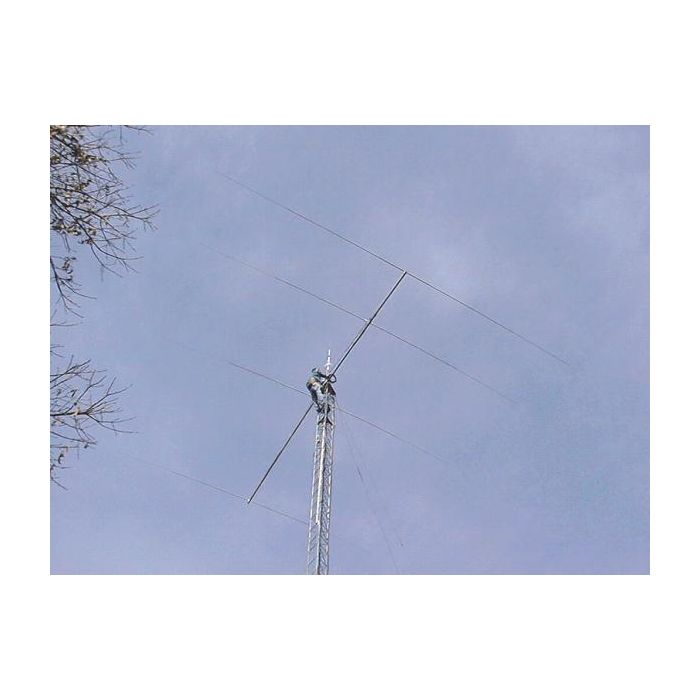

The 12M4DX is a great performer for its size. It was designed for low wind area but rugged
and lightweight and it will save you a bundle on shipping. IT'S UPS-ABLE! like all our "DX"
series. The computer optimized design allows full band coverage with good gain and front to
back. Performance is excellent on both the CW and phone.
Mechanically, CNC machined aluminum (6061-T6) ring clamps ground the elements to the boom
and make assembly a snap. A hairpin type match couples the 5 kW 1: balun to the feed line.
The antenna is completely DC grounded. The 12M4DX is also great for stacking,providing 3 dB
increased gain not to mention the lower angle of radiation The 12M4DX is a perfect stacking
partner for our other "DX" series Yagis like the 20M4DX and 10M4DX. Put the 12M4DX to the
test in the new cycle!
SPECIFICATIONS
- Model 12M4DX
- Frequency range 24.890 TO 24.990 MHz
- Gain 8.6 dBd typical
- Front to back, Typical 20 dB TYPICAL
- Beamwidth E=48° / H=58°
- VSWR 1.2:1 TYPICAL
- Feed impedance / Conn. 50 OHMS / SO-239
- Boom length and diameter 27 FT. / 2"
- Element Diameter 7/8", 3/4" & 1/2" TIPS
- Stacking Distance 35 TO 39 FT.
- Turning radius 16' 8"
- Wind Area 4.4 SQ. FT.
- Wind Survival 100 MPH
- Weight / ShipWt. 28 LBS. / 35 LBS UPS
