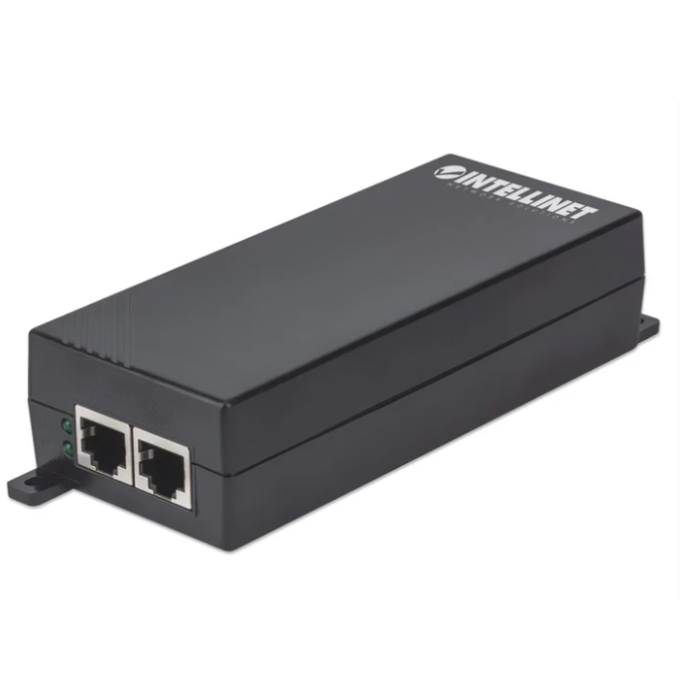

Manhattan Gigabit High-Power PoE+ Injector

Name: Manhattan Gigabit High-Power PoE+ Injector
Brand: Manhattan
SKU: NH1853
Price: 25.49 USD
Availability: BackOrder

SKU: NH1853

Availability:

Accepting Backorders

$25.49

VIP Price

SAVE $4.50

Regular Price: $29.99

Reserve yours now!
(Ships In 7-14 Days)

Features

Feature	Detail
Standards	IEEE 802.3af (Power over Ethernet) IEEE 802.3at (High-Power PoE+ Power over Ethernet) IEEE 802.3 (10Base-T Ethernet) IEEE 802.3ab (Gigabit Ethernet) IEEE 802.3u (100Base-TX Fast Ethernet) IEEE 802.3x (flow control, for full duplex mode)
Media Support	100Base-TX Cat5 UTP/STP RJ45, 8 pin 1000Base-T Cat5e UTP/STP RJ45, 8 pin
Ports	One RJ45 10/100/1000 Mbps input port One RJ45 10/100/1000 Mbps data and power output port
Protection Functions	Short circuit protection for short GND Overload protection for currents over 0.6 A
PoE Pinout	IEEE 802.3af/at Standard Mode A Pin 1: DC (+) Pin 2: DC (+) Pin 3: DC (-) Pin 6: DC (-)
Certifications	FCC Class A, CE, RoHS, UKCA, NDAA
LED	Dual-color power and PoE LED
Power	Input: 100 – 240 V AC, 50 – 60 Hz Power consumption: 35 watts (maximum)
Environmental	Plastic housing Dimensions: 111 (L) x 57 (W) x 33 (H) mm / 4.37 (L) x 2.24 (W) x 1.3 (H) in. Net weight: 141 g (0.31 lbs.) Gross weight: 358 g (0.79 lbs.) Operating temperature: 0 – 50°C (32 – 122°F) Operating humidity: 5 – 90% RH, non-condensing Storage temperature: -20 – 80°C (-4 – 176°F)
